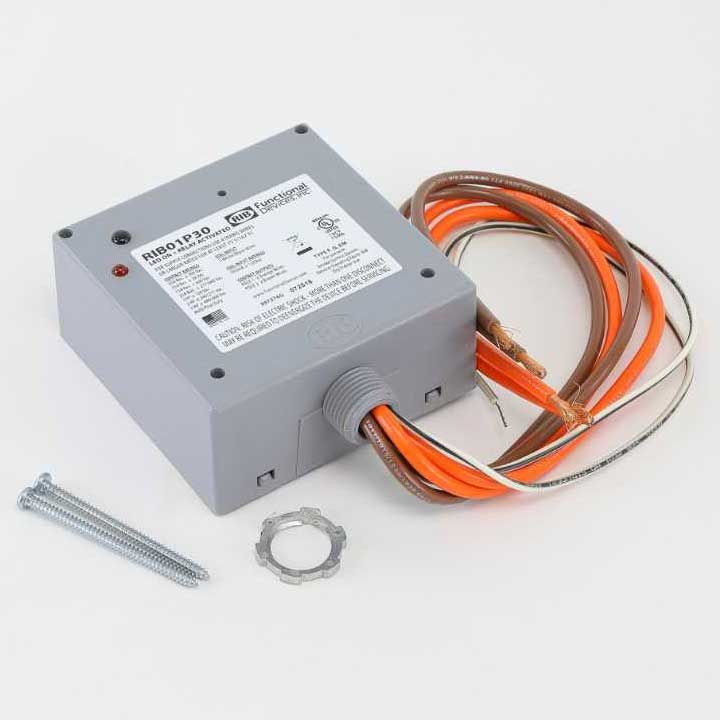

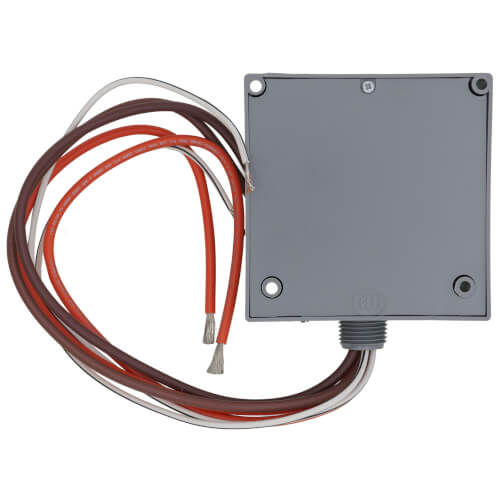

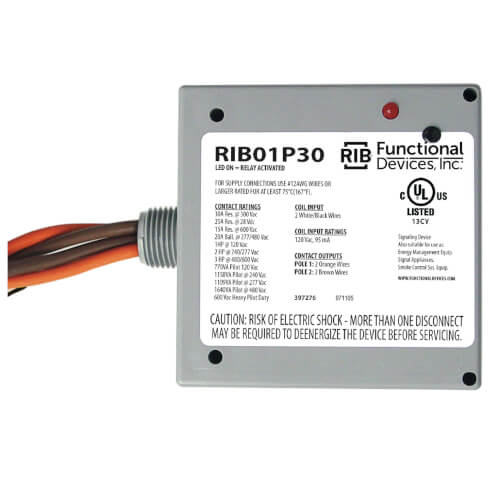

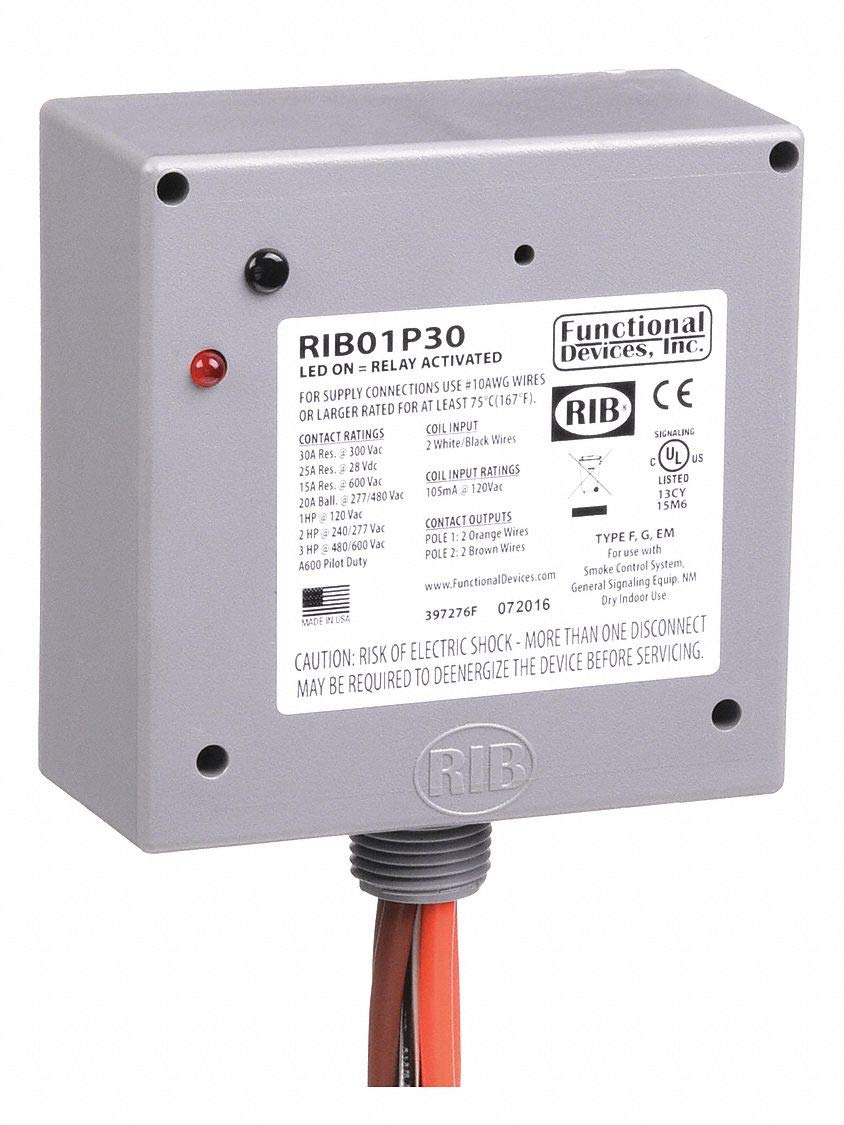

Functional Devices RIB01P30 DPST Enclosed Pre-Wired Relay 30 Amp With 120vac Coil

Product Description

The Functional Devices RIB01P30 DPST Enclosed Pre-Wired Relay is built for industrial applications, offering a 30 amp current rating and 120vac coil voltage. It is designed with a metal enclosure and high-quality contacts, making it suitable for various environments.

• 30 amp current rating
• DPST contact configuration
• 120vac coil voltage

Product Highlights

This relay is ideal for industrial automation, control systems, and power distribution. It operates within a temperature range of -40 to 85 degrees Celsius and has a lifespan of up to 100,000 operations, providing reliable performance over time.

Product Information

Standard Information

• MPN: RIB01P30
• Brand: Functional Devices
• Contact Form: DPST

Technical Specifications

• Coil Voltage: 120VAC
• Current Rating: 30A @ 300VAC, 15A @ 600VAC, 20A @ 28VDC
• Switch Type: DPST
• Contact Material: Silver Alloy
• Dimensions: 4 inches high x 4 inches wide x 1.8 inches deep
• Operating Temperature Range: -40 to 85 degrees Celsius
• Indicators: LED
• Approved Standards: UL Listed, CUL, CE, Cus
