Product Information

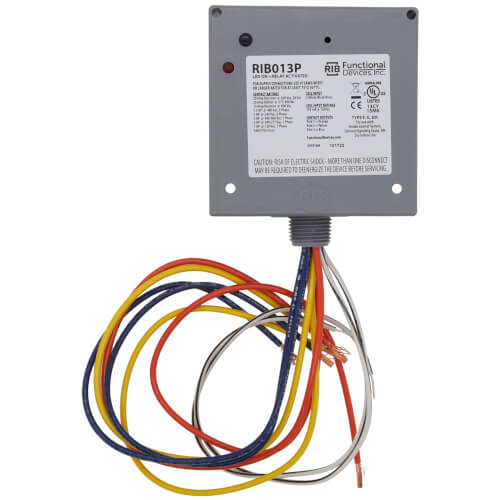

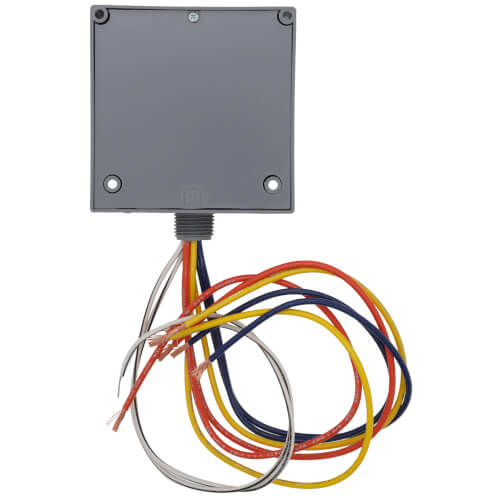

Ready to install and easy to mount, these prewired, general purpose relays can be used for controlling high-voltage appliances with low-voltage signals, such as exhaust fans, vacuums, and motors. Features include LED indicators and 16" leads. The multi-voltage coil inputs enable 1 relay to replace many different types of relays. The NEMA 1 enclosures have 1/2" NPT nipples. UL and C-UL Listed and CE Certified.
Specifications:
• Item: Relay Prewired Relay
• Application: Prewired Relay Power
• Coil Volts: 120V AC
• AC Contact Rating: 15A @ 600V; 20A @ 300V
• DC Contact Rating: 20A @ 28V
• Contact Form: 3PST-NO
• Mounting: 1/2 in Nipple; Surface
• Power Consumption: 18.0VA
• Body Depth: 1.8 in
• Body Height: 4 in
• Body Width: 4 in
• Overall Height: 4 in
• Contact Material: Silver Alloy
• Indicator Type: LED
• Lead Length: 16 in
• HP @ 120V: 1 hp
• HP @ 240V: 2 hp
• Electrical Hz: 50 Hz; 60 Hz
• NEMA Enclosure Type: 1
• Response Time: 20 msec
• Features: Enclosed Coil; Screw Terminals and Silver Alloy Contacts
• Standards: CE; CUL; Cus; UL Listed
• UNSPSC: 39121515
• Country of Origin: USA (subject to change)
