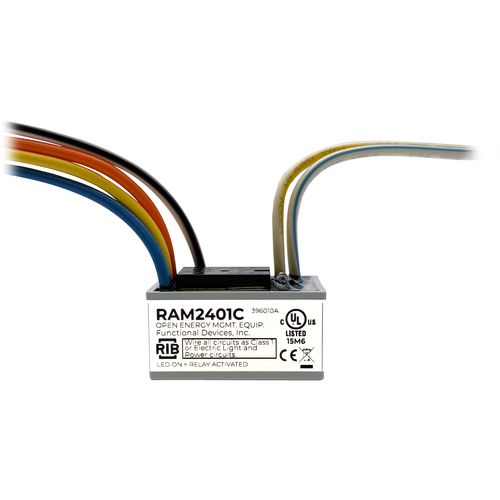

Functional Devices RAM2401C Encapsulated Control Relay 10 Amp SPDT with 24 VAC/DC/120 VAC Coil

Product Description

The FUNCTIONAL DEVICES RAM2401C is an encapsulated control relay featuring one SPDT continuous duty coil. It has an expected relay life of 10 million cycles minimum (mechanical) and an operating temperature range of -30 to 104°F. The relay includes an LED status indicator and 12", 600V rated wires.

• One (1) SPDT continuous duty coil
• Operating temperature: -30 to 104°F
• Approvals: UL Listed, UL916, C-UL Canada, CE, RoHS

Product Highlights

Encapsulated relay with long life, broad temperature range and multiple certifications.

Product Information

Standard Information

• Brand: FUNCTIONAL DEVICES
• Manufacturer Part Number: RAM2401C
• Country of Origin: US

Technical Specifications

• Resistive: 10 A
• Voltage: 24 VAC/DC; 120V
• Type: SPDT
• Product Type: Relay
• Contact: SPDT
• Number of Relays: 1
• Coil Voltage: 120 VAC
• Expected Relay Life: 10 million cycles minimum mechanical
• Operating Temperature: -30 to 104 °F
• Humidity Range: 5 to 95% (noncondensing)
• Operate Time: 8ms
• Relay Status: LED On = Activated
• Wires: 12”, 600V Rated
• Brand: Functional Devices
• Coil: 24VAC/DC
• Enclosed: Encapsulated
• Track Mounted: No
