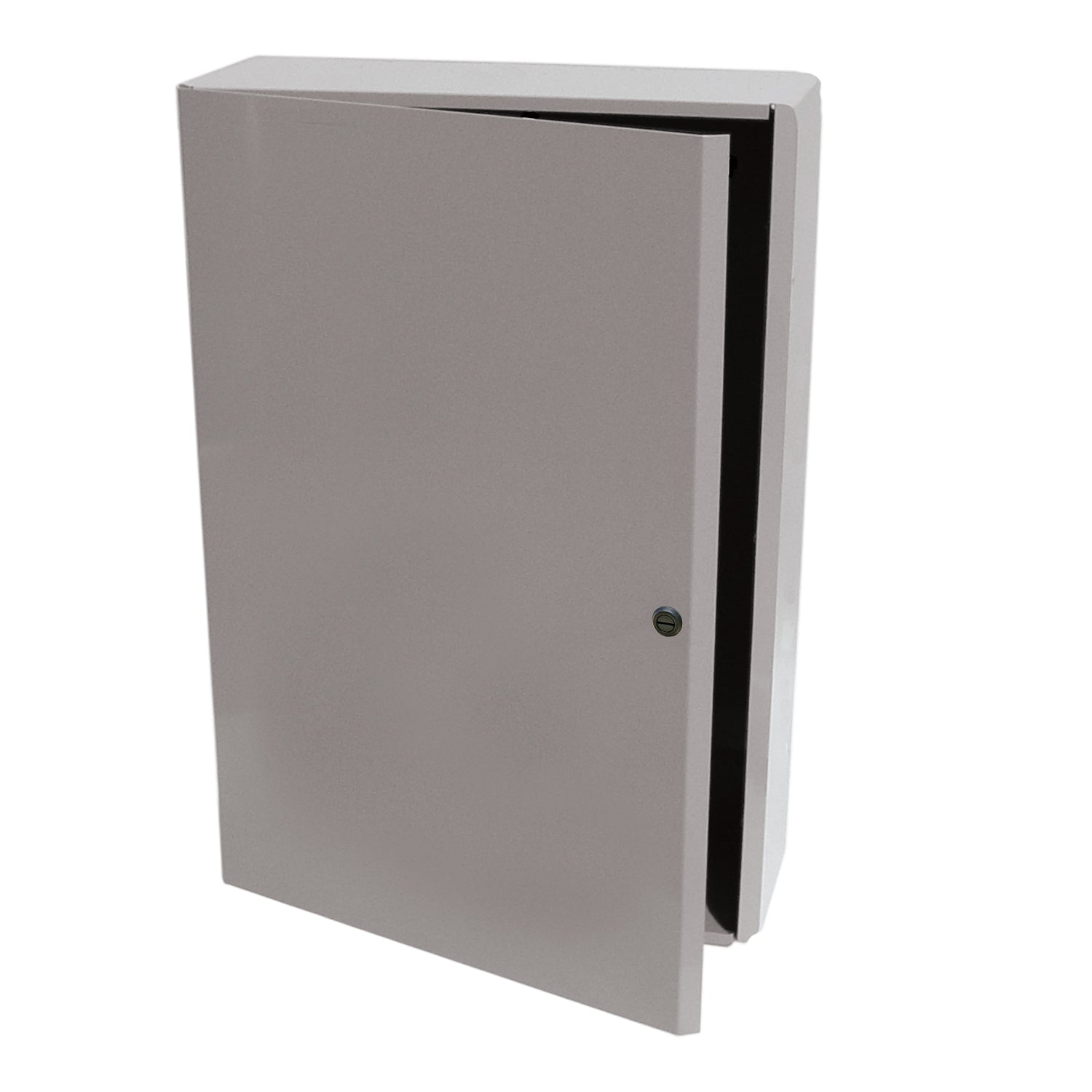

Functional Devices mh5803l Nema 1 Metal Housing with Subpanel

Product Description

The FUNCTIONAL DEVICES mh5803l is a NEMA 1 metal enclosure housing designed for indoor electrical and control system installations. Measuring 36 inches high by 25 inches wide by 9.5 inches deep, it provides substantial interior space for mounting control boards, relays, transformers, and associated wiring. The enclosure ships with a subpanel included and features a coin latch closure for secure, tool-accessible access. It carries UL Listed approval, making it suitable for use in commercial and light industrial building automation and HVAC control panel applications. Licensed electricians and HVAC controls technicians are the primary installers.

This enclosure is suited for indoor, non-hazardous locations where a NEMA 1 rating meets the environmental requirements of the installation. Its large interior footprint makes it a practical choice for centralized control panel builds in commercial HVAC systems, building automation retrofits, and multi-component electrical assemblies. The included subpanel provides a ready-to-use mounting surface, reducing field fabrication time. The grey finish is standard for this product line.

Key Features

• NEMA 1 rated for indoor, dry-location use
• Large 36 x 25 x 9.5 inch interior accommodates complex control assemblies
• Includes subpanel for immediate component mounting
• Coin latch provides secure closure with simple tool-free access
• UL Listed for compliance with standard electrical installation requirements
• Grey finish, consistent with commercial control panel conventions

Compatibility

Designed as an OEM-style metal enclosure for indoor HVAC, building automation, and electrical control panel applications requiring a NEMA 1 rated housing with subpanel.

Installation Notes

Installation should be performed by a licensed electrician or qualified controls technician in accordance with the NEC and applicable local codes. De-energize all circuits before working inside the enclosure. Ensure the mounting surface is plumb and capable of supporting the weight of the enclosure and all installed components. NEMA 1 enclosures are rated for indoor dry locations only and must not be used in wet, damp, or corrosive environments.

Technical Specifications

• NEMA Rating: NEMA 1
• Height: 36 inches
• Width: 25 inches
• Depth: 9.5 inches
• Color: Grey
• Closure Type: Coin Latch
• Includes: Subpanel
• Approvals: UL Listed

Standard Information

• Brand: FUNCTIONAL DEVICES
• Manufacturer Part Number: mh5803l
