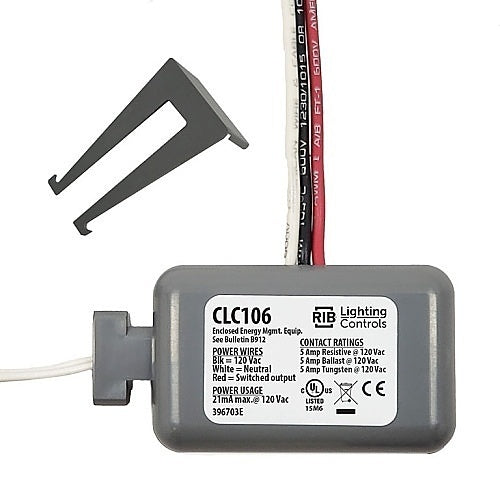

Functional Devices CLC106 Closet Light Controller Relay, 5A SPST-N/O, 120VAC Power, Separated Class Magnetic Door Switch Input, NEMA Housing

Product Description

The Functional Devices CLC106 is a closet light controller relay designed for use with 5 Amp SPST-N/O circuits at 120VAC. It includes a separated class magnetic door switch input for enhanced functionality and comes in a NEMA-rated housing. This relay allows for efficient operation by activating closet lights based on door activity.

• Operates at 120VAC with a 5 Amp rating.
• Includes a magnetic door switch to control lighting.
• Meets NEMA standards for housing protection.

Product Highlights

Ideal for residential or commercial applications, the CLC106 seamlessly integrates with existing electrical setups, providing automatic lighting for closets and similar spaces.

Product Information

Standard Information

• Brand: Functional Devices
• Manufacturer Part Number: CLC106

Technical Specifications

• Relay Type: SPST-N/O Continuous Duty Coil
• Expected Relay Life: 10 million cycles minimum mechanical
• Operating Temperature: -30 to 140 degrees Fahrenheit
• Dimensions: 2.90 inches x 1.50 inches x 1.05 inches with retaining clip for 1/2 inch knockout
• Wires: 16 feet, 600 V rated for 120 VAC connections
• Leads on Magnetic Door Switch: 6 feet
• Approvals: UL Listed, UL916, C-UL, CE, RoHS
• Housing Rating: UL Accepted for Use in Plenum, NEMA 1
