Functional Devices PSMN500A 500 VA Power Supply 480/277/240/120 Vac to 24 Vac

Product Description

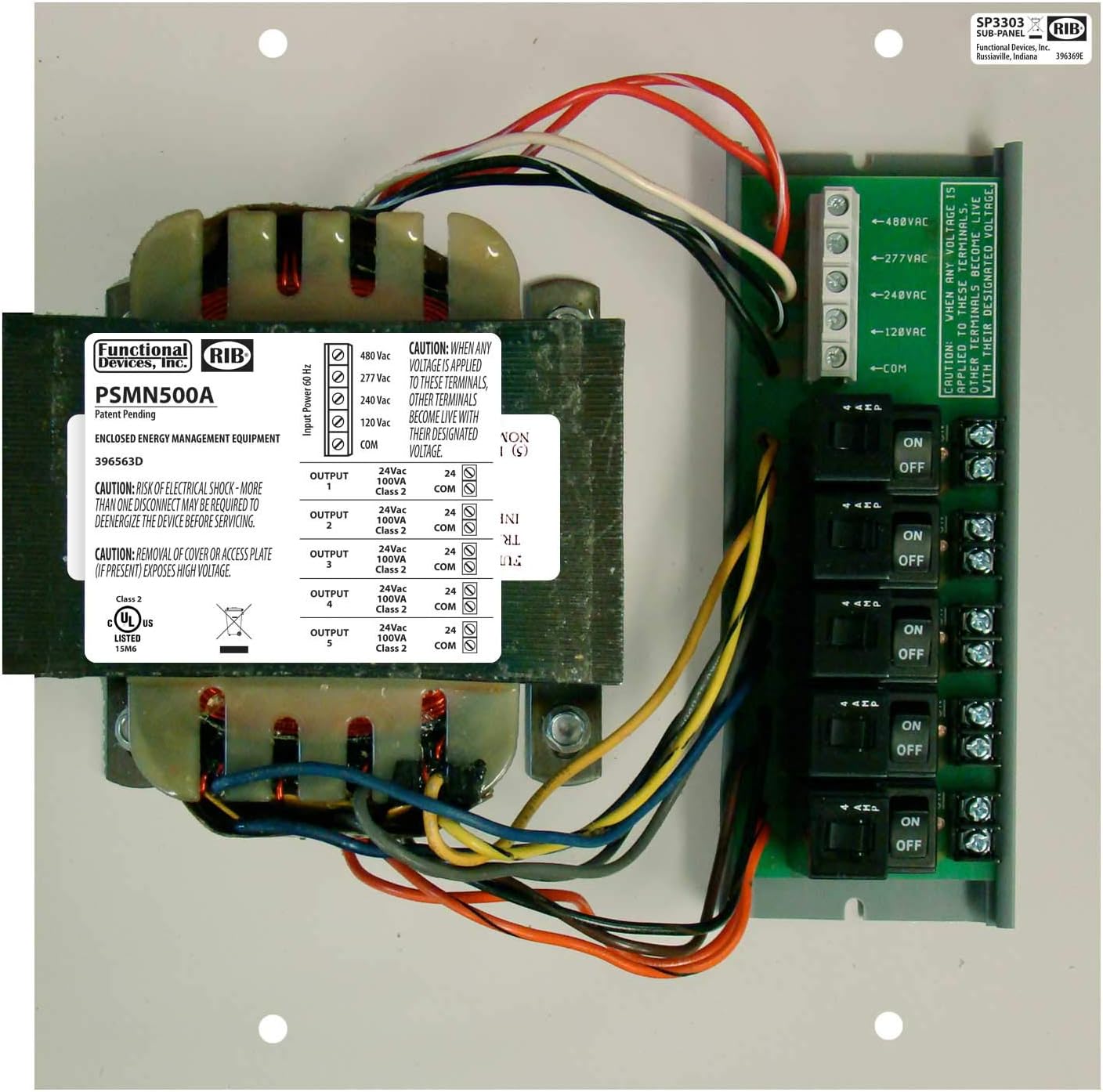

The Functional Devices PSMN500A is a robust 500 VA power supply designed to transform input voltages of 480/277/240/120 Vac to 24 Vac. It is equipped with five 100 VA Class 2 outputs, ensuring efficient energy distribution for multiple applications.

• Integrated with a NEMA1 metal enclosure for enhanced durability and safety.
• Features independent overcurrent protection with a circuit breaker for each output.
• LED indicators for monitoring the status and performance of each output.

Product Highlights

This power supply unit includes a finger-safe terminal design accommodating wires from 8-18 AWG and supports outputs up to 55C ambient temperature, making it ideal for demanding industrial environments.

Product Information

Standard Information

• Brand: Functional Devices
• MPN: PSMN500A

Technical Specifications

• Type: Internal Power Supply
• Input Voltage: 480/277/240/120 Vac
• Output Voltage: 24 Vac
• Enclosure Type: NEMA-1
• Terminals: 8-18 AWG
• Output Type: Class 2, Isolated
• Approvals: UL, C-UL, CE, RoHS
