Product Description

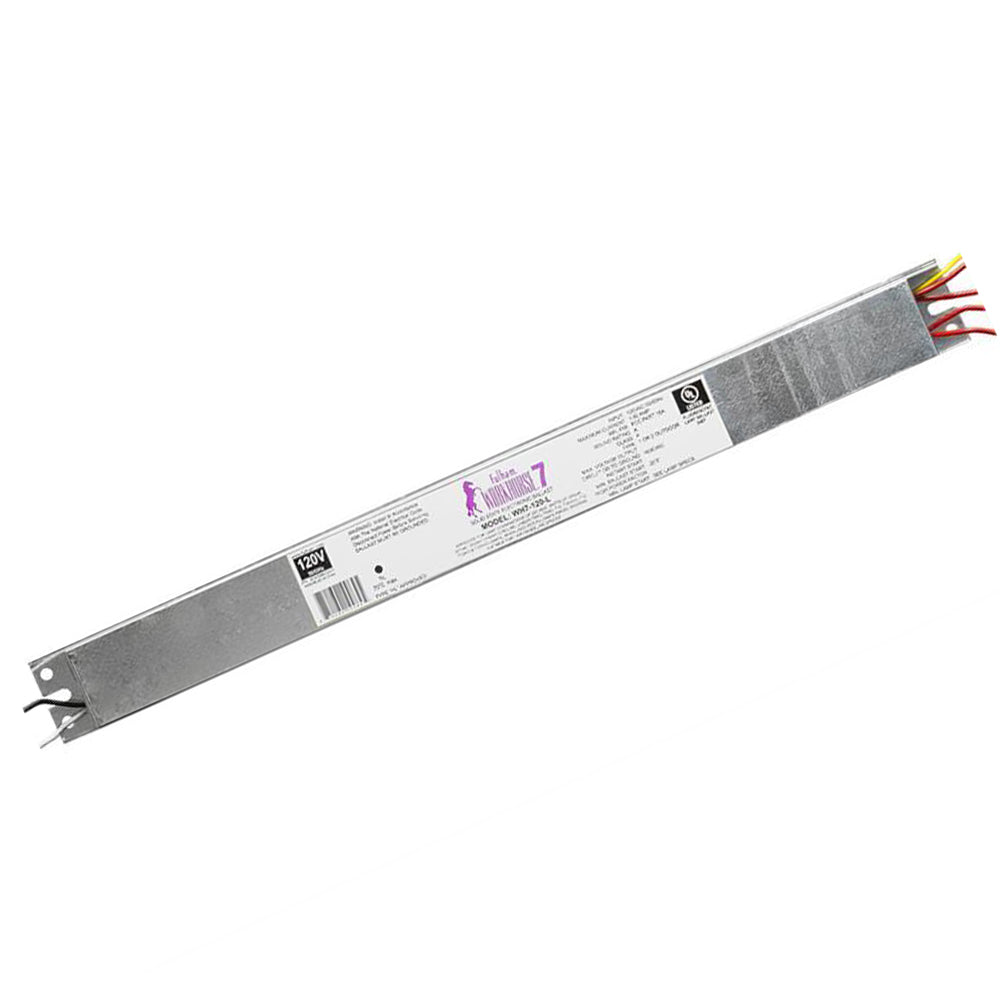

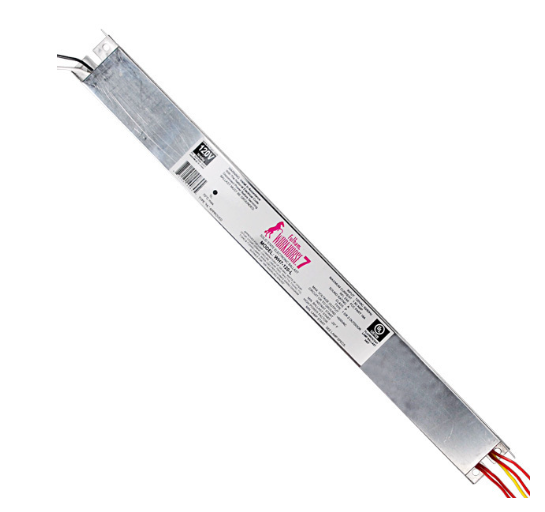

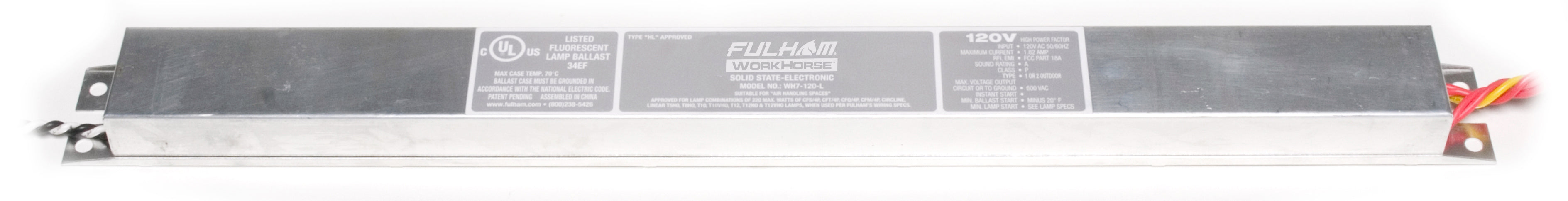

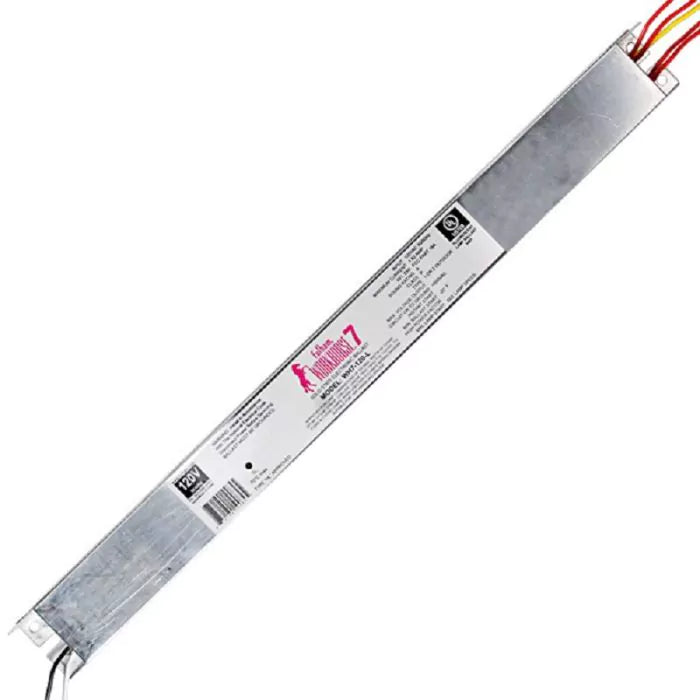

The FULHAM WH7-120-L Workhorse 7 is a versatile fluorescent electronic ballast with an instant start. Suitable for F96T12VHO and F36T12HO lamps, it operates at 120V. It is designed for commercial and residential applications. The ballast features a high power factor and is UL approved.
- Fluorescent Electronic Ballast
- Instant Start
- Suitable for F96T12VHO and F36T12HO Lamps
- UL Approved
Product Highlights
This Fulham Workhorse 7 ballast ensures reliable and energy-efficient lighting for various fluorescent lamp configurations.
Product Information
Standard Information
-
Brand: FULHAM
-
Manufacturer Part Number: WH7-120-L
-
Country of Origin: China

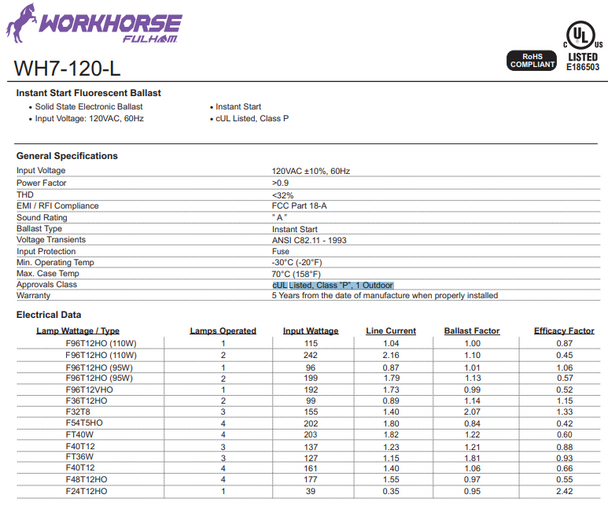

Technical Specifications
-
Starting Type: Instant
-
Circuit Type: HPF
-
Lamp Type: F96T12VHO, F36T12HO
-
Number of Lamps: 1/2
-
Input Voltage: 120 V
-
Input Current: 1.73/0.89 Ampere
-
Input Power: 192/99 W
-
Frequency Rating: 50/60 Hz
-
Power Factor: 0.9
-
Ballast Factor: 0.99/1.14
-
Maximum THD: 32 Percent
-
Approval: UL
-
Input Protection Type: Fuse
-
Open Circuit Voltage: 600 V
-
Maximum Case Temperature: 70 Deg C
-
Application: Commercial, Residential
-
Enclosure: NEMA 1
-
Minimum Starting Temperature: -20 deg F
-
Standards/Approvals: ARRA Compliant|ANSI C82.11|FCC Certified|UL Listed
-
Thermal Protection: Class P
-
Total Harmonic Distortion: <32 %
-
Type: High Frequency Versatile
-
Lamp: (1/2) F96T12HO, (1) F96T5VHO, (2) F36T5HO, (4) F54T5HO, (4) F48T12HO, (1) F24T12HO, (4) FT40W, (3/4) F40T12
-
Start Method: Instant Start
-
Certifications: Class "P", Type 1 or 2 Outdoor
-
Voltage: 120 Volt
-
Sound Rating: "A"
-
Bulb Type: F96T12VHO
-
Minimum Start Temperature: -20'F
-
Mount: Mounting Feet
-
Order Code: WH7-120-L
-
Electronic: Electronic
-
Height (in.): 1.02
-
Length (in.): 19.24
-
Width (in): 1.72
