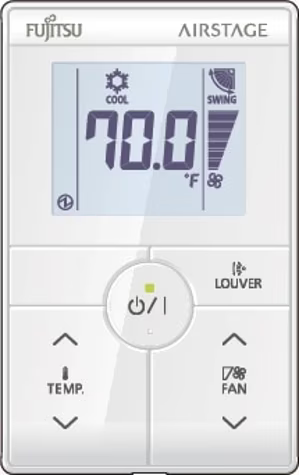

Fujitsu UTY-RHRY Simple Remote Controller

Product Description

The Fujitsu UTY-RHRY is a simple wired remote controller with a backlit display and built-in temperature sensor. It concentrates on basic functions such as start/stop, fan control, and temperature settings, with set point adjustments in 1 F increments. Up to 16 indoor units can be controlled. This controller does not allow mode changing.

• Built-in room temperature sensor
• Temperature adjustment in 1 F increments
• Backlit large LCD screen
• Can connect to a maximum of 16 indoor units

Product Highlights

This compact remote controller is easy to operate and ideal for use in hotels or offices. It features a clean look, large LCD screen, and easy-to-use control buttons.

Product Information

Standard Information

• Brand: FUJITSU
• Manufacturer Part Number: UTY-RHRY
• Country of Origin: CHINA

Technical Specifications

• Power Supply DC (V): 12
• Max Power Consumption (W): .3
• Wire Type: non-polar 2 core shielded twisted pair cable
• Operating Temperature Range: 32-114 F
• Storage Temperature Range: 4-158 F
• Dimensions Net (HxWxD): 4 3/4" x 2 15/16" x 3/4"
• Model Name: UTY-RHRY (Without operation mode)
• Max. number of controllable units: 16 indoor units
• Height: 120 mm
• Width: 75 mm
• Depth: 19.4 mm
• Power Supply: 12 V DC
• MPN: UTY-RHRY
• Type: Remote Controller
• Compatibility: AIRSTAGE VRF Systems
• Suitable For Use With: Model ASUG12LZAS Indoor Units, Model AOUG12LZAS1 Outdoor Units, Model 12LZAS1 Inverter Driven Heat Pump Systems
