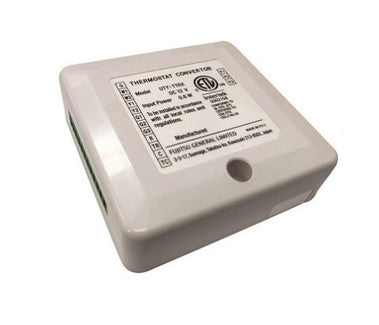

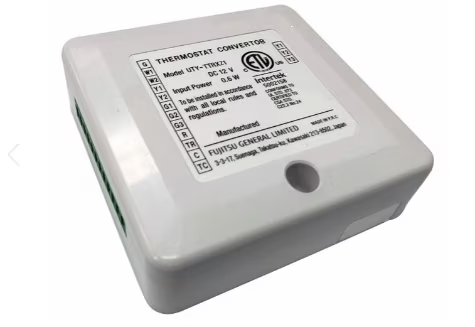

Fujitsu General America TTRXZ1-KIT Thermostat Interface Converter

Product Description

The Fujitsu General America TTRXZ1-KIT is a thermostat interface converter specifically made for Fujitsu Halcyon mini-split and Airstage VRF heating and cooling systems. It allows third-party thermostats with 24Vac outputs to control Fujitsu indoor units. The device supports essential functions such as on/off control, operation modes, room temperature settings, and fan speed adjustments. LED indicators are included to show error notifications. This unit can handle up to sixteen indoor units simultaneously, making it ideal for large setups.

• Connects Fujitsu systems to various third-party thermostats.
• Supports operation of up to sixteen indoor units in a group setting.
• Includes system control options, such as on/off, mode, temperature, and fan speed.

Product Highlights

This thermostat interface provides flexibility in managing HVAC systems efficiently, making it suitable for both residential and commercial applications.

Product Information

Standard Information

• Brand: Fujitsu General America
• Country of Origin: China

Technical Specifications

• Device Type: Thermostat Adapter Interface
• Compatible Brands: Honeywell, Nest, EcoBee
• Input Voltage: 12 VDC
• Power Consumption: 0.6 W
• Dimensions: Three point four four inches x three point four four inches x one point one inches
• Weight: 0.2 lb
• Operating Temperature: 32 degF to 114 degF
• Storage Temperature: 14 degF to 140 degF
• Humidity Range: 0-95%
