Fujitsu General America AOUA72TLBV Aoua72tlbv 72MBH VRF Heat

Brand: FUJITSU GENERAL AMERICA
SKU: AOUA72TLBV
Availability: Out Of Stock
Call for Pricing Call for pricing (215) 326-9845
Call for Pricing Call for pricing (215) 326-9845
LTL Delivery

This product weighs 597 lb each and will be shipped via LTL carrier. A lift gate option will be added free of charge for your convenience.

HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The FUJITSU GENERAL AMERICA AOUA72TLBV is a 72MBH VRF heat unit. Designed for commercial applications, this outdoor unit from the VR-II series of Fujitsu AIRSTAGE VRF systems features high operating energy efficiency and an all inverter compressor. It also offers sophisticated operation control and flexible piping connection. The unit operates on a power source of 208 / 230 V.

  • High Operating Energy Efficiency
  • Space saving combination
  • Energy efficiency combination
  • All inverter compressor

Product Highlights

This VRF heat unit is designed for commercial applications, offering energy efficiency and flexible installation.

Product Information

Standard Information

  • Brand: FUJITSU GENERAL AMERICA
  • Manufacturer Part Number: AOUA72TLBV
Technical Specifications
MPN
AOUA72TLBV
Brand
FUJITSU GENERAL AMERICA
Rating Capacity Range
6
Maximum Connectable Indoor Unit
14
Power source Phase
3-phase
Power source Voltage
208 / 230 V
Power source Frequency
60 Hz
Cooling Capacity
72,000 BTU/h
Cooling Capacity kW
21.1 kW
Heating Capacity
81,000 BTU/h
Heating Capacity kW
23.7 kW
Cooling Input Power
5.31 kW
Heating Input Power
5.35 kW
Cooling EER (Non-Ducted/Ducted)
12.5 / 12.3 Btu/hW
Cooling IEER (Non-Ducted/Ducted)
24.1 / 20.0 Btu/hW
Heating COP (Non-Ducted/Ducted)
4.06 / 3.64 W/W
SCHE (Non-Ducted/Ducted)
24.0 / 30.1 Btu/hW
Air Flow Rate
6,533 CFM (11,100 m³/h)
Cooling Sound Pressure Level
57 dB(A)
Heating Sound Pressure Level
58 dB(A)
Maximum external static pressure
0.32 in.WG (80 Pa)
Compressor motor output
7.5 kW

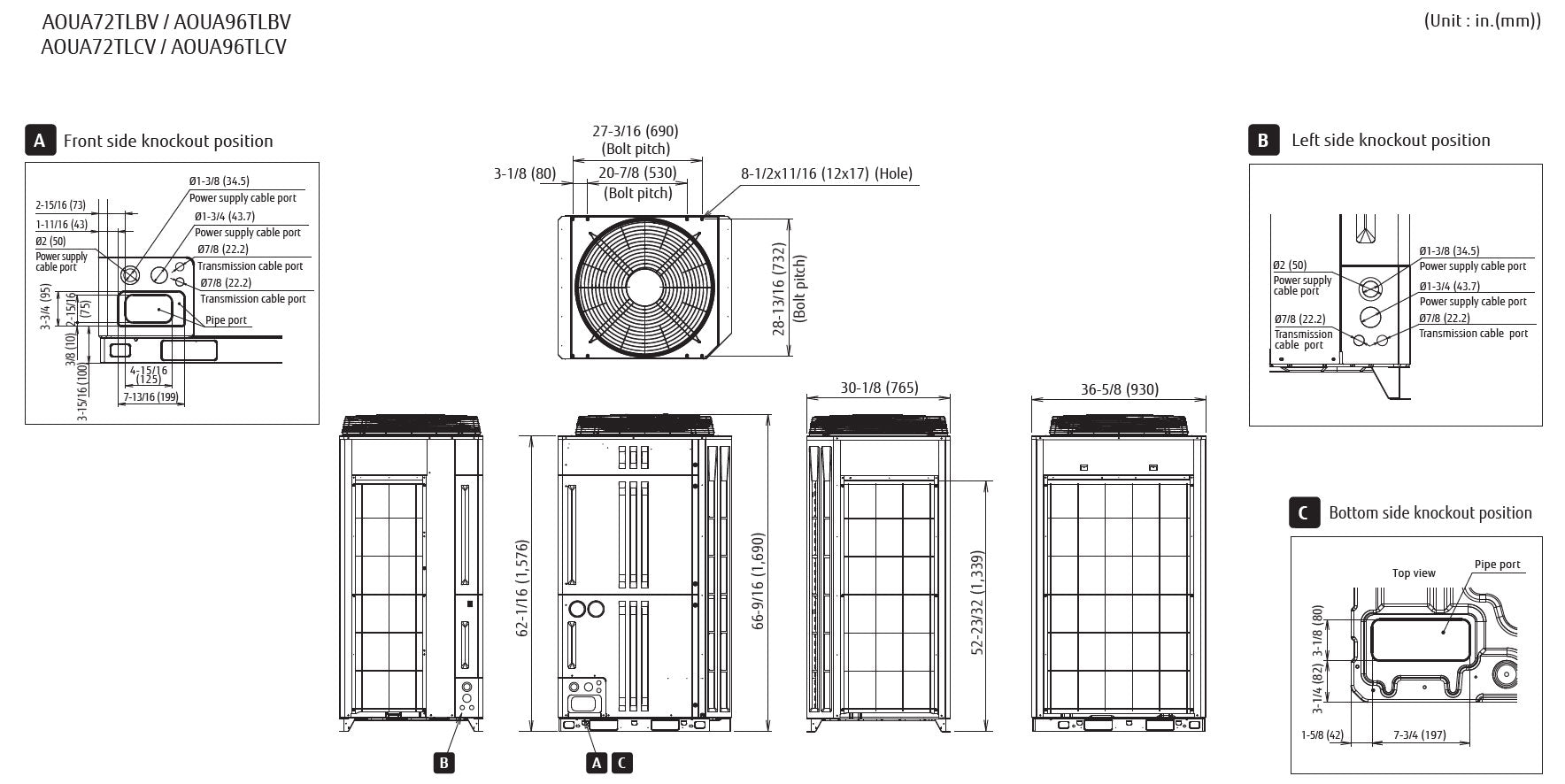

Net Dimensions Height
66-9/16 inch (1,690 mm)
Net Dimensions Width
36-5/8 inch (930 mm)
Net Dimensions Depth
30-1/8 inch (765 mm)
Net Weight
597 lbs (271 kg)
Refrigerant Type
R410A
Refrigerant Charge
26.01 lbs (11.8 kg)
Connection Pipe Diameter Liquid
1/2 inch (12.70 mm)
Connection Pipe Diameter Discharge Gas
5/8 inch (15.88 mm)
Connection Pipe Diameter Suction Gas
7/8 inch (22.22 mm)
Cooling Operation Range
14 to 115 °FDB (-10 to 46 °CDB)
Heating Operation Range
-4 to 70 °FDB (-20 to 21 °CDB)
