Fujitsu AUUA9TLAV2 Compact Cassette Indoor Unit 9k Cool/10.9k Heat 230/1

Product Description

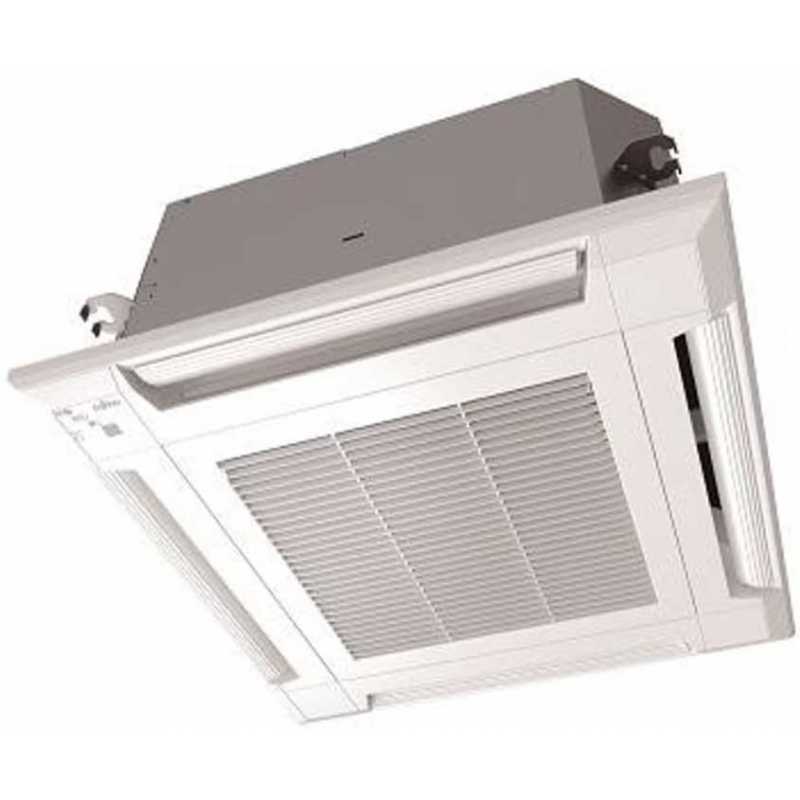

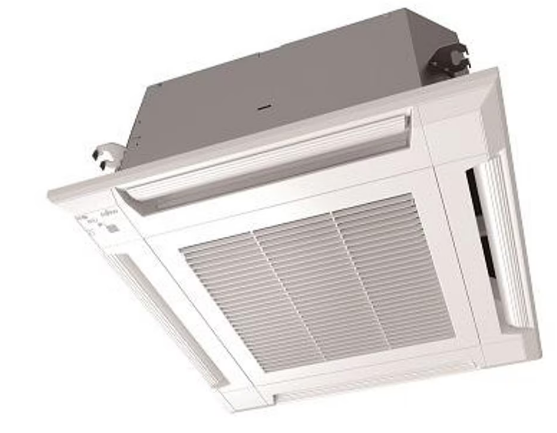

The Fujitsu AUUA9TLAV2 compact cassette indoor unit is designed for heat-recovery/heat pump VRF systems. This unit offers efficient climate control by extracting heat from rooms or zones that require cooling and transferring it to other rooms or zones that require heating. It fits in place of a standard 24 inch square ceiling tile.

• Two stage turbo fan design with dual airflow for even air distribution.
• Optimized fan blade design allows for low noise and high performance.
• Compatible with two wire remotes only.

Product Highlights

This compact cassette indoor unit provides both heating and cooling, and is designed for easy installation and maintenance in commercial buildings.

Product Information

Standard Information

• Brand: FUJITSU
• Manufacturer Part Number: AUUA9TLAV2
• Country of Origin: CN

Technical Specifications

• Nominal cooling: 9500
• Nominal Heating: 10900
• Electrical Designation: 1-60-208/230
• Refrigerant: R410A
• Suction Line Size: 3/8
• Liquid Line Size: 1/4
• Length (inches): 22.4375
• Height (inches): 9.625
• Width (inches): 22.4375
• Voltage Rating: 208-240 VAC
• Heating Capacity: 10.9 Kbtu/hr
• Cooling Capacity: 9.5 Kbtu/hr
• Series: AUUA
• Domestic/Import: Import
• Flow Rate: 206, 265, 324 cfm
• Nominal Capacity: 9500 Btu/hr
• Power Source: 208 to 230 V, 1 ph, 60 Hz
• Sound Level: 25, 30, 35 dBA
• Type: Compact Casette
• Brand: Airstage
• Configuration: Ceiling Recessed
• Building Type: Commercial
• Compressor Speed: Inverter
