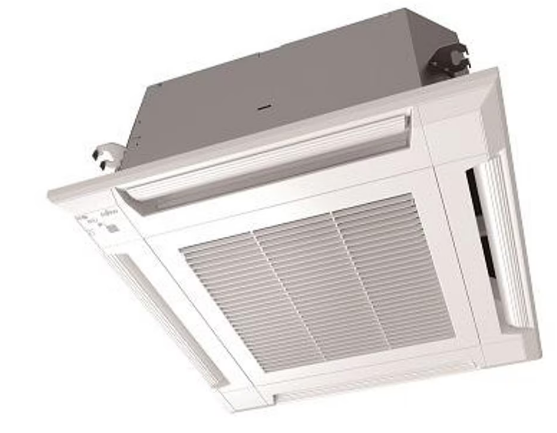

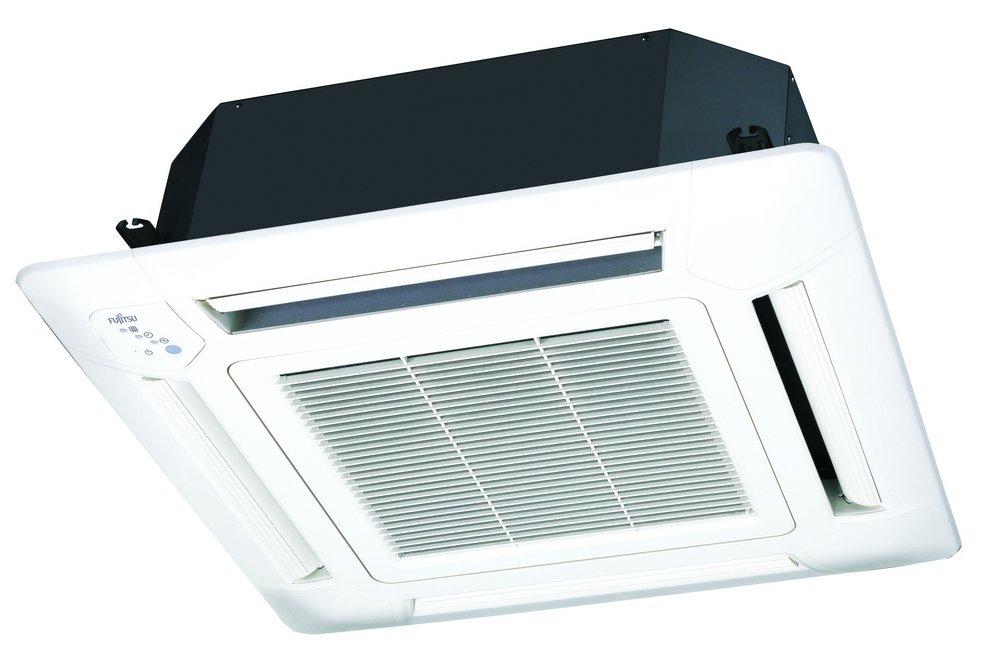

Fujitsu AUUA18TLAV2 Airstage 1-1/2 Ton VRF Heat Pump Compact Cassette Indoor Unit

Product Description

The Fujitsu AUUA18TLAV2 Airstage VRF Heat Pump is a 1-1/2 ton compact cassette indoor unit. Airstage VR-II systems offer simultaneous cooling and heating operation using variable refrigerant flow (VRF) technology. This system features a two-stage turbo fan design with dual airflow for even air distribution and an optimized fan blade design for low noise and high performance.

• 1-1/2 ton cooling capacity with 20,000 BTU's heating capacity
• Two stage turbo fan design
• Optimized fan blade design for low noise and high performance

Product Highlights

This Fujitsu Airstage VRF heat pump offers efficient climate control, extracting heat from rooms needing cooling and transferring it to rooms needing heating, optimizing energy efficiency.

Product Information

Standard Information

• Brand: FUJITSU
• Manufacturer Part Number: AUUA18TLAV2
• Country of Origin: CN

Technical Specifications

• Nominal Cooling: 18000
• Nominal Heating: 20000
• Electrical Designation: 1-60-208/230
• Refrigerant: R410A
• Suction Line Size: 1/2
• Liquid Line Size: 1/4
• Configuration: Ceiling Recessed
• Building Type: Commercial
• Compressor Speed: Inverter
• BTU Cooling Rating: 18000 Btu/h
• BTU Heat Rating: 20000 Btu/h
• Collection: Airstage™ VR-II
• Decibel Rating (dB): 41 dB
• Max CFM: 418 cfm
• Phase: Single Phase
• Volts: 208/230V
• Watts: 36 W
• Series: J Series
• Voltage Rating: 208/230 V
• Amperage Rating: 0.62 A
• Refrigerant Type: R-410A
• Frequency Rating: 60 Hz
• CFM Rating: 418 cfm
• Sound Level: 41 dBA
• Drive Type: Inverter
• Connection Type: Flared
• Fuse Rating: 15 A
• Temperature Rating: 64 to 88 deg F, 50 to 88 deg F
• Indoor/Outdoor: Indoor
• Heating Capacity: 20 Kbtu/hr
• Cooling Capacity: 18 Kbtu/hr
• Domestic/Import: Import
• Flow Rate: 235, 341, 418 cfm
• Nominal Capacity: 18000 Btu/hr
• Power Source: 208 to 230 V, 1 ph, 60 Hz
• Type: Compact Casette
• Brand: Airstage
