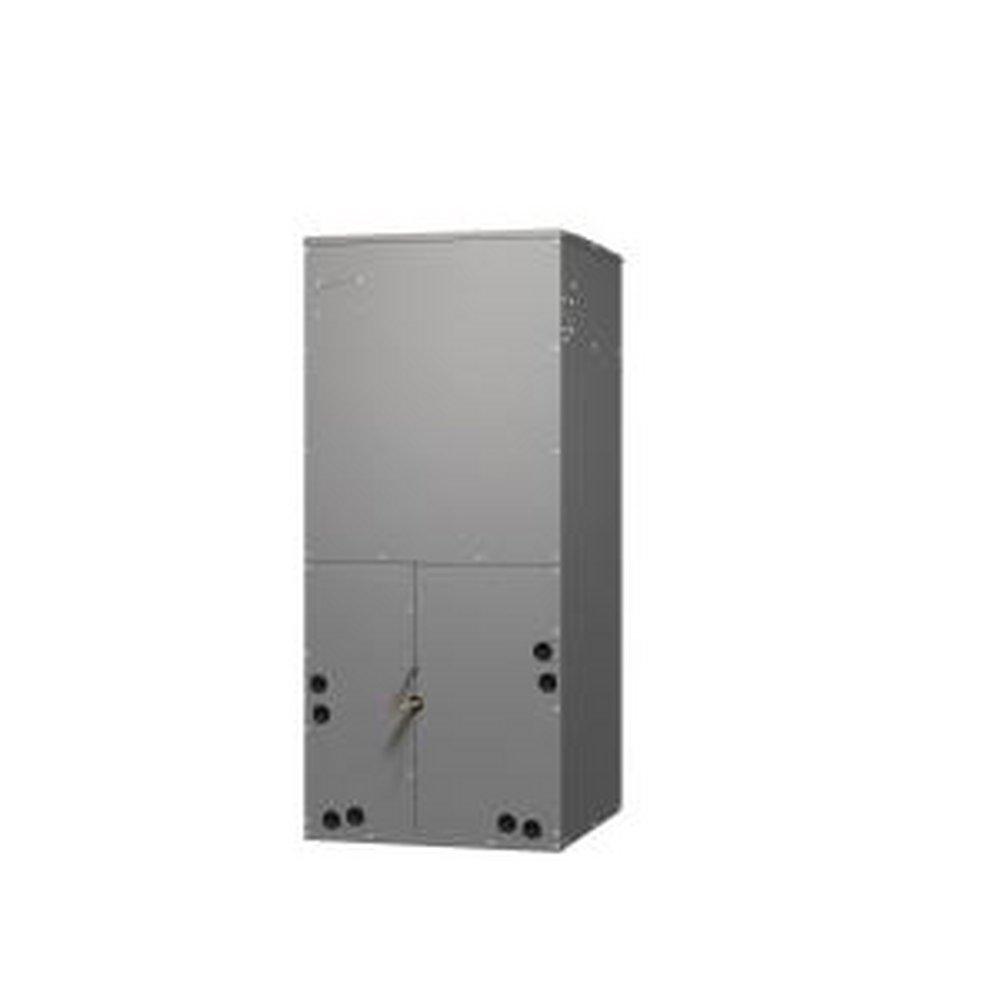

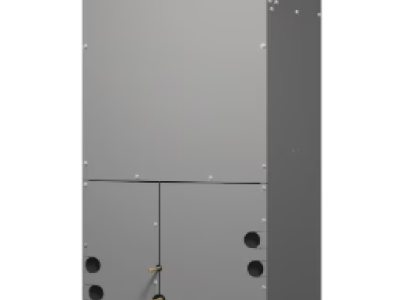

Fujitsu ARUX36TLAV2 Airstage 3 Ton Multi-Position Air Handler

Product Description

The Fujitsu ARUX36TLAV2 Airstage air handler offers a 3-ton multi-position configuration. It features a modular design for upflow, horizontal right, or horizontal left configurations. This VRF system indoor unit provides airflow up to 1700 CFM and supports static pressure up to 0.8 in W.C. Designed for use with VR-II systems, it allows simultaneous cooling and heating.

• Modular design supports up, left, and right configurations.
• Indoor unit sound levels as low as 33 dB(A).
• Static pressure of up to 0.8 in W.C.

Product Highlights

The Fujitsu Airstage VRF air handler offers flexible installation and efficient climate control for commercial applications.

Product Information

Standard Information

• Brand: FUJITSU
• Manufacturer Part Number: ARUX36TLAV2

Technical Specifications

• Configuration: Multiposition
• Nominal Capacity (Tons): 3
• Electrical Designation: 1-60-208/240
• Refrigerant: R410A
• Heating: Heat Pump
• Suction Line Size: 5/8
• Liquid Line Size: 3/8

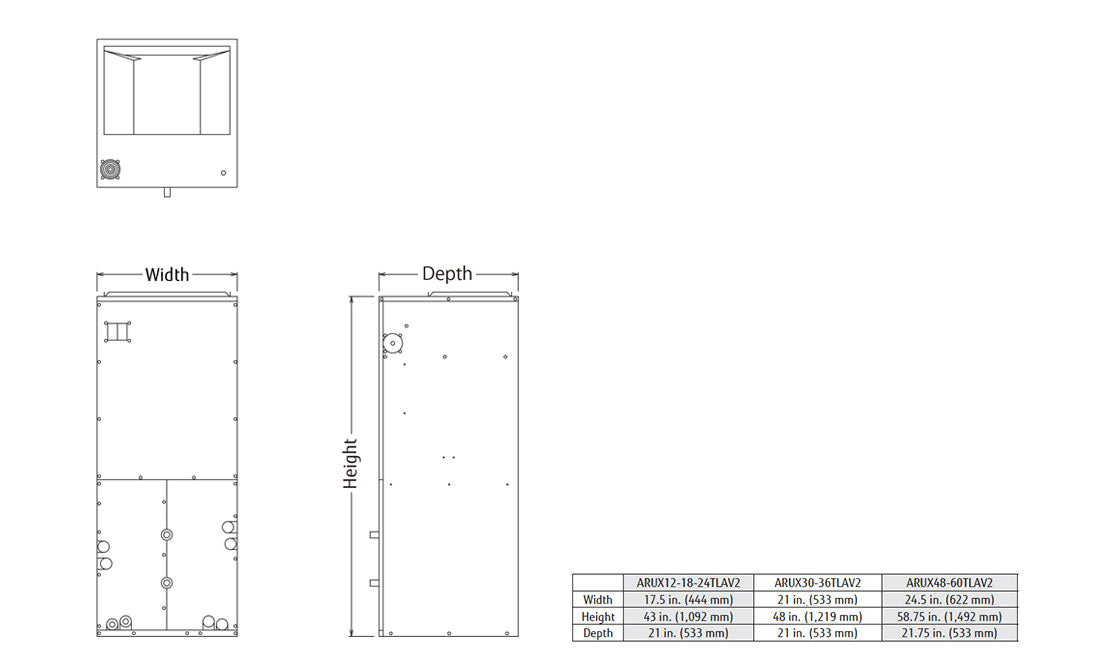

• Length (inches): 21
• Height (inches): 48
• Width (inches): 21
• Building Type: Commercial
• Airflow: Up to 1700 CFM
