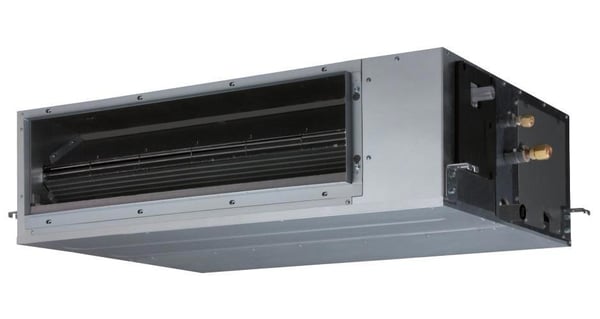

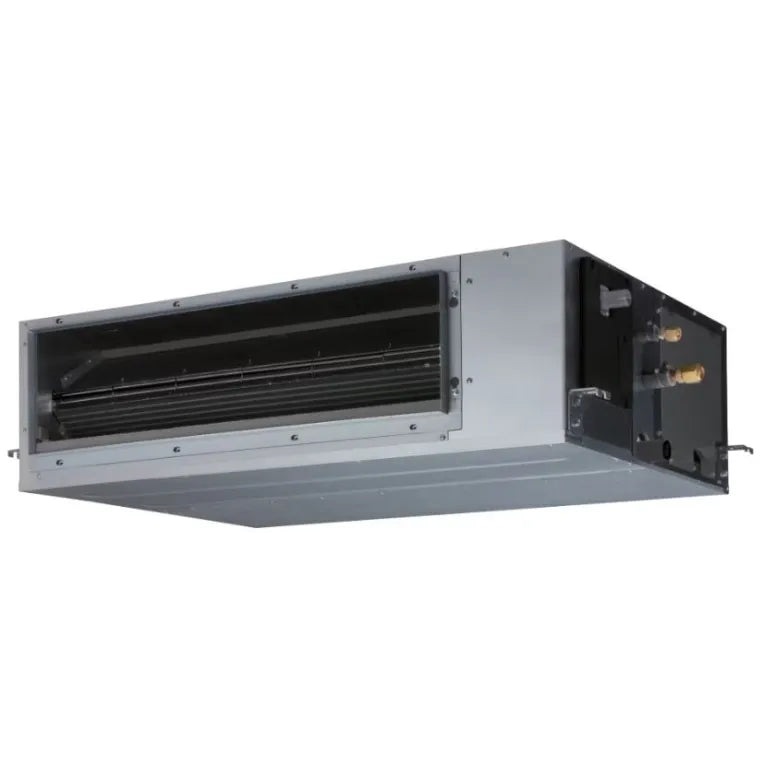

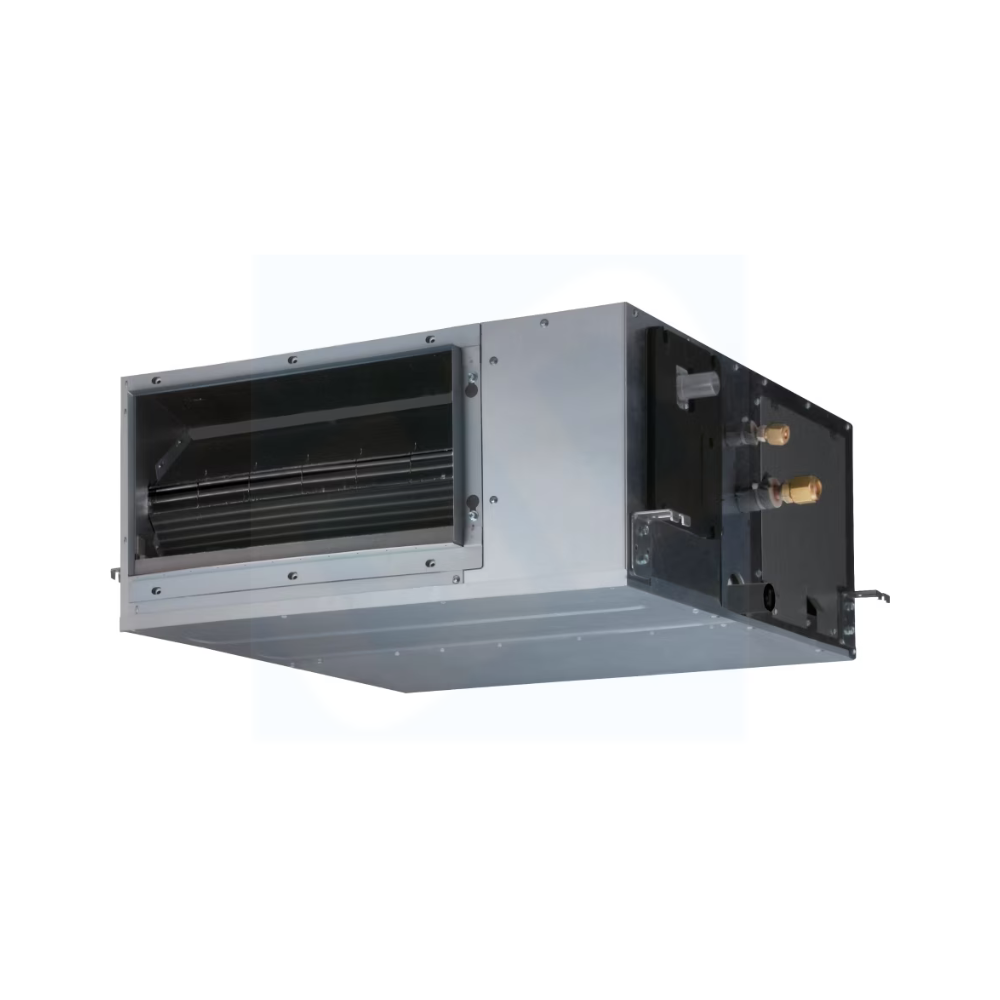

Fujitsu ARUH18KUAS 18,000 BTU Mid Static Ducted Indoor Unit - R32

Product Description

The Fujitsu ARUH18KUAS is an 18,000 BTU R-32 medium-static-duct indoor unit for multi-zone systems. Compact and quiet, it offers flexible installation and reliable performance for small to mid-size spaces. Features include a built-in drain pump, ProCore coils, and automatic static pressure detection for optimal airflow and system efficiency.

• Mid Static Duct indoor unit delivering superior comfort and energy-efficient performance
• Indoor unit with ProCoreTM (High Corrosion Resistant Copper) coils for long-lasting protection against corrosion
• Whisper-quiet operation with sound levels as low as 24dB

Product Highlights

This Fujitsu indoor unit provides efficient cooling and heating with quiet operation and flexible installation options.

Product Information

Standard Information

• Brand: FUJITSU
• Manufacturer Part Number: ARUH18KUAS

Technical Specifications

• Unit Type: Indoor Unit
• Product Line: KUAS Series
• Operating Mode: Cooling & Heating
• Number of Zones: Multi
• System Capacity: 18,000 BTU
• Line Set Size: 1/4" x 1/2"
• WiFi Enabled: Yes
• WiFi Built In: No
• Indoor Unit: ARUH18KUAS
• Nominal Capacity: 1.5 ton
• Heating Operating Range: 64 - 90 F
• Cooling Operating Range: 60 - 86 F
• Room Cooling/Heating Capacity: up to 750 sq ft
• Airflow Cooling CFM: 371-430-494-618
• Airflow Heating CFM: 371-430-494-618
• Noise Level dB(A), Cooling: 24-26-29-34
• Noise Level dB(A), Heating: 24-26-29-34
• BtuH Cooling: 18,000
• BtuH Heating: 21,600
• Refrigerant: R-32
• Remote Included: No
• Sound Pressure Cooling dBA: 34
• Sound Pressure Heating dBA: 34
• Style: Mid Static Ducted
• Suction Fitting: 1/2″
• System #: 18KUAS1R
• System Flex: Y
• Volts: 208/230
• Zone Type: Single
• COP Rating: 3.64
• EER Rating: 11.7
• Flow Rate: 618 cfm
• HSPF Rating: 10.3
• Material: Steel Sheet
• Power Source: 208/230 V, 60 Hz
• SEER Rating: 18.6
• Type: Mid-Static
• Cooling Capacity: 18000 Btu/hr
• Heating Capacity: 18000 Btu/hr
• Mounting Type: Duct
• Series: H-Series
• Sound Level: Cooling : 24 to 35 dB/ Heating : 24 to 35 dB
• Suction Line Size: 1/2 in
• Temperature Rating: Cooling : 64 to 90 deg F/Heating : 60 to 86 deg F
• Indoor/Outdoor: Indoor
• Voltage Rating: 208-240 VAC
• Manufacturer: Fujitsu General
