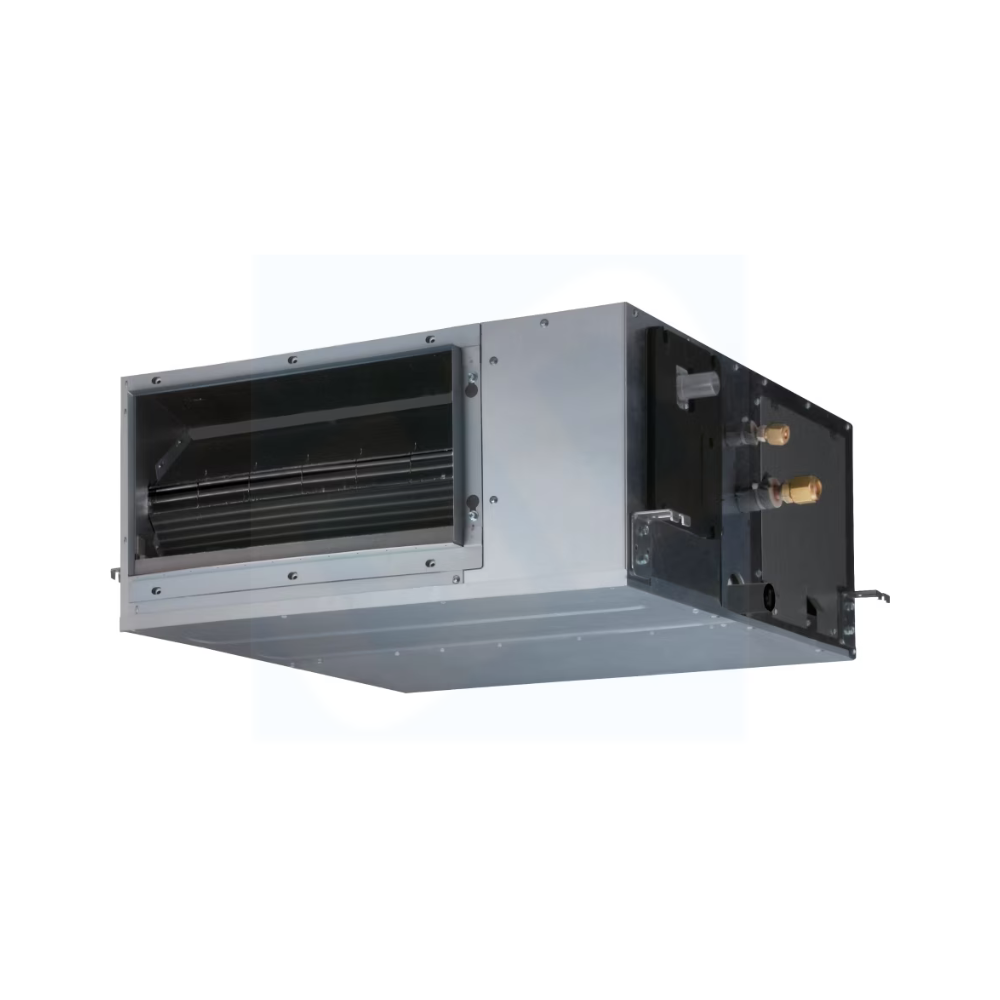

Fujitsu ARUH12KUAS 12,000 BTU Mid Static Ducted Indoor Unit

Product Description

The Fujitsu ARUH12KUAS is a 12,000 BTU R-32 medium-static-duct indoor unit designed for multi-zone systems. Compact and quiet, it provides flexible installation options. It features a built-in drain pump and durable coils, ensuring reliable performance in small to mid-size spaces. It is compatible with the Airzone third-party communicating zoning system.

• Delivers superior comfort and energy-efficient performance.
• Features ProCoreTM (High Corrosion Resistant Copper) coils for long-lasting protection against corrosion.
• Operates whisper-quiet with sound levels as low as 24dB.

Product Highlights

This Fujitsu indoor unit offers efficient water removal, automatic static pressure detection, and a wide external static pressure range for adaptable performance.

Product Information

Standard Information

• Brand: FUJITSU
• Manufacturer Part Number: ARUH12KUAS

Technical Specifications

• Unit Type: Indoor Unit
• Product Line: KUAS Series
• Operating Mode: Cooling & Heating
• Number of Zones: Multi
• System Capacity: 12,000 BTU
• Line Set Size: 1/4" x 3/8"
• WiFi Enabled: Yes
• WiFi Built In: No
• Indoor Unit: ARUH12KUAS
• Nominal Capacity: 12,000 BTU
• Heating Operating Range: 64 - 90 F
• Cooling Operating Range: 60 - 86 F
• Room Cooling/Heating Capacity: up to 500 sq ft
• Airflow Cooling CFM: 300-347-400-500
• Airflow Heating CFM: 300-347-400-500
• Noise Level dB(A), Cooling: 24-27-30-35
• Noise Level dB(A), Heating: 24-27-30-35
• Voltage Rating: 208-240 VAC
• Heating Capacity: 12 Kbtu/hr
• Cooling Capacity: 12 Kbtu/hr
• COP Rating: 3.76
• Flow Rate: 500 cfm
• Material: Steel Sheet
• Power Source: 208/230 V, 60 Hz
• Refrigerant Type: R-32
• Type: Mid-Static
• Brand: Fujitsu
• Manufacturer: Fujitsu General
• MPN: ARUH12KUAS
