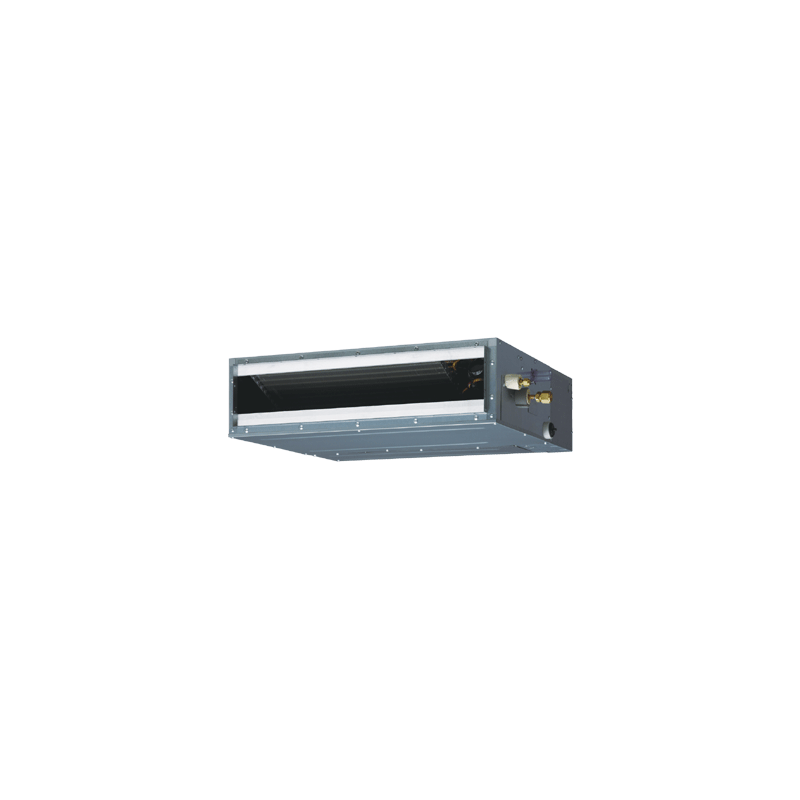

Fujitsu ARU24RLF Ductless Mini-Split Indoor Ducted 24K Cool/27K Heat 208/230/1 Single Zone Heat Pump R410A

Product Description

The Fujitsu ARU24RLF ductless mini-split indoor unit eliminates the need for bulky ductwork, using thin copper tubing to pump refrigerant directly to discreet concealed units. This unit provides efficient cooling and heating for year-round comfort. It features multiple operating modes and fan speeds. The ARU24RLF combines an ion deodorization filter with an enzyme-based filter for managing allergens.

• Multiple operating modes and fan speeds
• Ion deodorization and enzyme-based filter
• Dry mode dehumidifies the zone

Product Highlights

The Fujitsu ARU24RLF offers efficient heating and cooling with quiet operation and easy installation, making it ideal for maintaining a comfortable environment.

Product Information

Standard Information

• Brand: FUJITSU
• Manufacturer Part Number: ARU24RLF
• Country of Origin: CHINA

Technical Specifications

• MPN: ARU24RLF
• Brand: FUJITSU
• Brand Name: Fujitsu
• Cooling BTU: 24000
• Heating BTU: 27000
• Voltage: 208/230
• Refrigerant: R410A
• Mounting Style: Ducted
• SEER: 16.5
• Maximum CFM: 783
• Liquid Valve Size: 1/4"
• Suction Valve Size: 5/8"
• Electrical: 208/230 V. 1 Phase 60 Hz
• Tonnage: 2 Ton
• Valve Type: Flare
• Height: 7 13/16"
• Width: 43 5/16"
• Depth: 24 7/16"
• Product Category: Mini Split System Components
• Type: Concealed Duct
• Product Line: Halcyon HFI
• Operating Mode: Heating and Cooling
• Multi-Zone Compatible: Yes
• Refrigerant Type: R-410A
• Indoor Unit Size(s): 24
• Installation Location: Indoor
• Cooling Capacity: 24000 BTU
• Maximum Air Flow: 783 CFM
• Minimum Air Flow: 607 CFM
• Minimum Sound Level: 29 dB
• Maximum Sound Level: 35 dB
• Phase: 1
• Frequency: 60 Hz
• Gas Connection Size: 5/8 Inch
• Liquid Connection Size: 1/4 Inch
• Product Height: 7 13/16 Inches
• Product Width: 43 5/16 Inches
• Product Depth: 24 7/16 Inches
• Product Weight: 55 Pounds
• ETL Listed: Yes
• AHRI Certified: Yes
• ISO Certified: Yes
• Parts Warranty: 5 Years
• BtuH Cooling: 24,000
• BtuH Heating: 27,000
• Remote Included: Y
• Sound Pressure Cooling dBA: 33
• Sound Pressure Heating dBA: 35
• Style: Ducted
• Suction Fitting: 5/8"
• Unit Type: Indoor
• Volts: 208/230
• Wifi Enabled: N
• Zone Type: Multi-Zone
