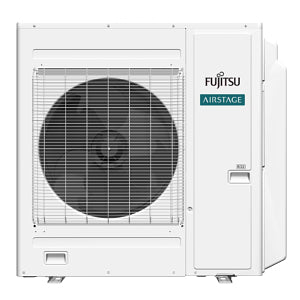

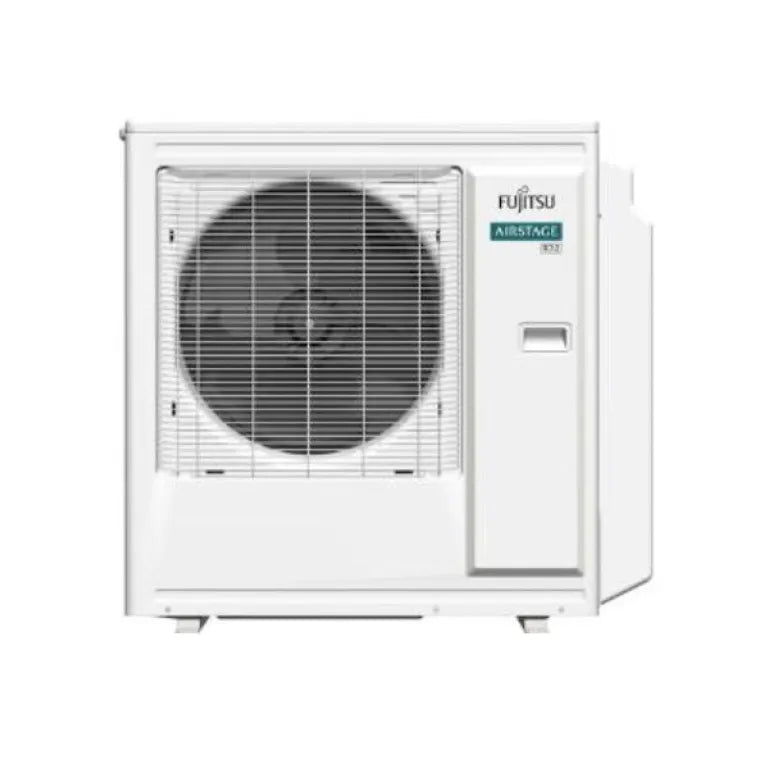

Fujitsu AOUH36KWAH4 3 Ton R-32 Ductless Mini-Split Multi-Zone Outdoor Heat Pump

Product Description

The Fujitsu AOUH36KWAH4 is a 3 Ton R-32 Ductless Mini-Split Multi-Zone Outdoor Heat Pump. This multi-zone outdoor unit has a connectable capacity of up to 130% and supports connection of up to 4 indoor units. The INVERTER-driven compressor offers superior performance, comfort, and energy savings. It operates efficiently with heating down to -15°F and cooling up to 122°F.

• Multi-zone outdoor Unit with a connectable capacity of up to 130%
• Supports connection of up to 4 indoor units
• Low GWP R-32 systems for reduced environmental impact

Product Highlights

This unit features a Blue Fin-coated heat exchanger for improved corrosion resistance and coil durability and super quiet operation with sound levels as low as 54dB.

Product Information

Standard Information

• Brand: FUJITSU
• Manufacturer Part Number: AOUH36KWAH4

Technical Specifications

• Amps Cooling: 12.5
• BtuH Cooling: 35,200
• BtuH Heating: 36,400
• CFM High: 2619
• Cooling Temperature Range °F: 14 – 122
• EER2 Ducted: 12.50
• EER2 Mixed: 12.70
• EER2 Non-Ducted: 13.00
• HSPF2 Ducted: 9.00
• HSPF2 Mixed: 9.50
• HSPF2 Non-Ducted: 10.00
• Heating Temperature Range °F: -15 – 75
• Liquid Conn.: 1/4″
• Max. # of Connectable Indoor Units: 4
• Max. Connectable Capacity: 46000
• Max. Cooling Capacity BtuH: 39,000
• Max. Each Pipe Length: 82.00
• Max. Fuse Size: 35
• Max. Heating Capacity BtuH: 42,000
• Max. Total Pipe Length: 230.00
• Min. # of Connectable Indoor Units: 2
• Min. Connectable Capacity: 25000
• Min. Cooling Capacity BtuH: 12,000
• Min. Each Pipe Length: 16.00
• Min. Heating Capacity BtuH: 6,800
• Min. Total Pipe Length: 49.00
• Nom. Capacity: 36,000
• Refrigerant: R-32
• SEER2 Ducted: 19.00
• SEER2 Mixed: 20.50
• SEER2 Non-Ducted: 22.00
• Sound Pressure Cooling dBA: 54
• Sound Pressure Heating dBA: 56
• Suction Fitting: 3/8″
• System #: 36KWAH4
• Unit Type: Multi Zone Outdoor Unit
• Volts: 208/230
• Zone Type: Multi
• Brand: Fujitsu
• Compressor Type: Inverter Driven
• Cooling Capacity: 36000 Btu/hr
• COP Rating: Wall Mounted : 4.3/Duct : 3.88/Mixed : 4.08
• EER Rating: Wall Mounted : 13/Duct : 12.5/Mixed : 12.7
• Flow Rate: Cooling : 2502 cfm/Heating : 2619 cfm
• HSPF Rating: Wall Mounted : 10/Duct : 9/Mixed : 9.5
• Maximum Piping Length: 230 ft
• Power Source: 208/230 V, 1 ph, 60 Hz
• Refrigerant Type: R-32
• SEER Rating: Wall Mounted : 22/Duct : 19/Mixed : 20.5
• Series: H-Series
• Sound Level: Cooling : 54 dB/ Heating : 56 dB
• Suction Line Size: 3/8 x 1/2 in
• Temperature Rating: Cooling : 14 to 122 deg F/Heating : -15 to 75 deg F
