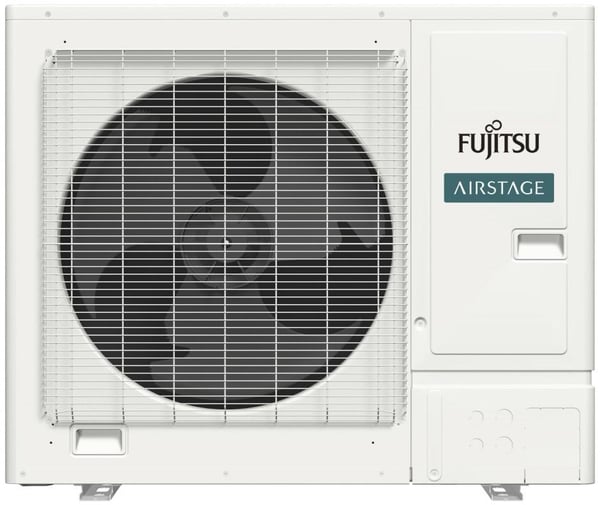

Fujitsu AOUH36KPAS1 36000 BTU Standard-Tier Heat Pump R32

Product Description

The Fujitsu AOUH36KPAS1 is a 36000 BTU Standard-Tier Heat Pump R32. This single zone outdoor unit features an inverter driven compressor and operates on a 208/230 V, 60 Hz power source. It is designed for both cooling and heating applications within a temperature range of 14 to 122 deg F for cooling and 5 to 75 deg F for heating.

• Features a cooling capacity of 36000 Btu/hr
• Operates with R-32 refrigerant
• Maximum piping length of 164 ft

Product Highlights

The Fujitsu AOUH36KPAS1 heat pump provides efficient cooling and heating with a SEER rating of 21 and HSPF rating of 10.

Product Information

Standard Information

• Brand: FUJITSU
• Manufacturer Part Number: AOUH36KPAS1

Technical Specifications

• Brand: Fujitsu
• Compressor Type: Inverter Driven
• Cooling Capacity: 36000 Btu/hr
• COP Rating: 3.3
• EER Rating: 9.75
• Flow Rate: 2166 cfm
• HSPF Rating: 10
• Maximum Piping Length: 164 ft
• Nominal Capacity: 3 ton
• Power Source: 208/230 V, 60 Hz
• Refrigerant Type: R-32
• SEER Rating: 21
• Series: H-Series
• Sound Level: 54 dB/ 56 dB
• Suction Line Size: 5/8 in
• Temperature Rating: Cooling : 14 to 122 deg F/Heating : 5 to 75 deg F
• Type: Single Zone Outdoor Unit
• Material: Steel Sheet
