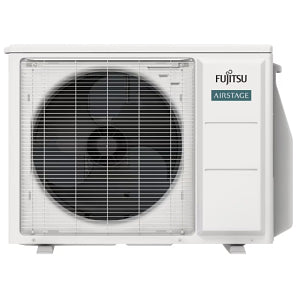

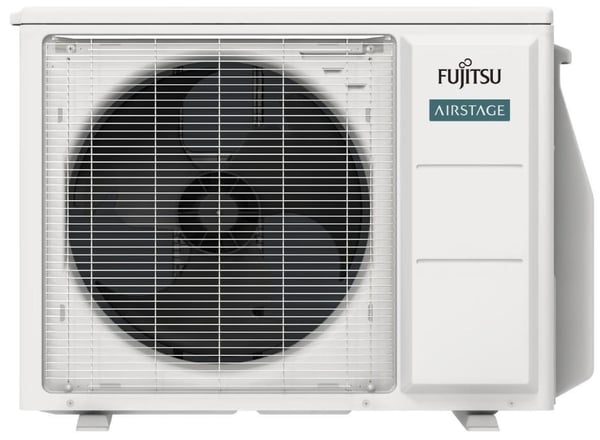

Fujitsu AOUH24KPAS1 Standard-Tier Outdoor Unit 208/230 V

Product Description

The Fujitsu AOUH24KPAS1 standard-tier outdoor unit operates on a 208/230 V, 60 Hz power source and uses R-32 refrigerant. This unit is constructed from steel sheet and features a DC twin rotary compressor. It delivers a flow rate of 1719/1560 cfm and a nominal capacity of 24000 Btu/hr.

• Operates on 208/230 V, 60 Hz power source
• Utilizes R-32 refrigerant
• Features a DC twin rotary compressor

Product Highlights

The Fujitsu AOUH24KPAS1 is a standard-tier outdoor unit with a 24000 BTU/hr nominal capacity, suitable for residential or commercial applications.

Product Information

Standard Information

• Brand: FUJITSU
• Manufacturer Part Number: AOUH24KPAS1

Technical Specifications

• Compressor Type: DC Twin Rotary
• Flow Rate: 1719/1560 cfm
• Material: Steel Sheet
• Nominal Capacity: 24000 Btu/hr
• Power Source: 208/230 V, 60 Hz
• Refrigerant Type: R-32
• Sound Level: 55/54 dBA
• Type: Standard-Tier
• Cooling Capacity: 24000 Btu/hr
• COP Rating: 3.8
• EER Rating: 11.7
• HSPF Rating: 10
• Maximum Piping Length: 98 ft
• SEER Rating: 21.5
• Series: H-Series
• Suction Line Size: 1/2 in
• Temperature Rating: Cooling : 14 to 122 deg F/Heating : 5 to 75 deg F
