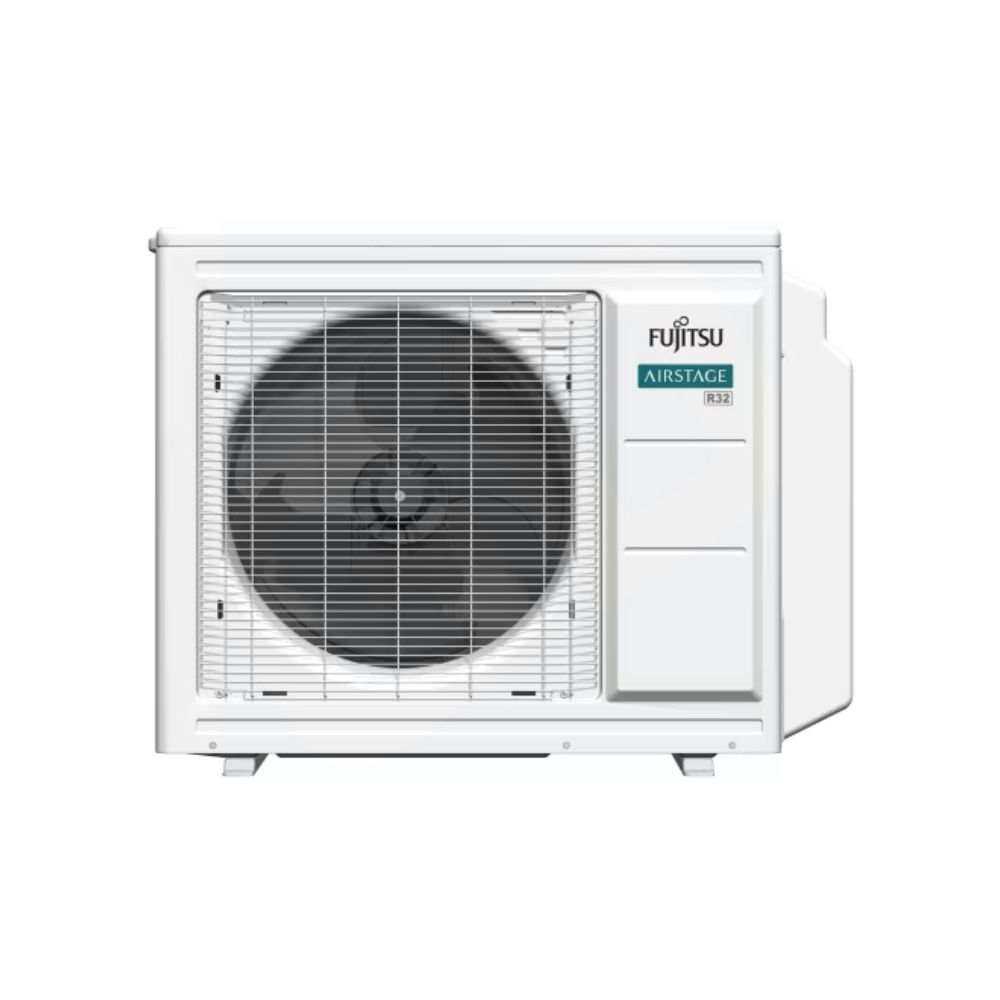

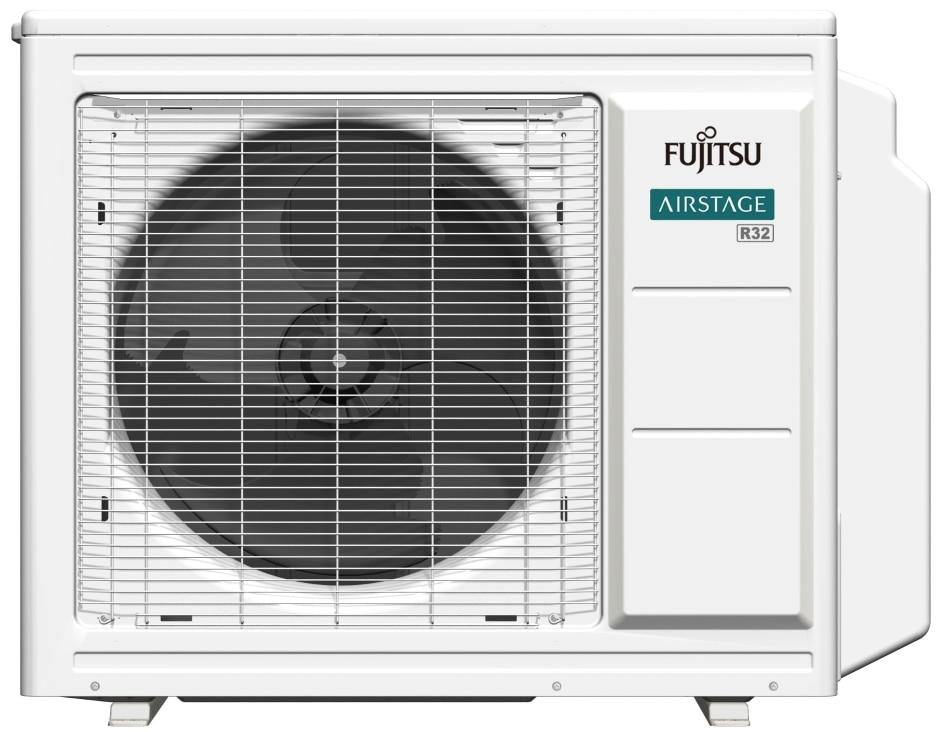

Fujitsu AOUH18KWAS2 Multi-Zone Heat Pump 18,000 BTU

Product Description

The Fujitsu AOUH18KWAS2 is a 2-zone, 18,000 BTU multi-zone outdoor unit used to run up to 2 indoor units at once. It features R32 refrigerant and serves as a replacement model for the AOU18RLXZ1. This unit operates in both cooling and heating modes, with a cooling operation range of 14-122 F and a heating operation range of 5-75 F.

• Connects up to 2 indoor units in a multi-zone application.
• Features an INVERTER-driven compressor for performance and energy savings.
• Equipped with a Blue Fin-coated heat exchanger for corrosion resistance.

Product Highlights

This Fujitsu multi-zone unit provides efficient heating and cooling with connectable capacity of up to 130% and extended line set lengths up to 164ft.

Product Information

Standard Information

• Brand: FUJITSU
• Manufacturer Part Number: AOUH18KWAS2

Technical Specifications

• Unit Type: Fujitsu Multi-Zone Outdoor Unit
• Product Line: Standard Multi-Zone Outdoor Units
• Operating Mode: Cooling & Heating
• Low Ambient Heat: No
• Number of Zones: 2
• Unit Size: 18,000 BTU
• Refrigerant Type: R32
• Outdoor Unit: AOUH18KWAS2
• SEER2 Rating (Non-Ducted, Ducted, Mix): 22, 19, 20.5
• EER2 Rating (Non-Ducted, Ducted, Mix): 13.2, 12.7, 12.9
• HSPF2 (IV/V) (Non-Ducted, Ducted, Mix): 10.5/8.7, 9.5/8, 10/8.3)
• Heating Operation Range: 5-75 F
• Cooling Operation Range: 14-122 F
• Liquid Line Sizes: 1/4"
• Gas Line Sizes: 3/8"
• Pre-Charge Length: 98'
• Connectable Indoor Units: 2
• Connectable Unit Capacity: 14,000-21,000 BTU
• Sound Pressure when Cooling: 49 dB(A)
• Sound Pressure when Heating: 49 dB(A)
• Minimum Line-set Length: 16 ft
• Maximum Line-set Length: 82 ft
• Minimum Line-set Total: 49 ft
• Maximum Line-set Total: 164 ft
• Line-set Requirements: Liquid 1/4" x 2 | Gas 3/8" x 2
• Max Breaker Size (A): 15
• Compressor Type: DC Twin Rotary
• Flow Rate: 1336/1271 cfm
• Material: Steel Sheet
• Nominal Capacity: 18000 Btu/hr
• Power Source: 208/230 V, 60 Hz
• Sound Level: 48/49 dBA
• Type: Multi-Zone
