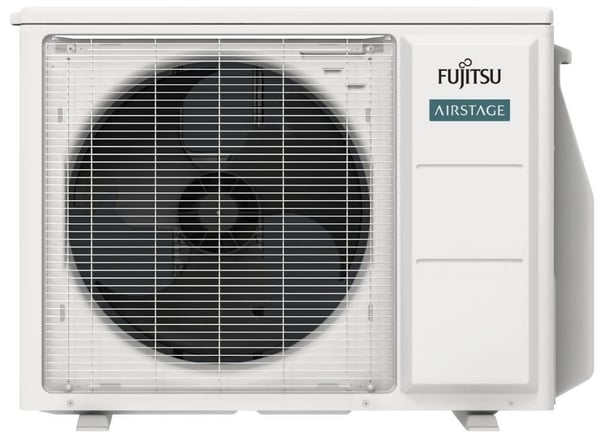

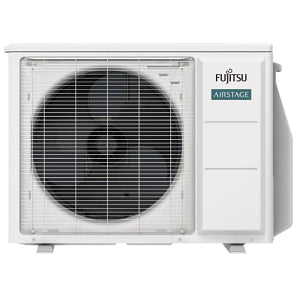

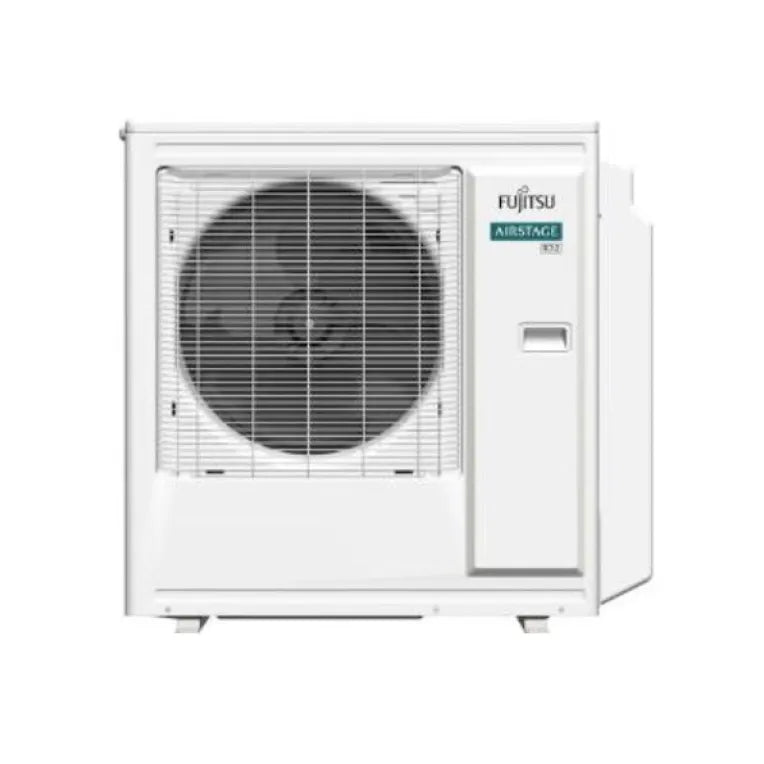

Fujitsu AOUH18KPAS1 1.5 Ton R-32 Ductless Mini-Split Single-Zone Outdoor Heat Pump

Product Description

The Fujitsu AOUH18KPAS1 is a 1.5 Ton R-32 ductless mini-split single-zone outdoor heat pump. It features an INVERTER-driven compressor for performance and energy savings. The special cooling operation extends cooling down to -4°F (-20°C). The compact outdoor unit has extended line set lengths up to 98ft (30m).

• Low GWP R-32 systems for reduced environmental impact
• INVERTER-driven compressor offers superior performance and energy savings
• Hydro Fin-coated heat exchanger for improved corrosion resistance and coil durability

Product Highlights

This Fujitsu heat pump provides efficient cooling and heating with a compact design and durable components, ideal for single-zone applications.

Product Information

Standard Information

• Brand: FUJITSU
• Manufacturer Part Number: AOUH18KPAS1

Technical Specifications

• Amps Cooling: 6.7
• BtuH Cooling: 18000
• BtuH Heating: 18,000
• CFM High: 1348
• Cooling Temperature Range °F: 14 – 122
• EER2 Non-Ducted: 12.50
• HSPF2 Non-Ducted: 10.50
• Heating Temperature Range °F: 5 – 75
• Liquid Conn.: 1/4″
• Max. Cooling Capacity BtuH: 20,000
• Max. Fuse Size: 15
• Max. Heating Capacity BtuH: 24,000
• Max. Total Pipe Length: 98.00
• Min. Cooling Capacity BtuH: 4,000
• Min. Heating Capacity BtuH: 4,150
• Min. Total Pipe Length: 10.00
• Nominal Capacity: 18,000
• Refrigerant: R-32
• SEER2 Non-Ducted: 22.00
• Sound Pressure Cooling dBA: 50
• Sound Pressure Heating dBA: 50
• Suction Fitting: 1/2″
• System #: 18KPAS1
• Unit Type: Single Zone Outdoor Unit
• Volts: 208/230
• Zone Type: Single
• Nominal CFM: 1348
• SEER2: 22.00
• EER2: 12.50
• HSPF2: 10.50
• Compressor Type: DC Twin Rotary
• Flow Rate: 1218/1348 cfm
• Material: Steel Sheet
• Power Source: 208/230 V, 60 Hz
• Sound Level: 50 dBA
• Type: Standard-Tier
• Cooling Capacity: 18000 Btu/hr
• COP Rating: 4.2
• EER Rating: 12.5
• HSPF Rating: 10.5
• Maximum Piping Length: 98 ft
• Series: H-Series
• Suction Line Size: 1/2 in
• Temperature Rating: Cooling : 14 to 122 deg F/Heating : 5 to 75 deg F
• Mfr. Name: Fujitsu General
• MPN: AOUH18KPAS1
• Brand: Fujitsu
