Fujitsu AOUH12LPAS1 Outdoor Condenser 12k BTU

Product Description

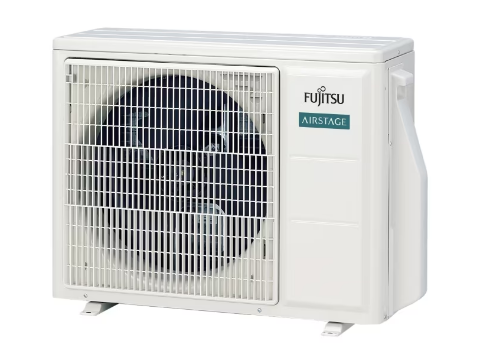

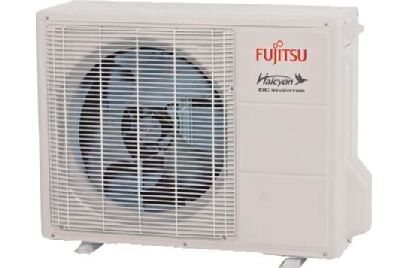

The Fujitsu AOUH12LPAS1 is an outdoor condenser unit providing efficient heating and air conditioning solutions. Capable of cooling, drying, and heating operations, this single zone unit promotes health and comfort year-round. It features auto changeover, weekly and 24 hr timer, and auto louver for redirecting airflow. The unit operates on 208/230 Volts.

• Auto Changeover: Switches between cooling and heating modes automatically.
• Timer: Offers weekly and 24-hour timer settings with up to four ON/OFF timers per day.
• Auto Louver: Redirects airflow automatically with up/down and left/right motion.

Product Highlights

The Fujitsu AOUH12LPAS1 outdoor condenser provides efficient, customizable, and reliable climate control for single-zone mini-split systems.

Product Information

Standard Information

• Brand: FUJITSU
• Manufacturer Part Number: AOUH12LPAS1

Technical Specifications

• Brand: FUJITSU
• MPN: AOUH12LPAS1
• Type: Outdoor Condenser
• Capacity (BTU/h): 12k
• Cooling BTU: 12000
• Heating Capacity: 14K
• Product Line: LPAS1
• Operating Mode: Heating and Cooling
• Installation Location: Outdoor
• Multi-Zone Compatible: No
• Refrigerant Type: R-410A
• Voltage: 208/230 Volts
• Phase: 1
• Frequency: 60 Hz
• Recommended Breaker Size: 15 Amps
• Maximum Line Length: 66 Feet
• Gas Connection Size: 3/8 Inch
• Liquid Connection Size: 1/4 Inch
• Product Height: 21 5/16 Inches
• Product Width: 31 7/16 Inches
• Product Depth: 11 7/16 Inches
• Shipping Height: 23 11/16 Inches
• Shipping Width: 37 Inches
• Shipping Depth: 14 3/4 Inches
• Shipping Weight: 84 Pounds
• ETL Listed: Yes
• AHRI Certified: Yes
• ISO Certified: Yes
• Parts Warranty: 5 Years
• Compressor Warranty: 7 Years
• Minimum Outdoor Temperature for Cooling: 14 F
• Minimum Outdoor Temperature for Heating: 5 F
• Maximum Sound Level: 47 dB
• SEER: 20.0
• EER: 11
• HSPF: 10.5
• Compressor Speed: Inverter
• Suction Line Size: 3/8
• Suction Line Quantity: 1
• Liquid Line Size: 1/4
• Liquid Line Quantity: 1
• Building Type: Residential
