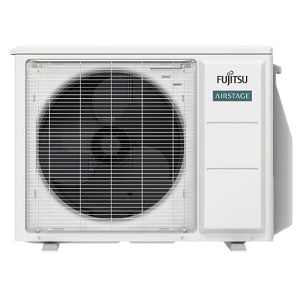

Fujitsu AOUH12KZAH1 Heat Pump 12000 BTU

Product Description

The Fujitsu AOUH12KZAH1 is a 12000 BTU high-tier heat pump XLTH R32. This single zone outdoor unit features an inverter driven compressor and operates on a 208/230 V, 60 Hz power source, using R-32 refrigerant. It is part of the H-Series and offers both cooling and heating capabilities.

• Cooling capacity of 12000 BTU/hr
• SEER rating of 30.5 and HSPF rating of 12.7
• Operating temperature range from 14 to 122 deg F for cooling and -15 to 75 deg F for heating

Product Highlights

High-efficiency heat pump with a wide operating temperature range and excellent SEER and HSPF ratings.

Product Information

Standard Information

• Brand: FUJITSU
• Manufacturer Part Number: AOUH12KZAH1

Technical Specifications

• Brand: Fujitsu
• Compressor Type: Inverter Driven
• Cooling Capacity: 12000 Btu/hr
• COP Rating: 4.64
• EER Rating: 16
• Flow Rate: Cooling : 1171 cfm/Heating : 1089 cfm
• HSPF Rating: 12.7
• Maximum Piping Length: 82 ft
• Nominal Capacity: 1 ton
• Power Source: 208/230 V, 60 Hz
• Refrigerant Type: R-32
• SEER Rating: 30.5
• Series: H-Series
• Sound Level: Cooling : 47 dB/ Heating : 47 dB
• Suction Line Size: 3/8 in
• Temperature Rating: Cooling : 14 to 122 deg F/Heating : -15 to 75 deg F
• Type: Single Zone Outdoor Unit
