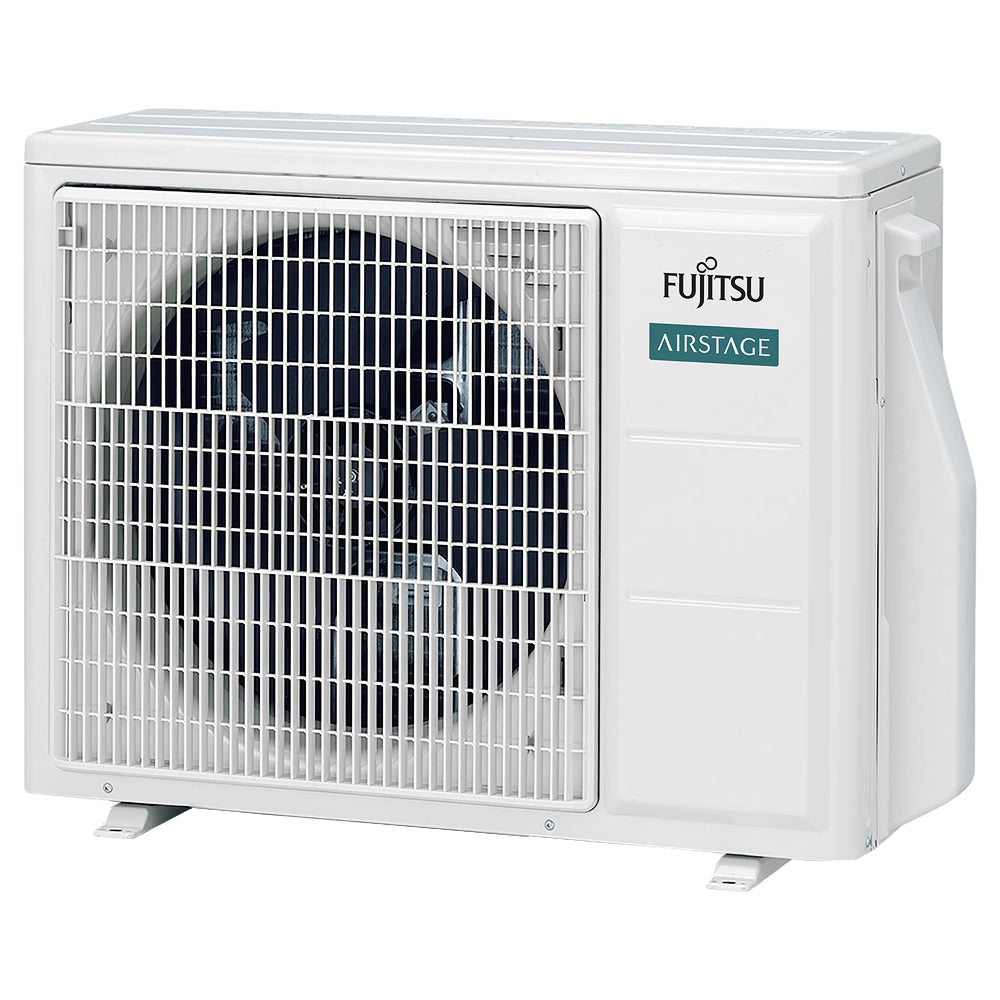

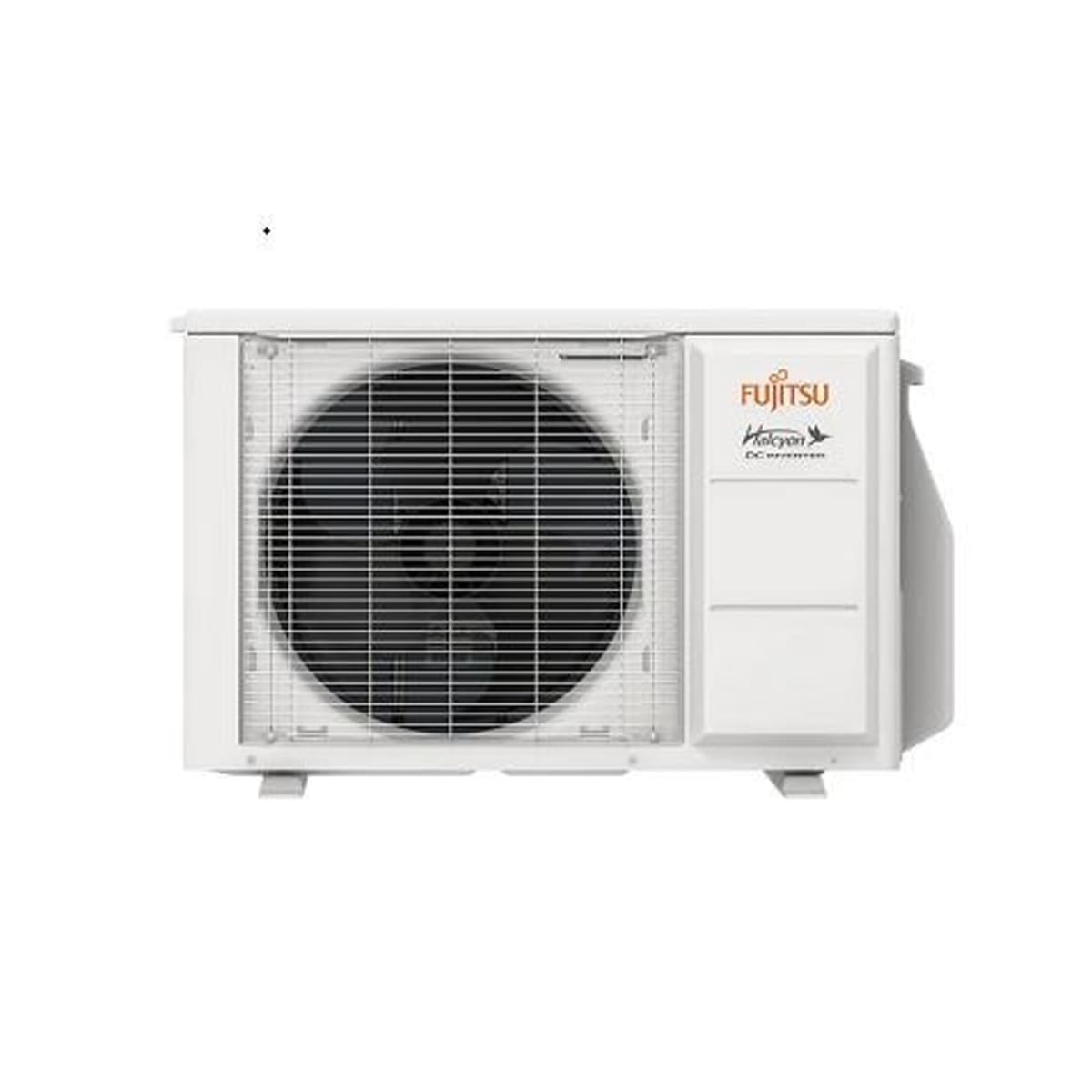

Fujitsu AOUG12LZAS1 Outdoor Condenser 12,000 BTU (Single Zone)

Product Description

Fujitsu AOUG12LZAS1 is an outdoor condenser for single-zone mini-split systems that provides 12,000 BTU cooling and inverter-driven heating and cooling using R-410A refrigerant. The unit operates on 208/230 V, 1 phase at 60 Hz, is rated at 29.4 SEER, and supports a maximum refrigerant line length of 66 ft. It includes a corrosion-resistant blue fin heat exchanger.

• Inverter compressor operation for variable output heating and cooling; compatible with single-zone Fujitsu indoor units
• R-410A refrigerant, blue fin corrosion-resistant heat exchanger, sound level approximately 47 dB
• Electrical and piping: 208/230 V 1 phase, 15 A circuit recommendation, liquid line 1/4 in, suction line 3/8 in, max pipe length 66 ft

Product Highlights

Single-zone outdoor condenser, 12,000 BTU cooling, 29.4 SEER, R-410A, 208/230 V 1-phase

Product Information

Standard Information

• Brand: FUJITSU
• Manufacturer Part Number: AOUG12LZAS1
• Country of Origin: Thailand

Technical Specifications

• MPN: AOUG12LZAS1
• Brand: Fujitsu
• Type: Outdoor Condenser
• Product Line: LZAS
• System Type: Single-zone heat pump
• Cooling Capacity: 12,000 BTU
• Heating Capacity: 13,600 BTU
• SEER: 29.4
• EER: 15.2
• HSPF: 14
• Refrigerant: R-410A
• Input Voltage: 208/230 V
• Phase: 1
• Frequency: 60 Hz
• Recommended Breaker Size: 15 Amps
• Maximum Circuit Breaker: 15 A
• Maximum Line Length: 66 ft (20 m)
• Maximum Vertical Difference: 49 ft (15 m)
• Minimum Pipe Length: 10 ft (3 m)
• Liquid Line Size: 1/4 inch
• Suction Line Size: 3/8 inch
• Operating Temperature Range (Cooling): 14 F to 115 F
• Operating Temperature Range (Heating): -5 F to 75 F
• Sound Level: 47 dB
• Width: 31-7/16 in
• Depth: 11-7/16 in
• Height: 24-7/8 in
• Weight: 84 lb
• Max Number of Connectable Indoor Units: 1
• Certifications: ETL Listed; ISO Certified; AHRI Certified; Energy Star
• Installation Location: Outdoor
• Country of Origin: Thailand
