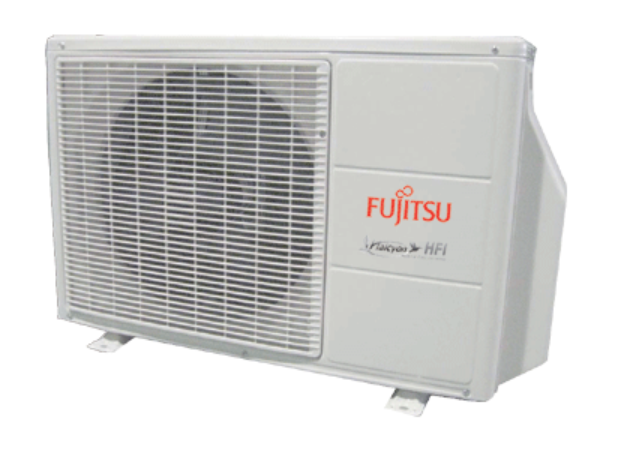

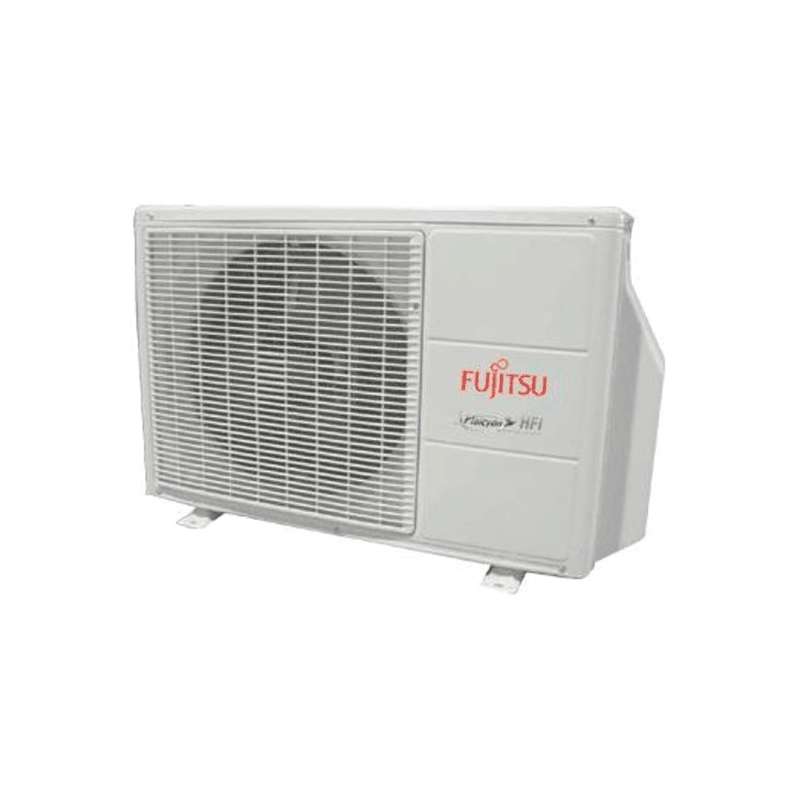

Fujitsu AOU9RLFC Ductless Mini-Split Outdoor 9K Cool/12K Heat 24.0 SEER 208/230/1 Single Zone Heat Pump R410A

Product Description

The Fujitsu AOU9RLFC is a ductless mini-split system designed for efficient cooling and heating. This single zone heat pump uses R410A refrigerant and operates on 208/230/1 voltage. It eliminates the need for bulky ductwork, offering year-round comfort. Available in mix-and-match capacities and configurations, it suits even the most difficult to heat and cool areas.

• Ductless mini-split system
• Efficient cooling and heating
• Suitable for year-round, whole-house comfort

Product Highlights

This Fujitsu mini-split system provides efficient and flexible climate control for residential and commercial spaces.

Product Information

Standard Information

• Brand: FUJITSU
• Manufacturer Part Number: AOU9RLFC

Technical Specifications

• Cooling Capacity: 9K
• Heating Capacity: 12K
• SEER Rating: 24.0
• Voltage: 208/230/1
• Type: Single Zone Heat Pump
• Refrigerant: R410A
• Cooling: 9000 Btu/hr
• Heating: 12000 Btu/hr
• SEER: 24
• Brand: FUJITSU
• MPN: AOU9RLFC
• Cooling BTU: 9000
• Heating BTU: 9,000
• Mounting Style: Outdoor Condenser
• Operating Mode: Heating and Cooling
• Number of Zones: 1
• Refrigerant Type: R-410A
• Outdoor Unit Size: 9000 BTU
• DOE Regional Compliance: Nationwide
• Line Set Size: 1/4" x 3/8"
• EER: 14.5
• HSPF: 12.2
• Low Ambient Heating: Yes
• Minimum Outdoor Temperature for Heating: -5 F
• Minimum Outdoor Temperature for Cooling: 14 F
• Phase: 1
• Frequency: 60 Hz
• AHRI Certified: Yes
• AHRI Reference Number: 5751312
• Multi-Zone Compatible: No
• Maximum Sound Level: 49 dB
• Recommended Breaker Size: 15 Amps
• Maximum Line Length: 66 Feet
• Gas Connection Size: 3/8 Inch
• Liquid Connection Size: 1/4 Inch
• Product Height: 24.5 Inches
• Product Width: 31.1 Inches
• Product Depth: 11.3 Inches
• Shipping Width: 37.2 Inches
• Shipping Height: 28.1 Inches
• Shipping Depth: 15.6 Inches
• ETL Listed: Yes
• Parts Warranty: 5 Years
• Compressor Warranty: 7 Years
• Product Category: Mini Split System Components
• Maximum Air Flow: 353 CFM
• Minimum Air Flow: 265 CFM
• Minimum Sound Level: 24 dB
• Maximum Sound Level (Indoor): 28 dB
• ISO Certified: Yes
• HSPF Rating: 13
• Voltage Rating: 208 to 230 V
• Amperage Rating: 3 A
• Liquid Line Size: 1/4 in
• Suction Line Size: 3/8 in
• Compressor Speed: Inverter
• Suction Line Quantity: 1
• Liquid Line Quantity: 1
• Circuit Breaker Capacity: 15
• Building Type: Residential
• Nominal Cooling: 9000
• Nominal Heating: 12000
• Electrical Designation: 1-60-208/230
