Product Description

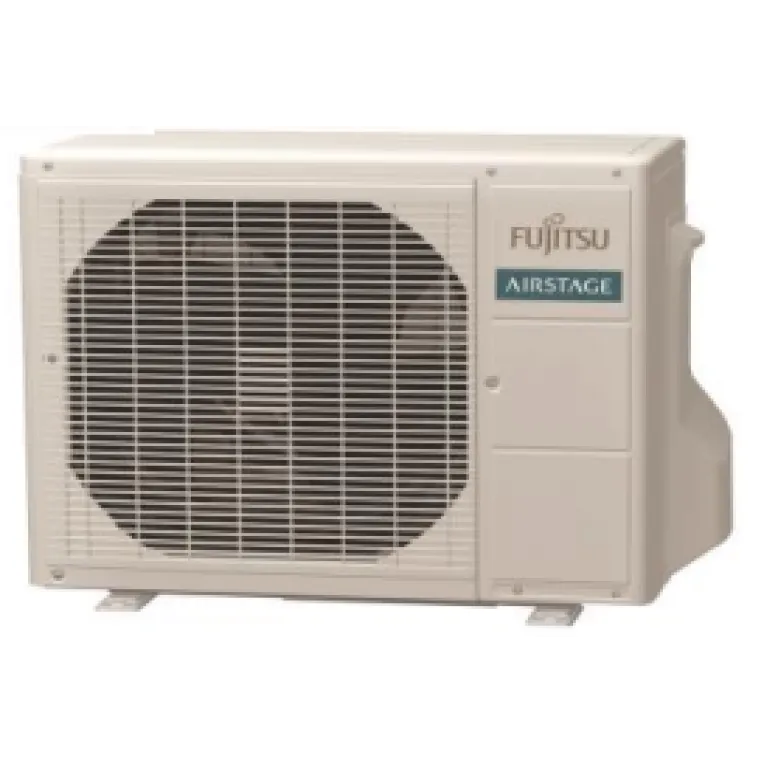

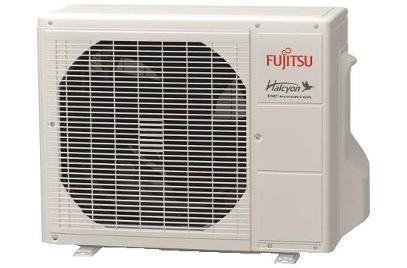

The Fujitsu AOU9RL2 RL2 outdoor condenser uses an inverter to drive the compressor, matching its output to heating or cooling needs. It features a corrosion-resistant heat exchanger with a blue fin coating for improved longevity. This single zone unit requires a compatible Fujitsu mini split indoor unit for installation.
- Inverter technology adjusts output to match heating or cooling requirements.
- Corrosion-resistant heat exchanger with blue fin coating.

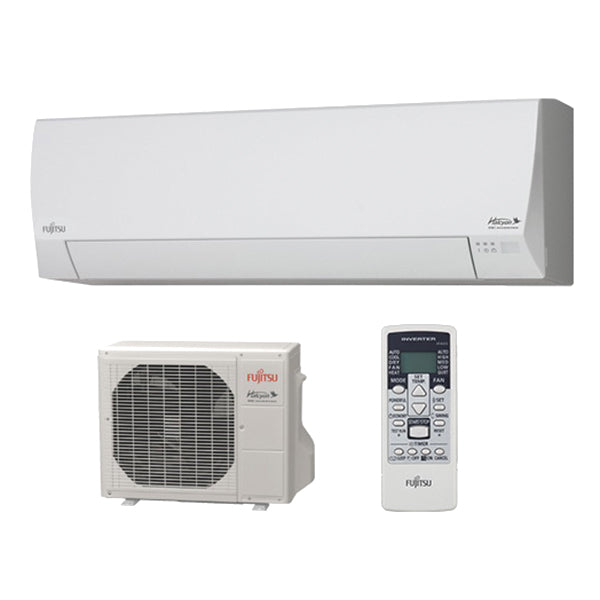

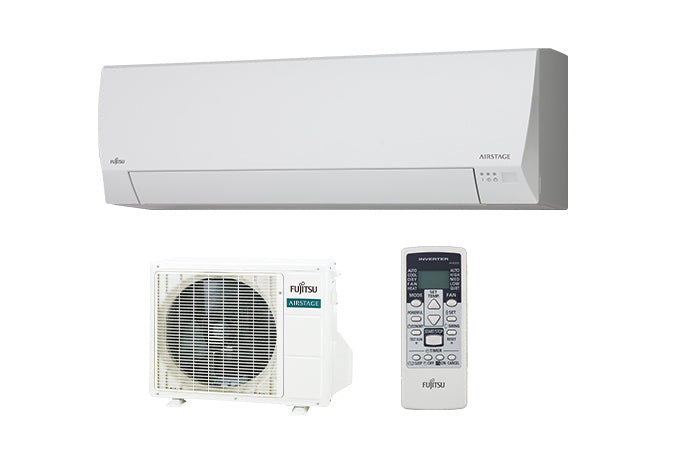

- Requires compatible Fujitsu mini split indoor unit.
Product Highlights
The Fujitsu AOU9RL2 is an outdoor condenser with inverter technology and a corrosion-resistant heat exchanger, designed for single-zone mini-split systems.
Product Information
Standard Information
-
Brand: FUJITSU
-
Manufacturer Part Number: AOU9RL2
-
Country of Origin: THAILAND
Technical Specifications
-
Phase: 1
-
Voltage: 115 Volts
-
Cooling BTU: 9000
-
Product Depth: 11 17/48 Inches
-
Product Width: 26 Inches
-
Type: Outdoor Condenser
-
ETL Listed: Yes
-
Product Height: 21 1/4 Inches
-
Frequency: 60 Hz
-
ISO Certified: Yes
-
Cooling Capacity: 9000 BTU
-
AHRI Certified: Yes
-
Gas Connection Size: 3/8 Inch
-
Maximum Line Length: 66 Feet
-
Low Ambient Heating: No
-
Maximum Sound Level: 48 dB
-
Product Line: RL2
-
Liquid Connection Size: 1/4 Inch
-
Operating Mode: Heating and Cooling
-
Parts Warranty: 5 Years
-
Product Category: Mini Split System Components
-
Refrigerant Type: R-410A
-
Outdoor Unit Size: 9000 BTU
-
Recommended Breaker Size: 15 Amps
-
Compressor Warranty: 10 Limited Years
-
Installation Location: Outdoor
-
Multi-Zone Compatible: No
-
Minimum Outdoor Temperature for Cooling: 15 F
-
Minimum Outdoor Temperature for Heating: 15 F
-
Heating Capacity: 10000 BTU/h
-
SEER Rating: 16.0
-
Heating Capacity BTU/h: 10000(1,700~12,000)
-
HSPF BTU/hW: 9.0
-
EER Cooling/Heating W/W: 10.8/13.0
-
Operation Range Cooling °F(°C): 15~115 (-10~46)
-
Operation Range Heating °F(°C): 15~75 (-10~24)
-
Moisture Removal Pt./h(l/h): 2.7 (1.3)
-
MAX.CRT.BKR A: 15
-
Air Circ. C.F.M. Hi (m³/h): 436 (740)
-
Air Circ. C.F.M. Medium: 353 (600)
-
Air Circ. C.F.M. Low: 265 (450)
-
Air Circ. C.F.M. Quiet: 191 (325)
-
Noise Level Hi dB(A) 15RLS3: 43/43
-
Noise Level Medium: 38/38
-
Noise Level Low: 33/33
-
Noise Level Quiet: 23/23
-
Outdoor Fan Speed RPM: 730
-
Outdoor Noise Level dB(A) Clg/Htg: 47/48
-
Current Cooling A: 7.5
-
Heating: 7.0
-
Power Use Cooling kw: 0.83
-
Power Use Heating: 0.77
-
Fan Speeds Stage: 4 + Auto
-
Air Direction Horizontal: Manual
-
Air Direction Vertical: Automatic
-
Air Filter: Washable
-
Connection Method: Flare
-
Combined Min.Lgth Ft (m): 10 (3)
-
Max.Lgth: 66 (20) (pre-charge: 49’)
-
Max. Vertical Diff. Ft (m): 47/48
-
Conn. Pipe Diameter Indoor Inch Suc.: 3/8
-
Conn. Pipe Diameter Outdoor Dis.: 1/4
-
Minimum Circuit Ampacity: 14 Amps
-
Suction Connection Size: 3/8 Inch
-
Remote Control: Wireless
-
Maximum Air Flow: 436 CFM
-
Minimum Air Flow: 191 CFM
-
Minimum Sound Level: 23 dB
-
Amps Cooling: 7.5
-
BtuH Cooling: 9,000
-
BtuH Heating: 10,000
-
CFM High: 436
-
Cooling Temperature Range °F: 15 - 115
-
EER Non-Ducted: 10.9
-
EER2 Ducted: 10.80
-
HSPF Non-Ducted: 9
-
HSPF2 Ducted: 9.00
-
Heating Temperature Range °F: 15 - 75
-
Liquid Conn.: 1/4"
-
Max. # of Connectable Indoor Units: 1
-
Max. Connectable Capacity: 9,000
-
Max. Cooling Capacity BtuH: 10,700
-
Max. Each Pipe Length: 66.00
-
Max. Fuse Size: 15
-
Max. Heating Capacity BtuH: 12,000
-
Max. Total Pipe Length: 66.00
-
Min. # of Connectable Indoor Units: 1
-
Min. Connectable Capacity: 9,000
-
Min. Cooling Capacity BtuH: 1,700
-
Min. Each Pipe Length: 10.00
-
Min. Heating Capacity BtuH: 1,700
-
Min. Total Pipe Length: 10.00
-
Nom. Capacity: 9,000
-
SEER: 16
-
SEER Non-Ducted: 16
-
SEER2 Ducted: 16.00
-
Sound Pressure Cooling dBA: 47
-
Sound Pressure Heating dBA: 48
-
Suction Fitting: 3/8"
-
System #: 9RL2
-
System Flex: N
-
Unit Type: Outdoor
-
Volts: 115
-
Width: 26"
-
Wt. Lbs.: 64
-
Zone Type: Single-Zone
-
Nominal CFM: 436
-
Amps: 7.5
-
Sound Level: 48 dBA
-
Connection: Flare
