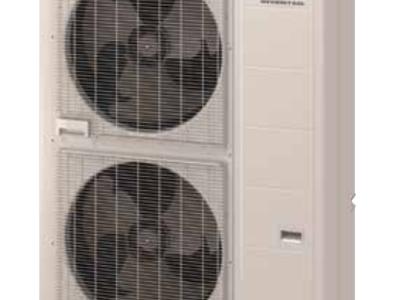

Fujitsu AOU96RLAVL Heat Pump for Small Capacity Type J-IIIL Series 96,000 BTU/h

Product Description

The FUJITSU AOU96RLAVL is an outdoor unit from the J-IIIL Series, designed as a heat pump for small capacity applications. It features a compact design and advanced technologies for high efficiency. This unit offers long piping length, top class indoor unit connection, high static pressure, and low-noise operation. It has a cooling capacity of 96,000 BTU/h and a heating capacity of 108,000 BTU/h.

• Compact design
• Advanced technologies for high efficiency
• Long piping length

Product Highlights

This Fujitsu Airstage VRF J-IIIL system is perfect for multi-family, large residential and commercial buildings with limited installation space.

Product Information

Standard Information

• Brand: FUJITSU
• Manufacturer Part Number: AOU96RLAVL

Technical Specifications

• Phase: 3-phase
• Voltage: 208 / 230 V
• Frequency: 60 Hz
• Cooling Capacity: 96,000 BTU/h
• Heating Capacity: 108,000 BTU/h
• EER (Non-Ducted/Ducted) Cooling: 11.6 / 11.6 Btu/hW
• SEER (Non-Ducted/Ducted) Cooling: 23.1 / 21.1 Btu/hW
• COP (Non-Ducted/Ducted) Heating: 3.87 / 3.66 W/W
• Air Flow Rate: 11,000 CFM
• Cooling Sound Pressure Level: 59 dB(A)
• Heating Sound Pressure Level: 60 dB(A)
• Refrigerant Type: R410A
• Liquid Connection Pipe Diameter: 3/8 inch
• Discharge Gas Connection Pipe Diameter: 7/8 inch
• Cooling Operation Range: 5 to 115 °FDB
• Heating Operation Range: -4 to 70 °FDB
• Maximum Connectable Indoor Unit: 1-24
• Compressor Speed: Inverter
• Suction Line Size: 7/8
• Liquid Line Size: 3/8
• Circuit Breaker Capacity: 40
• Building Type: Commercial
