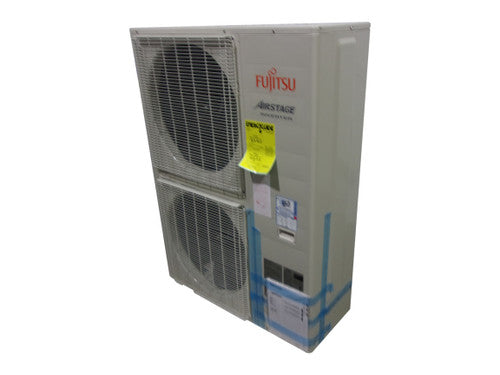

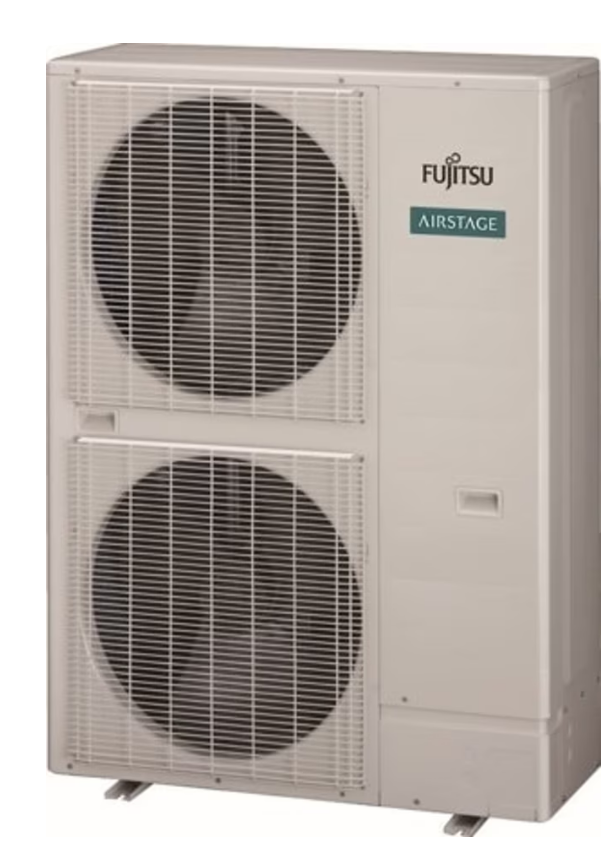

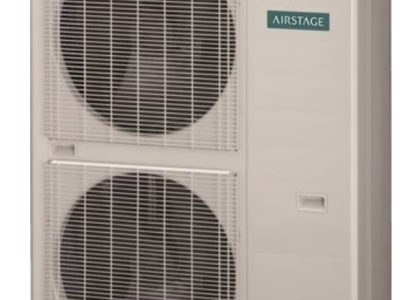

Fujitsu AOU60RLAVM4 Airstage VRF Mini-Split 5 Ton 48K BTU 230/1 -15 HEAT,130% connect

Product Description

The Fujitsu AOU60RLAVM4 Mini-Split J-IVS Series is a 5 ton, 48K BTU unit operating at 230/1. It utilizes variable refrigerant flow (VRF) technology for simultaneous cooling and heating. This Airstage J-IV system offers energy efficiency and is designed for easy installation and maintenance. Up to 15 indoor units can be connected. The system maintains a comfortable climate by quickly reacting to demand changes.

• 5 ton cooling capacity - 66,000 BTU's heating capacity
• Maximum number of indoor units: 15
• Rotary compressor

Product Highlights

The Fujitsu AOU60RLAVM4 mini-split system provides efficient climate control by extracting heat from rooms or zones that require cooling, and transferring the heat to other rooms or zones that, at the same time, require heating.

Product Information

Standard Information

• Brand: FUJITSU
• Manufacturer Part Number: AOU60RLAVM4

Technical Specifications

• Nominal Cooling: 60000
• Nominal Heating: 66000
• Electrical Designation: 1-60-208/230
• Refrigerant: R410A
• SEER: 19.5
• EER: 10.8
• HSPF: 9.4
• Compressor Speed: Inverter
• Suction Line Size: 3/4
• Liquid Line Size: 3/8
• Circuit Breaker Capacity: 40
• Building Type: Commercial
• Length (inches): 14.5625
• Height (inches): 52.50
• Width (inches): 38.1875
• Capacity Range: 5 Ton HP
• Power source Phase: Single-phase 1
• Voltage: 208/230 V
• Frequency: 60 Hz
• Air Flow Rate: 4,827 CFM 8200 m³/h
• Sound Pressure Level Cooling: 57 dB(A)
• Sound Pressure Level Heating: 57 dB(A)
• Maximum external static pressure: 0.12 in.WG 30 Pa
• Compressor motor output: 3.75 kW
• Heat exchanger fin: Blue fin
• Charge: 11.68 lbs 5.3 kg
• Connection Pipe Diameter Liquid: φ3/8 inch φ9.52 mm
• Connection pipe diameter Gas: φ3/4 inch φ19.05 mm
• Total pipe length: 591 ft. 180 m
• Max. height difference (Outdoor Unit: Upper/Lower): 164 / 131 ft. 50 / 40 m
• Operation Range Cooling: 23 to 115 °FDB -5 to 46 °CDB
• Operation Range Heating: -15 to 70 °FDB -26 to 21 °CDB
• Equipment Type: Side Discharge Condenser
• Cooling Size: 5 Ton
• Heating Type: Heat Pump
• Heating Size: 60,000 BTU
• Condenser Type: Heat Pump
• Brand: FUJITSU
• Model - Condenser: AOU60RLAVM4
• Application Type: Residential
• Electrical: 208/230 Volt-1 Phase
