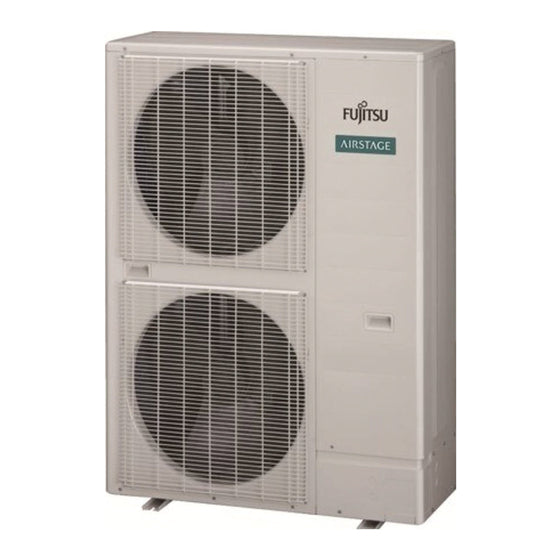

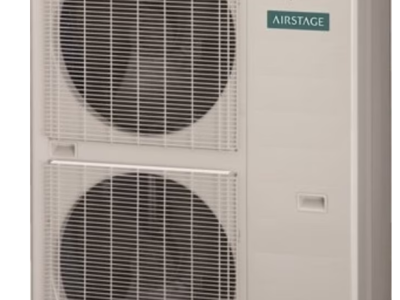

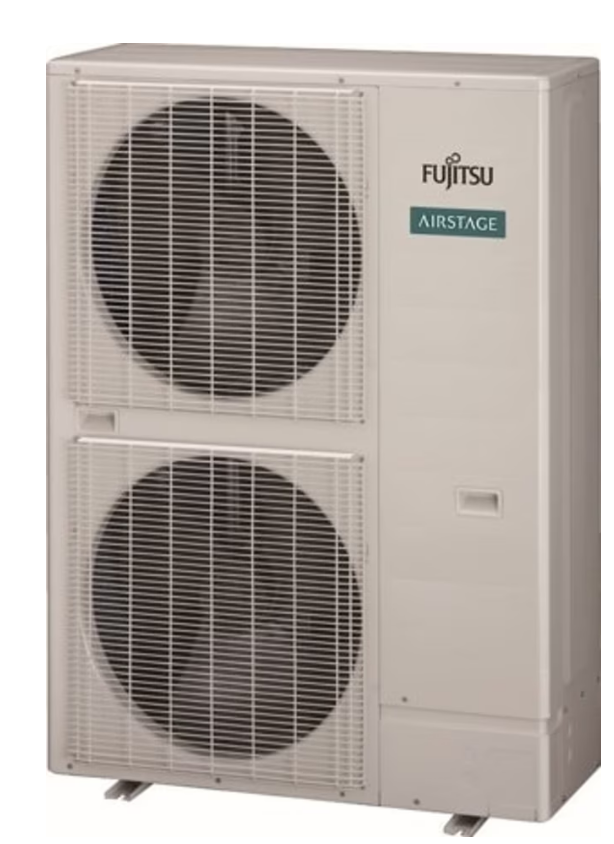

Fujitsu AOU36RLAVM4 Ductless Mini-Split Outdoor VRF 3 Ton 230/1

Product Description

The Fujitsu AOU36RLAVM4 is a 3-ton ductless mini-split outdoor VRF unit designed for heat pump applications. It operates on a 230/1 power supply and features variable refrigerant flow (VRF) technology. This unit supports long piping designs and offers high energy efficiency. It has an airflow rate of 3,649 CFM.

• Connect up to 15 indoor units (5Ton)
• Features a blue fin heat exchanger
• Offers a cooling operation range of 23 to 115 °FDB

Product Highlights

The AOU36RLAVM4 is ideal for commercial buildings, offering efficient climate control and energy savings.

Product Information

Standard Information

• Brand: FUJITSU
• Manufacturer Part Number: AOU36RLAVM4

Technical Specifications

• Capacity Range: 3 Ton HP
• Power source: Single-phase
• Phase: 1
• Voltage: 208/230 V
• Frequency: 60 Hz
• Air Flow Rate: 3,649 CFM
• Sound Pressure Level Cooling: 50 dB(A)
• Sound Pressure Level Heating: 52 dB(A)
• Maximum external static pressure: 0.12 in.WG
• Compressor motor output: 3.75 kW
• Heat exchanger fin: Blue fin
• Refrigerant Type: R410A
• Charge: 10.58 lbs
• Connection Pipe Diameter Liquid: φ3/8 inch
• Connection pipe diameter Gas: φ5/8 inch
• Total pipe length: 591 ft.
• Max. height difference (Outdoor Unit: Upper/Lower): 164 / 131 ft.
• Operation Range Cooling: 23 to 115 °FDB
• Operation Range Heating: -15 to 70 °FDB
• Nominal Cooling: 36000
• Nominal Heating: 42000
• SEER: 19.2
• EER: 13.3
• HSPF: 10.0
• Compressor Speed: Inverter
• Suction Line Size: 5/8
• Liquid Line Size: 3/8
• Circuit Breaker Capacity: 30
• Building Type: Commercial
