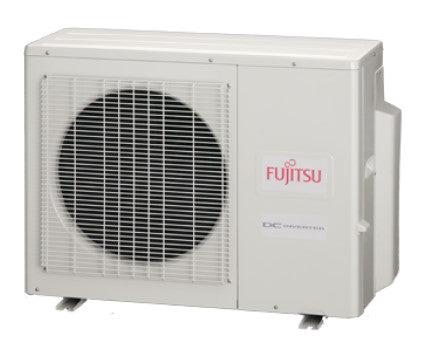

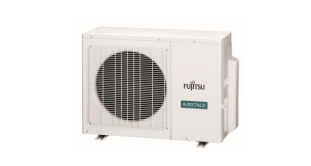

Fujitsu AOU24RLXFZ Halcyon 24,000 BTU Heating/22,000 BTU Cooling Outdoor Unit

Product Description

The Fujitsu General America AOU24RLXFZ is an outdoor unit designed for multi-zone cooling and heating applications. This unit offers a nominal cooling capacity of twenty-two thousand BTU and a heating capacity of twenty-four thousand BTU, making it suitable for various residential and commercial environments.

• Inverter technology enables efficient operation.
• Zoning capability allows for customized temperature control in multiple rooms.
• Versatile design supports various indoor units from two to three connections.

Product Highlights

The AOU24RLXFZ is designed to adapt to different indoor environments while maintaining energy efficiency.

Product Information

Standard Information

• Brand: Fujitsu General America
• MPN: AOU24RLXFZ

Technical Specifications

• Nominal Cooling Capacity: 22,000 BTU/h
• Nominal Heating Capacity: 24,000 BTU/h
• Voltage Range: 208 - 230 (+/- 10%) VAC
• Minimum Circuit Ampacity: 17 A
• Maximum Fuse Size: 20 A
• Refrigerant: R410a
• Operating Temperature Range (Cooling): 14 to 115 degrees F
• Operating Temperature Range (Heating): 5 to 75 degrees F
