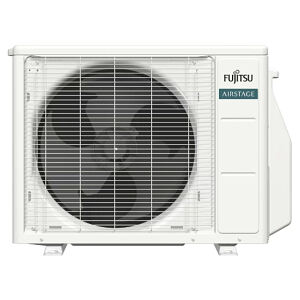

Fujitsu AOLH09KNAS1 Airstage Altair 300 Compact Outdoor Unit 9,000 BTU/h 0.75-Ton 115V

Product Description

The FUJITSU AOLH09KNAS1 is a 9,000 BTU/h 0.75-Ton 115V Compact Outdoor Unit from the Airstage Altair 300 Series inverter heat pump line. Designed for everyday comfort, this system features advanced fan technology for consistent and quiet operation, with sound levels as low as 20dB. Its slim design and extended line set lengths facilitate versatile installation. It operates within a cooling range of 50°F to 122°F and a heating range of 5°F to 75°F.

• Features Economy Mode and Auto Changeover for optimized performance and energy efficiency.
• Includes Auto Restart/Reset and Dry Mode for convenience and effective humidity control.
• Equipped with Hydro Fin Coating and Ductless Technology for durability and efficient operation.

Product Highlights

Compact outdoor unit with advanced fan technology for quiet and efficient operation, offering versatile installation options.

Product Information

Standard Information

• Brand: FUJITSU
• Manufacturer Part Number: AOLH09KNAS1

Technical Specifications

• Sound Level: As low as 20dB
• SEER2: As high as 20.0 BTU/hW
• HSPF2: As high as 9.0 BTU/hW
• Energy Star: No
• Cooling Operating Range: 50°F to 122°F (10°C to 50°C)
• Heating Operating Range: 5°F to 75°F (-15°C to 24°C)
• Capacity: 9,000 BTU/h (0.75-Ton)
• Unit Type: Compact Outdoor Unit
• Refrigerant Type: R-32
• Compressor Type: Inverter Driven
• COP Rating: 3.56
• EER Rating: 10.55
• Flow Rate: Cooling : 971 cfm/Heating : 853 cfm
• Maximum Piping Length: 66 ft
• Power Source: 115 V, 60 Hz
• Series: H-Series
• Sub-Brand: Airstage
• Suction Line Size: 3/8 in
