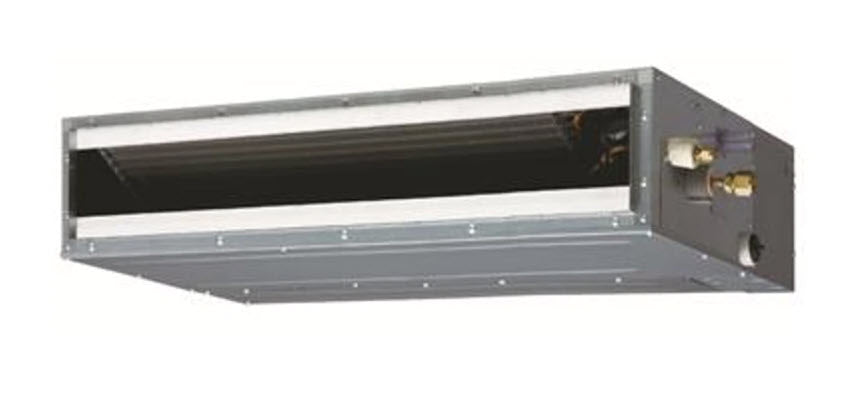

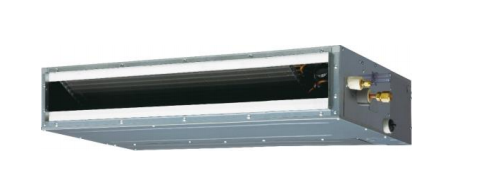

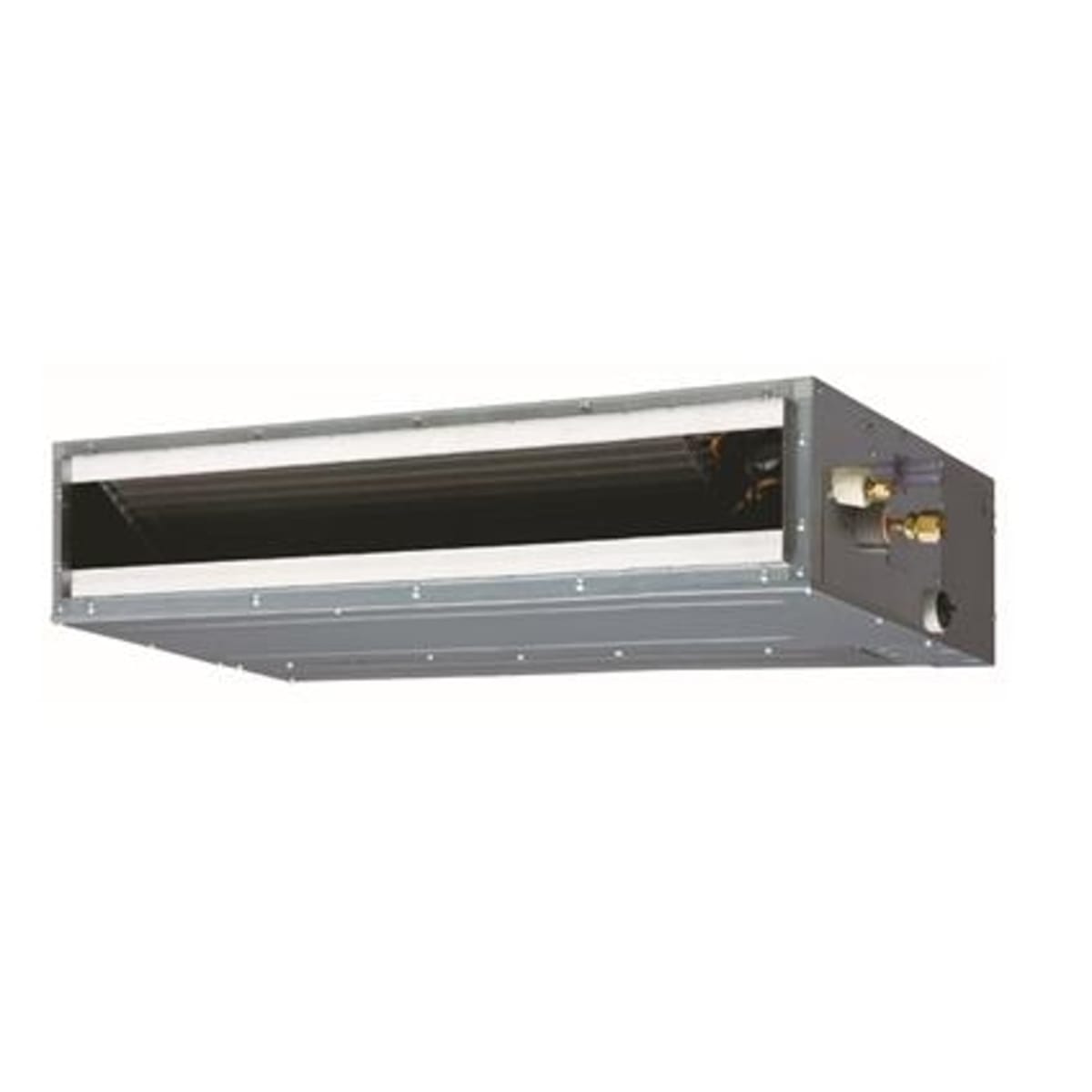

Fujitsu ADUH24LUAS1 Concealed Duct Indoor Unit 24000 BTU Multi Zone R-410A

Product Description

The Fujitsu General America ADUH24LUAS1 is a concealed duct indoor unit intended for mini-split multi-zone heating and cooling systems. This unit integrates within ductwork, maintaining a low profile while effectively providing temperature control. It features a wired remote for user convenience and operates using R-410A refrigerant.

• Concealed duct design offers discreet installation.
• Supports both heating and cooling operations.
• Compatible with multi-zone setups.

Product Highlights

Efficient and versatile, this indoor unit is perfect for residential or commercial use, offering customizable comfort in various spaces.

Product Information

Standard Information

• Product Line: Halcyon
• Product Category: Mini Split System Components

Technical Specifications

• Model Number: ADUH24LUAS1
• Cooling BTU: 24000 BTU
• Heating BTU: 25600 BTU
• Maximum Air Flow: 783 CFM
• Minimum Air Flow: 606 CFM
• Minimum Sound Level: 29 dB
• Maximum Sound Level: 35 dB
• Voltage: 208/230 Volts
• Frequency: 60 Hz
• Height: 7 13/16 inches
• Width: 43 5/16 inches
• Depth: 24 7/16 inches
• Weight: 53 pounds
• Input Power: 111 W
• Fan Speed Stages: 4+Auto
• Static Pressure: 0 to 0.2 W.C
