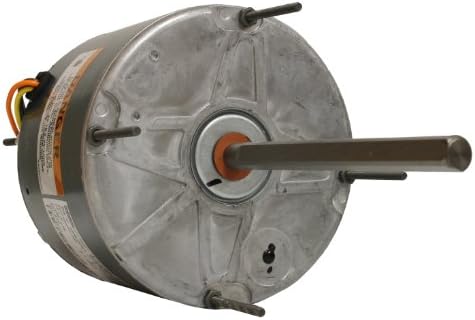

Genteq Motors D794 5.6 inches 1/5hp 208-230v 825rpm

Product Description

The GENTEQ MOTORS D794 is a 5.6" condenser fan motor operating at 208-230V and 825 RPM. This single-phase, permanent split capacitor (PSC) motor is totally enclosed with a thermally protected design. It features a 1/2" diameter shaft with double flat and 55" leads. Designed for continuous air over duty and all angle mount bearings.

• 5.6-Inch Frame Diameter
• 1/5 HP
• 825 RPM

Product Highlights

The GENTEQ MOTORS D794 is ideal for condenser fan applications. It features a robust design with ball bearings, thermal protection, and Class B insulation.

Product Information

Standard Information

• Brand: GENTEQ MOTORS
• Manufacturer Part Number: D794
• Country of Origin: India

Technical Specifications

• Speed: 825 RPM
• Voltage: 208-230 V
• Horsepower: 0.2 Horsepower
• Brand: GENTEQ MOTORS
• Part Number: D794
• Product Dimensions: 13.25 x 5.25 x 5.25 inches
• Item model number: D794
• Is Discontinued By Manufacturer: No
• Shape: Round
• Item Package Quantity: 1
• Batteries Included?: No
• Batteries Required?: No
• Phase: 1
• Output HP: 1/5 Hp
• Output KW: 0.15 kW
• Service Factor: 1
• Frame: 48
• Enclosure: Totally Enclosed Air Over
• Thermal Protection: Thermally Protected
• Ambient Temperature: 60 °C
• Frequency: 60 Hz
• Current: 1.30 A
• Duty: Continuous Air Over
• Insulation Class: B
• UL: Recognized
• CSA: Y
• CE: N
• Number of Speeds: 1
• Electrical Type: Permanent Split Capacitor
• Poles: 8
• Rotation: Counterclockwise/Clockwise
• Mounting: Extended Studs
• Motor Orientation: Any
• Drive End Bearing: Ball
• Opp Drive End Bearing: Ball
• Frame Material: Rolled Steel
• Shaft Type: Double Flat
• Overall Length: 10.56 in
• Frame Length: 3.82 in
• Shaft Diameter: 0.500 in
• Shaft Extension: 6.00 in
• MPN: D794
