Frigidaire IM117000 Ice Maker Kit Top Mount Refrigerator

Product Description

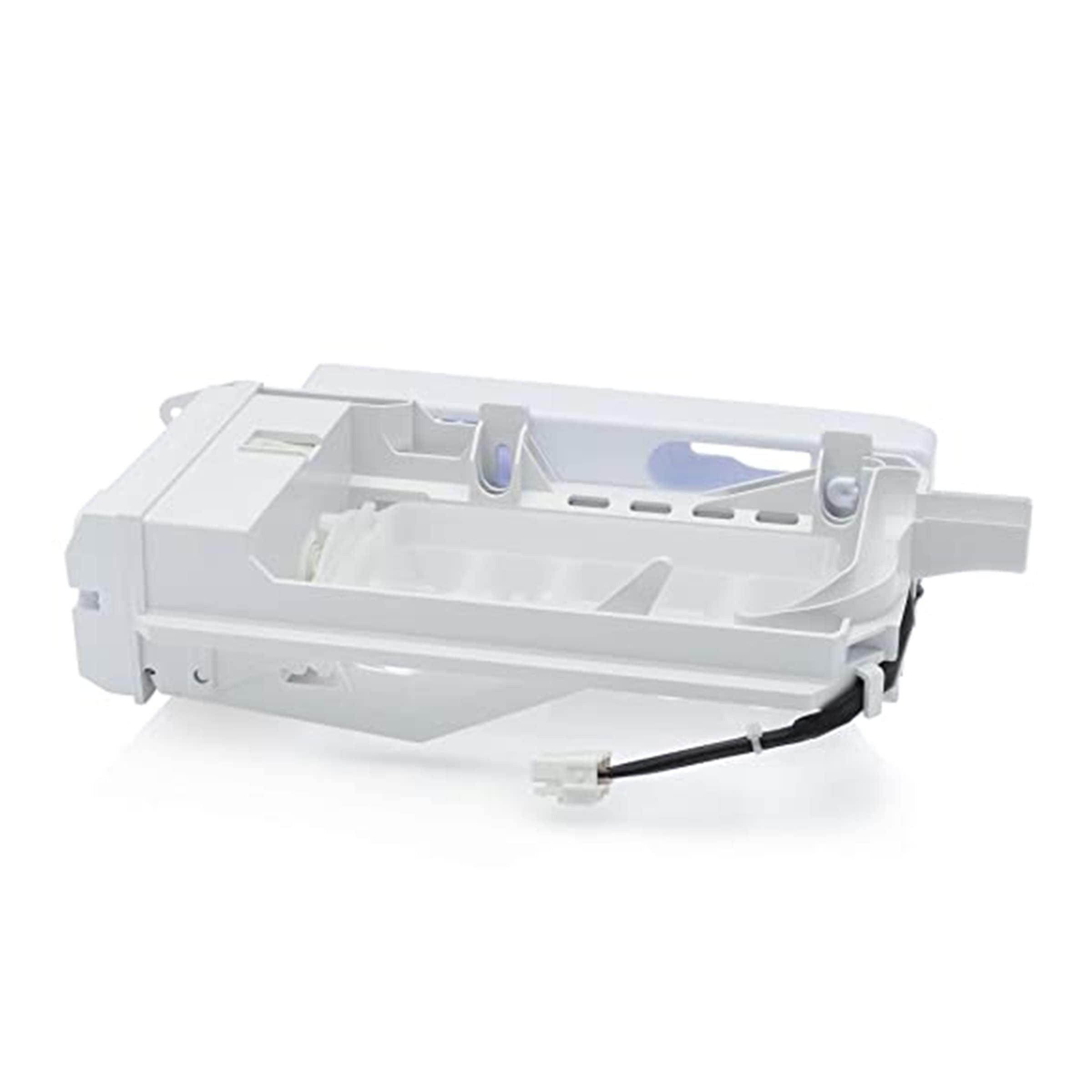

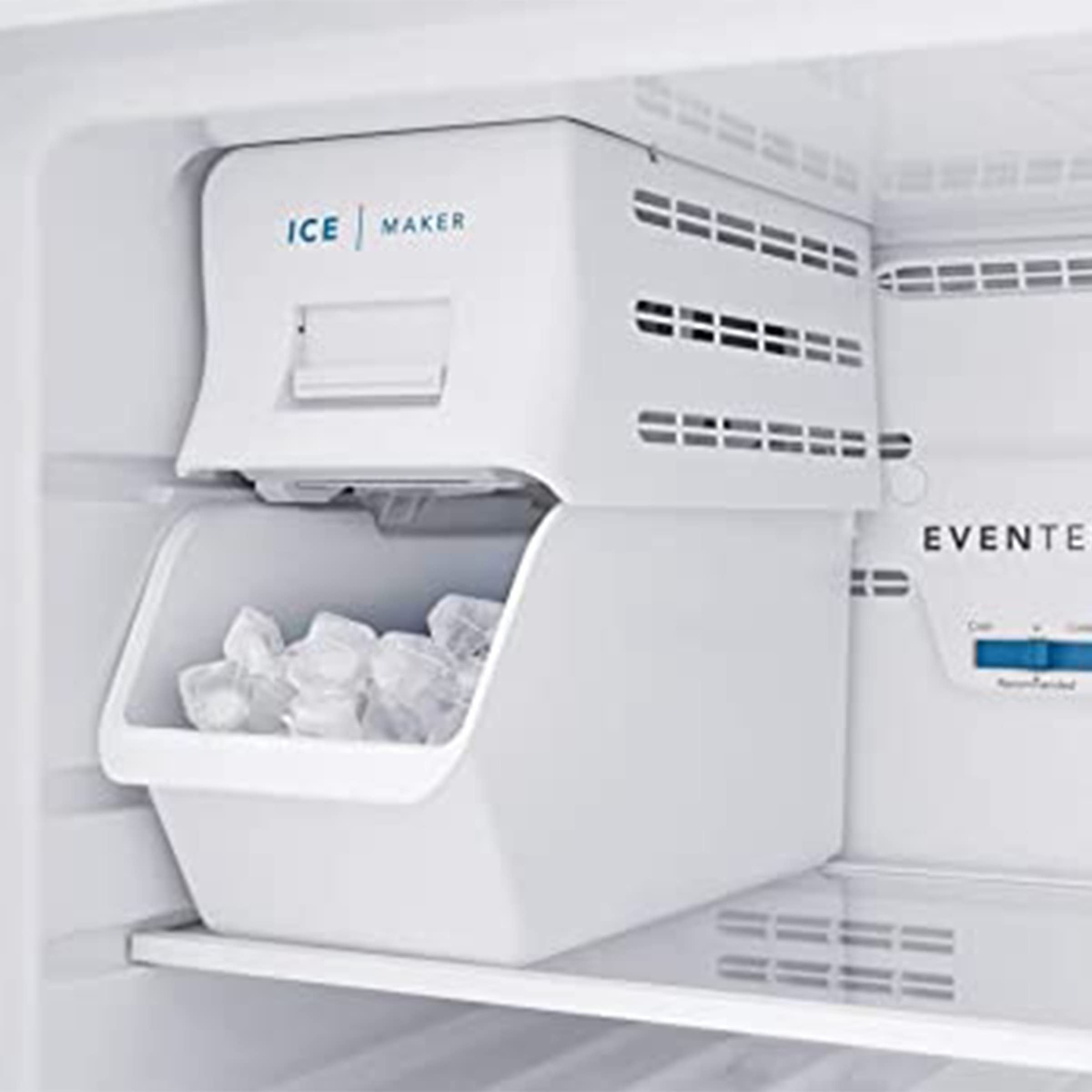

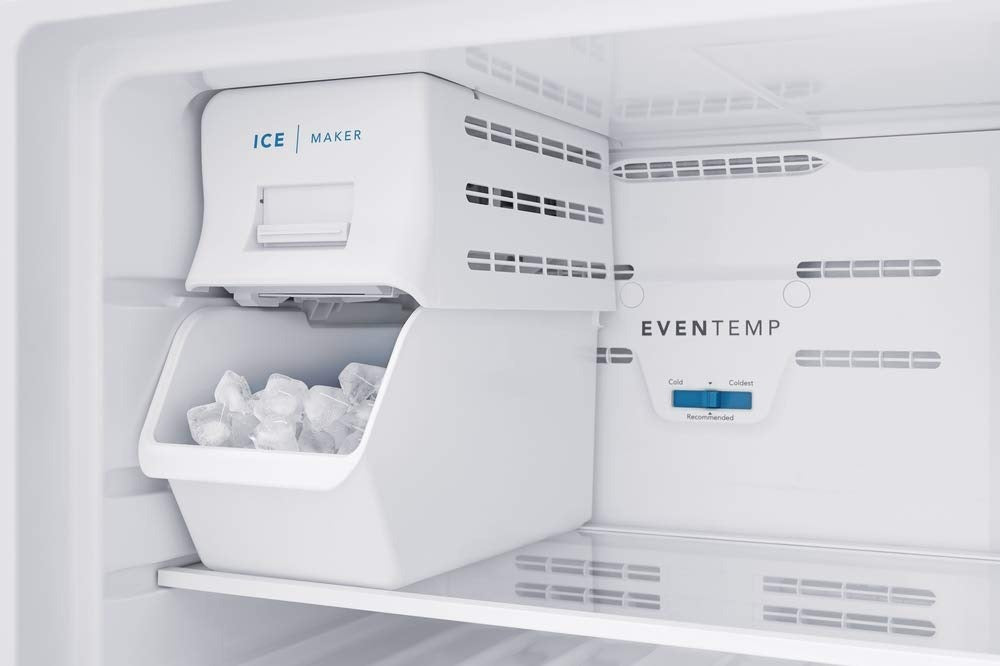

The FRIGIDAIRE IM117000 is a genuine OEM ice maker kit designed to add ice-making capability to compatible top mount refrigerators. The kit includes the ice maker unit, water valve, and installation hardware needed for a complete install. Once fitted, it freezes, releases, and stores ice automatically, producing up to 2 pounds of ice per day. A built-in sensor arm activates the cycle when ice is low and shuts the unit off when the bin reaches capacity. The included ice bin holds up to 5 pounds of ice. The kit is white in color and constructed of plastic. Appliance technicians and experienced service personnel are the typical installers.

This kit is intended for top mount refrigerators that are factory-prepared for an ice maker add-on but shipped without one. It eliminates the need for manual ice trays by providing a continuous, automatic supply of ice. The sensor arm mechanism ensures the ice maker does not overfill the bin, making it a self-regulating system once properly installed. Always verify the required part number against your appliance service manual or by contacting FRIGIDAIRE directly before ordering.

Key Features

• Genuine OEM FRIGIDAIRE replacement and add-on kit
• Produces up to 2 pounds of ice per day
• Included ice bin holds up to 5 pounds of ice
• Sensor arm stops production automatically when bin is full and restarts when ice is low

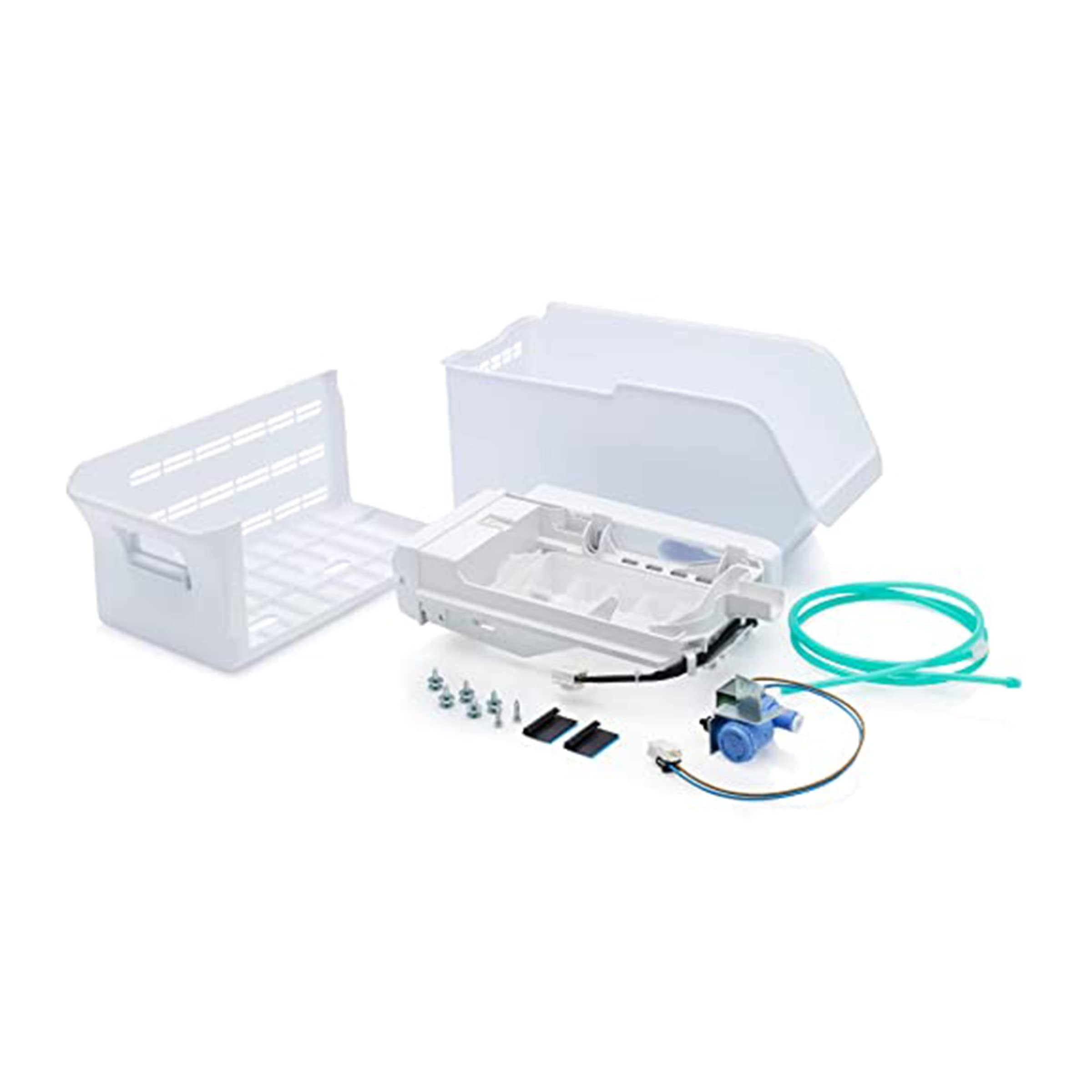

• Kit includes ice maker, water valve, and installation hardware
• White finish, plastic construction

Compatibility

Designed for compatible FRIGIDAIRE top mount refrigerators that are pre-wired and plumbed for an ice maker addition. Always validate the required part number using your appliance service manual or by contacting the manufacturer before installation.

Installation Notes

Installation should be performed by a qualified appliance technician or experienced service personnel. Before beginning work, disconnect the refrigerator from its power source and shut off the water supply line. The water valve connection requires a properly sized supply line and shutoff valve in accordance with local plumbing codes. Do not force the sensor arm or bypass the automatic shutoff mechanism during or after installation.
