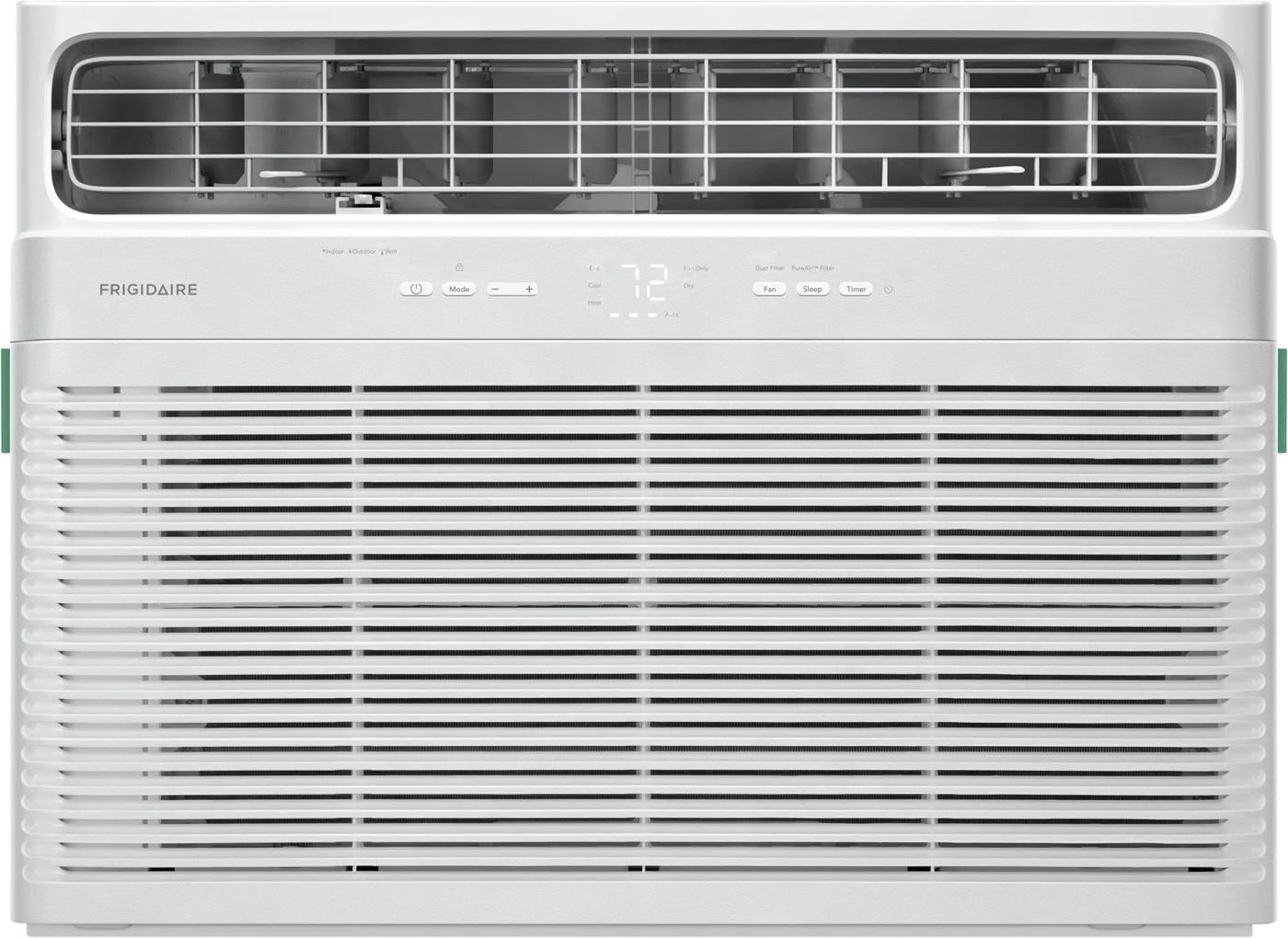

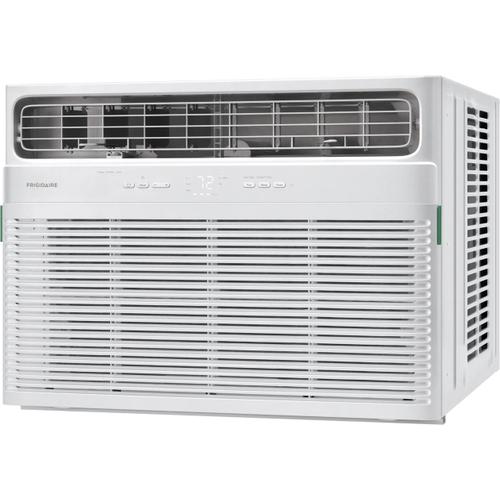

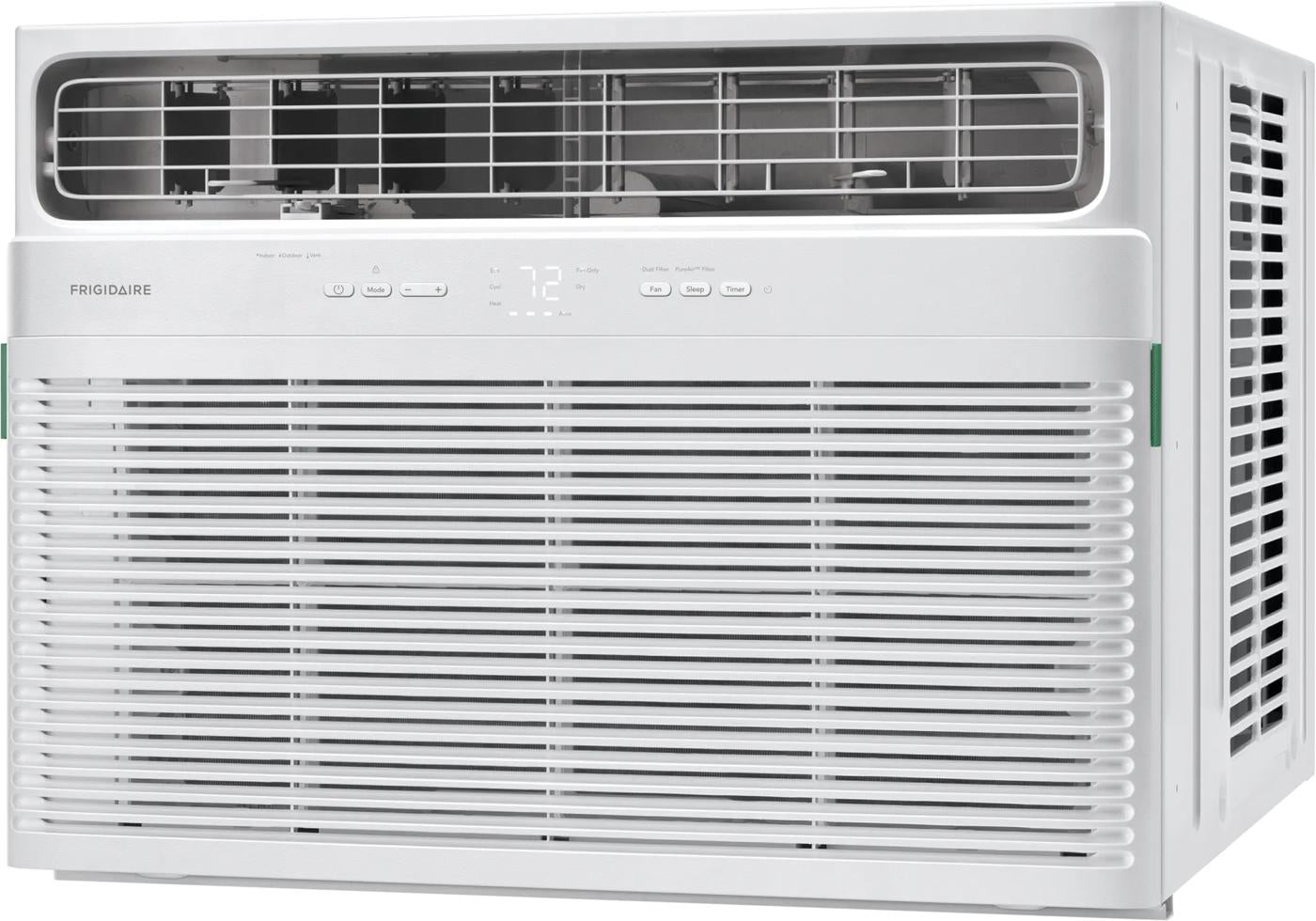

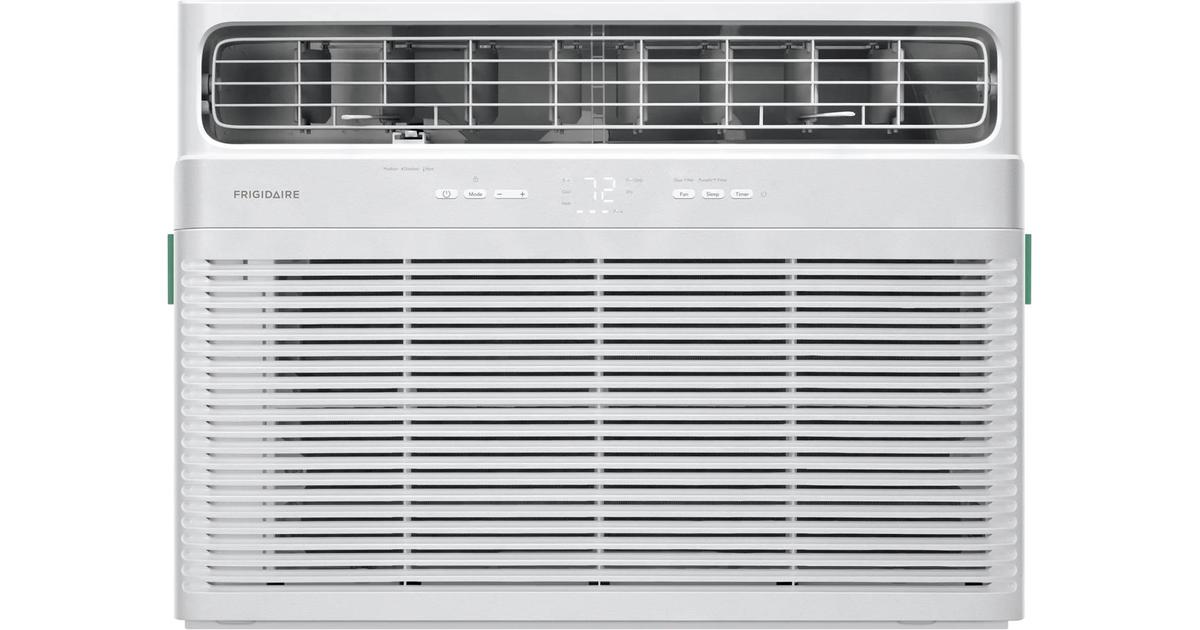

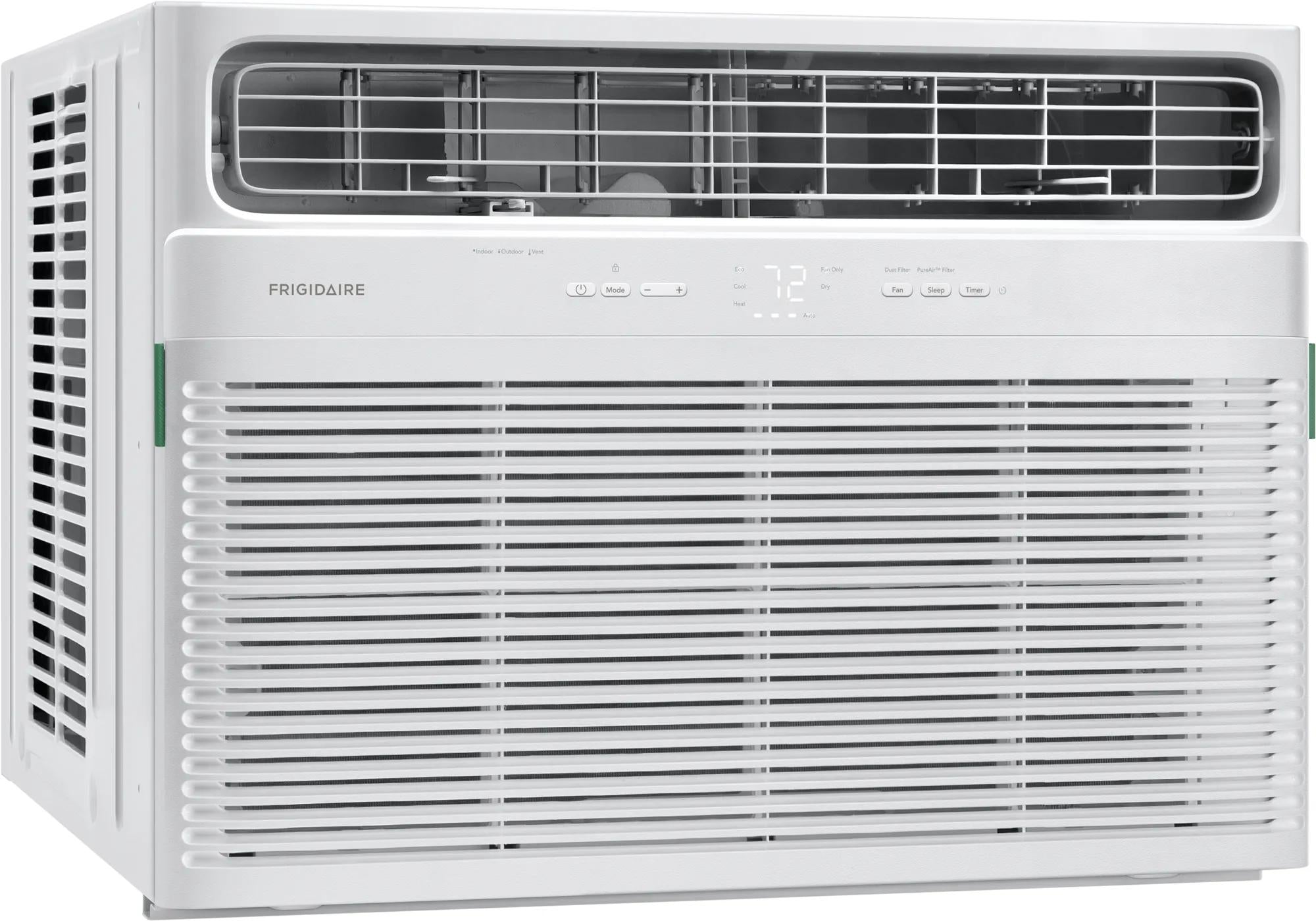

Frigidaire FHWH234WB2 23,200 BTU Window Room Air Conditioner 16,000 BTU Heat (Window/Wall 208/230V)

Product Description

The Frigidaire FHWH234WB2 is a 23,200 BTU window-mounted room air conditioner with 16,000 BTU supplemental electric heat designed for 208/230V operation. It cools areas up to 1,600 sq. ft., provides up to 810 CFM airflow with three fan speeds, and includes a slide-out chassis for easier installation. Controls are electronic with an included remote, and the unit has a washable front-access dust filter, 24-hour timer, auto-restart, and eco, sleep and dry modes.

• 23,200 BTU cooling and 16,000 BTU supplemental electric heat; CEER 9.4; coverage up to 1,600 sq. ft.; dehumidifies 6 pints per hour
• Electrical: 208/230 V with LCDI 6-30P plug; 14.8 A (cool), 22 A (heat); 2380 W (cool input) and 4800 W (heat input)
• Installation and controls: slide-out chassis for easier installation, front filter access with washable dust filter, electronic controls with remote, 24-hour programmable timer and auto-restart

Product Highlights

Window-mounted 23,200 BTU cooling with 16,000 BTU supplemental heat and slide-out chassis

Product Information

Standard Information

• Brand: FRIGIDAIRE
• Manufacturer Part Number: FHWH234WB2

Technical Specifications

• Brand: Frigidaire
• MPN: FHWH234WB2
• Model: FHWH234WB2
• Type: Window room air conditioner
• Style: Window/wall
• Cooling Capacity: 23,200 BTU
• Heating Capacity: 16,000 BTU (supplemental electric heat)
• Combined Energy Efficiency Ratio (CEER): 9.4
• Dehumidification Capacity: 6 pints per hour
• Cool Area: 1600 sq. ft.
• Air Flow (CFM): 686 / 746 / 810 CFM
• Fan Speeds: 3 (cool), 3 (fan), 3 (heat)
• Noise Level (dBA): 56 / 58 / 59.5 dBA (low/med/high)
• Input Voltage: 208/230 V
• Plug Type: LCDI 6-30P
• Current (Amps): 14.8 A (cool), 22 A (electrical heat)
• Power (Watts): 2380 W (cool input), 4800 W (heat input)
• Installation Type: Window mounted, slide-out chassis
• Window Width Range: 26 1/2" - 40 1/2"
• Window Height Minimum: 18 1/2"
• Dimensions (W x H x D): 23 3/4" x 18" x 25 1/2"
• Product Weight: 121.03 lbs
• Refrigerant Type: R-32
• Filter: Washable dust filter; compatible with PureAir advanced filter (sold separately)
• Filter Access Location: Front
• Slide Out Chassis: Yes
• Controls: Electronic
• Remote Control: Included
• Timer: 24-hour programmable (half-hour increments)
• Modes: Eco, Sleep, Dry, Energy saver, Auto fan, Low voltage start-up
• Auto Restart: Yes
• Fresh Air Option: Yes
• Exhaust Vent: Yes
• Air Discharge: Front
• Air Direction Control: Manual
• Power Cord Length: 60 inches
• Operating Temperature Range: 60 F to 90 F
• Certifications: CSA listed; Energy Efficiency Verification (Canada)
• ENERGY STAR Certified: No
• Wi-Fi Enabled: No
• Prop 65 Label: Yes
