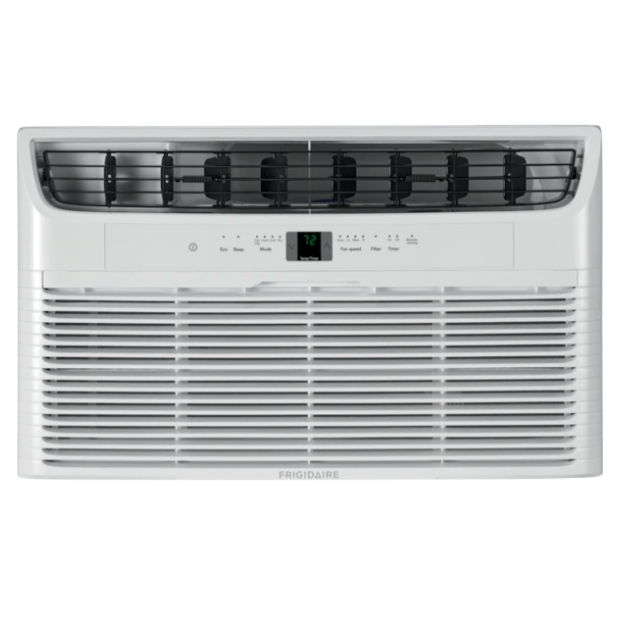

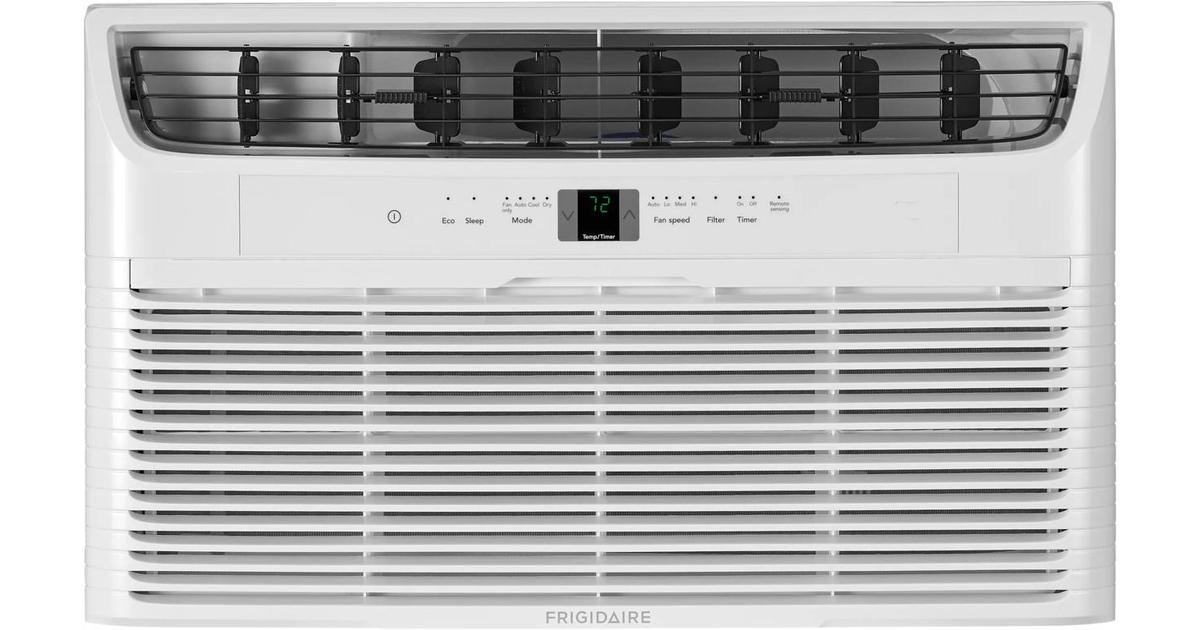

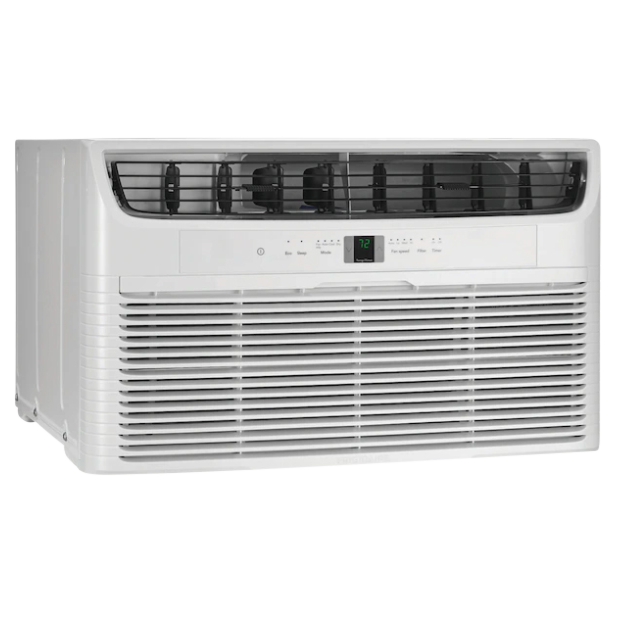

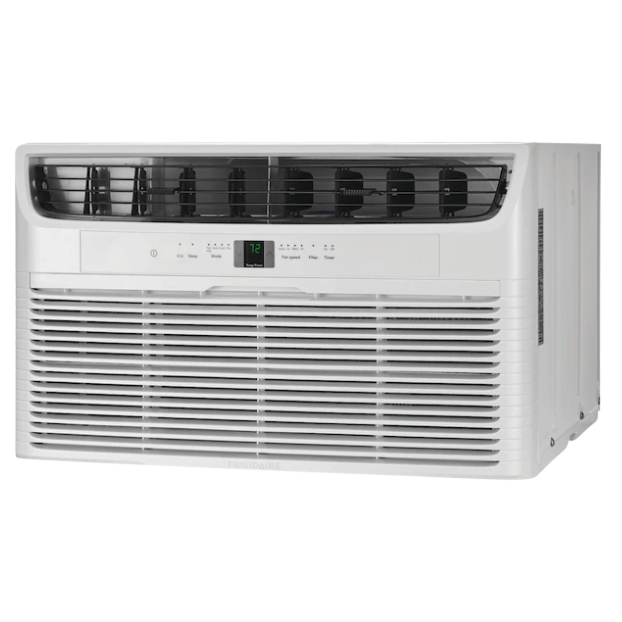

Frigidaire FHTE123WA2 Thru the wall air conditioner 12,000 Btu (24 in W) Replacement MPN N/A

Product Description

Frigidaire FHTE123WA2 is a thru-the-wall air conditioner providing 12,000 Btu/h cooling and 10,600 Btu/h electric heating for residential spaces around 450 to 550 sq ft. The unit runs on 230 V, 1 phase, 60 Hz and features a three-speed fan, electronic controls with full-function remote, 9.5 EER/CEER efficiency, 3.5 pints per hour dehumidification, a 5 ft LCDI 6-20P power cord, and includes a universal trim kit; mounting sleeve is not included.

• 12,000 Btu/h cooling and 10,600 Btu/h electric supplemental heating; suitable for ~450�550 sq ft
• Electrical: 230 V, 1 phase, 60 Hz; 3450 Watts; 5.9 / 15.0 Amps (cooling / electric heat); LCDI 6-20P plug with 5 ft cord

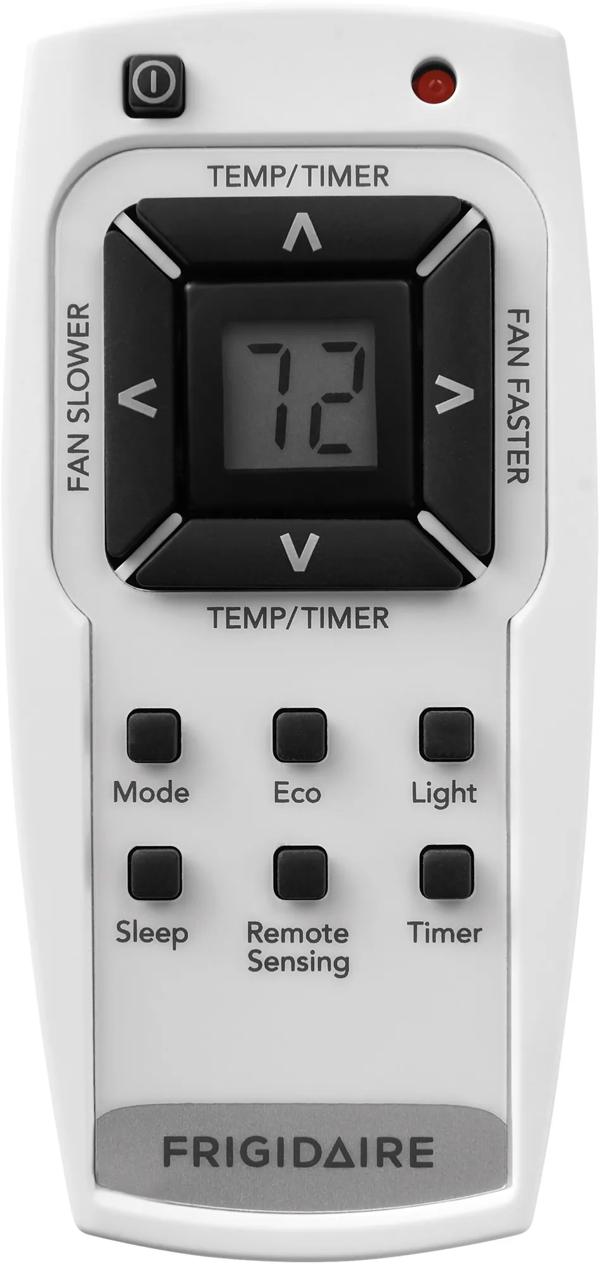

• Electronic controls with full-function remote, 3 fan speeds, 24-hour programmable timer, and 3.5 pt/hr dehumidification
• Fixed chassis thru-the-wall design, universal trim kit included (mounting sleeve not included)
• Refrigerant: R-410A; UL Listed; Front dust filter with optional advanced PureAir filter

Product Highlights

Thru-the-wall unit with 12,000 Btu cooling, 10,600 Btu electric heat, 3 fan speeds, electronic controls with remote, and universal trim kit

Product Information

Standard Information

• Brand: FRIGIDAIRE
• Manufacturer Part Number: FHTE123WA2
• Country of Origin: China

Technical Specifications

• Brand: Frigidaire
• Model / MPN: FHTE123WA2
• Product type: Thru the wall air conditioner
• Duty rating: Residential grade
• Cooling capacity: 12,000 Btu/h
• Heating capacity (electric): 10,600 Btu/h
• Coverage area: 450 to 550 sq ft (average)
• Input Voltage: 230 V
• Phase: 1
• Frequency: 60 Hz
• Power (Watts): 3450 W
• Amps: 5.9 / 15.0 Amps (cooling / electric heat)
• EER: 9.5
• CEER: 9.5
• Refrigerant type: R-410A
• Number of fan speeds: 3
• Control type: Electronic
• Remote control: Full-function remote
• Dehumidification rate: 3.5 pt/hr
• Power cord length: 5 ft
• Plug configuration: LCDI, 6-20P
• Chassis type: Fixed
• Dimensions (W x D x H): 24 in x 21.5 in x 14.5 in
• Fits wall sleeve (H x W x D): 15 5/8 in x 25 5/16 in x (depth as specified)
• Max wall thickness: 18 in
• Includes: Universal trim kit
• Mounting sleeve included: No
• Standards / certifications: UL Listed
• Country of origin: China
• Product weight: 75 lbs
• Energy Star Certified: No
• Auto restart: Yes
• 24-hour programmable timer: Yes
• Filter: Front dust filter; optional advanced PureAir filter
