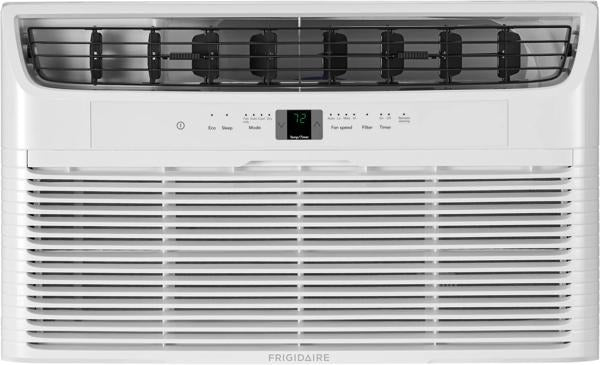

Frigidaire FHTE103WA2 Thru-wall Ac 10000 Btu Heat Cool

Product Description

The FRIGIDAIRE FHTE103WA2 is a thru-the-wall room air conditioner with both cooling and supplemental heating capability, making it a dual-mode comfort solution for year-round use. It delivers 10,000 BTU of cooling capacity and 10,600 BTU of heating capacity, covering spaces up to 450 square feet. The unit features a digital control interface, a remote control, multi-speed fan operation, and a programmable timer. A washable filter captures airborne dust and helps maintain unit efficiency over time. HVAC technicians and qualified installers handle the wall sleeve installation and electrical connection.

The FHTE103WA2 is suited for residential applications where a single unit must handle both heating and cooling without a central system. Typical install scenarios include bedrooms, additions, sunrooms, and older construction where ducted systems are not present. The unit mounts through an exterior wall using a dedicated sleeve and connects via a 6-20P plug to a 240-volt dedicated circuit. A sleep mode allows the unit to adjust temperature gradually overnight, reducing energy draw during off-peak hours.

Key Features

• 10,000 BTU cooling capacity rated for spaces up to 450 square feet
• 10,600 BTU supplemental heating for year-round single-unit climate control
• Digital controls with included remote for operation from across the room
• Multi-speed fan with programmable timer for scheduled operation
• Sleep mode adjusts temperature automatically for overnight comfort
• Easy-clean filter designed for routine removal and washing

Compatibility

Designed as an OEM thru-the-wall installation unit for residential room air conditioning applications requiring both cooling and supplemental heating from a single chassis.

Installation Notes

Installation should be performed by a qualified HVAC technician or licensed contractor familiar with thru-the-wall air conditioner sleeve requirements and local building codes. The unit requires a dedicated 240-volt branch circuit terminated with a 6-20P receptacle in compliance with NEC guidelines. Power must be fully disconnected before any service or filter maintenance. Do not operate the unit without the wall sleeve properly secured and sealed to prevent air infiltration and moisture intrusion.

Technical Specifications

• Cooling Capacity: 10,000 BTU/h
• Heating Capacity: 10,600 BTU/h
• Coverage Area: 450 square feet
• Chassis Type: Thru the Wall
• Control Type: Digital
• Remote Control Included: Yes
• WiFi: No
• Plug Type: 6-20P
• Width: 24 inches
• Depth: 21.5 inches
• Height: 14.5 inches

Standard Information

• Brand: FRIGIDAIRE
• Manufacturer Part Number: FHTE103WA2
