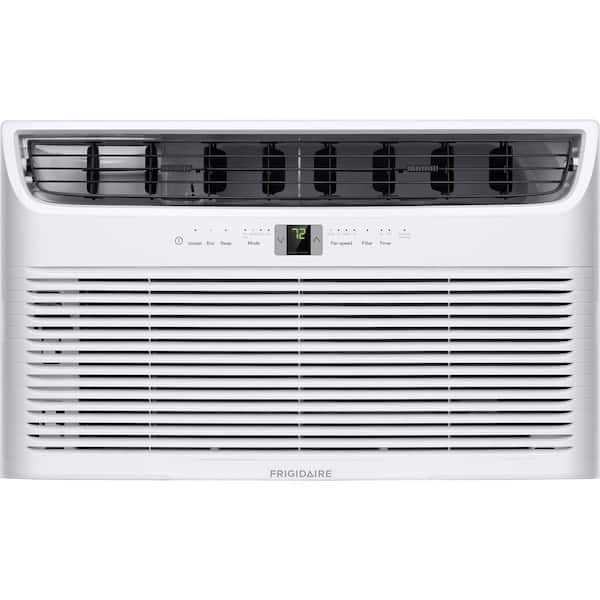

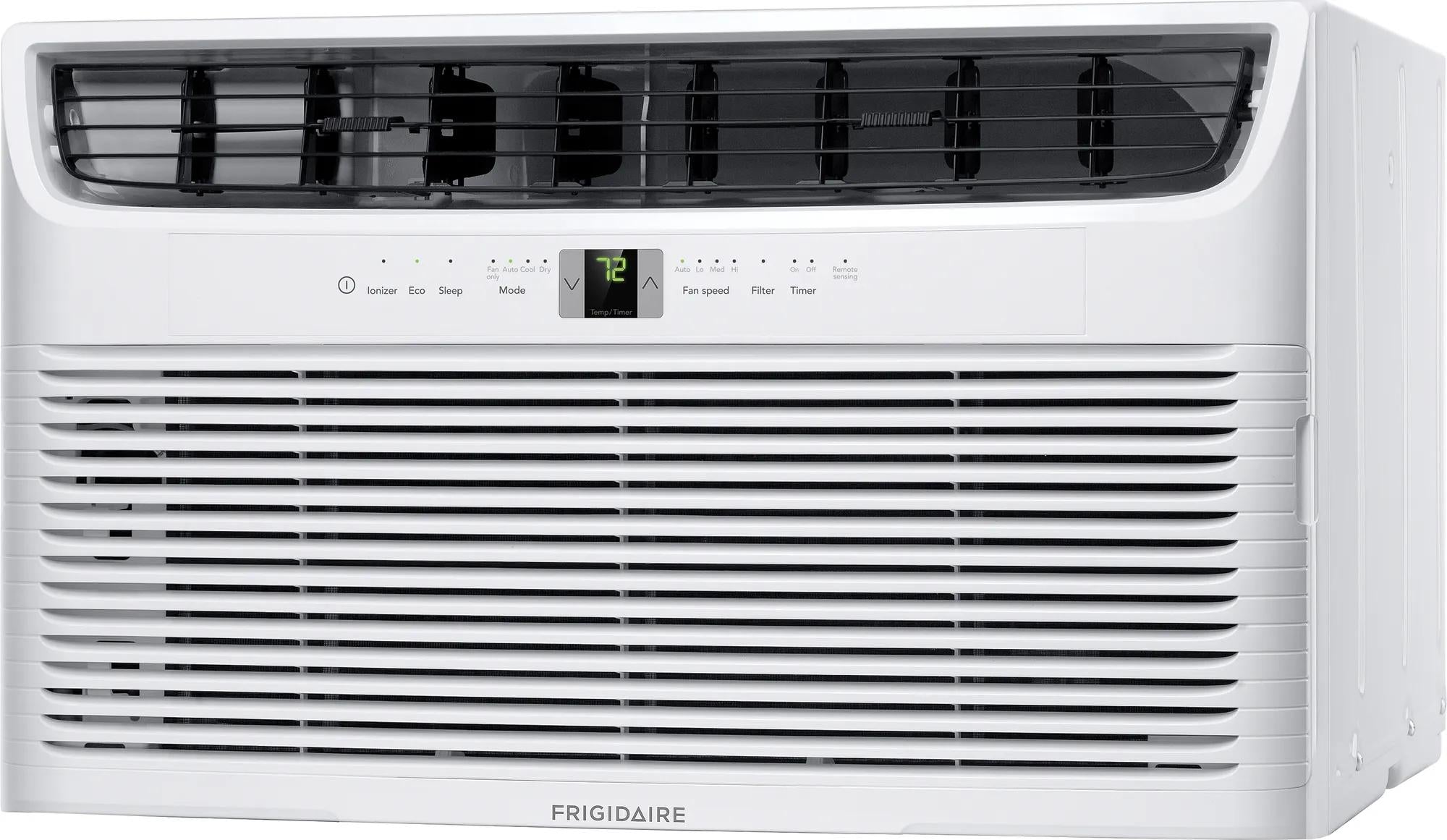

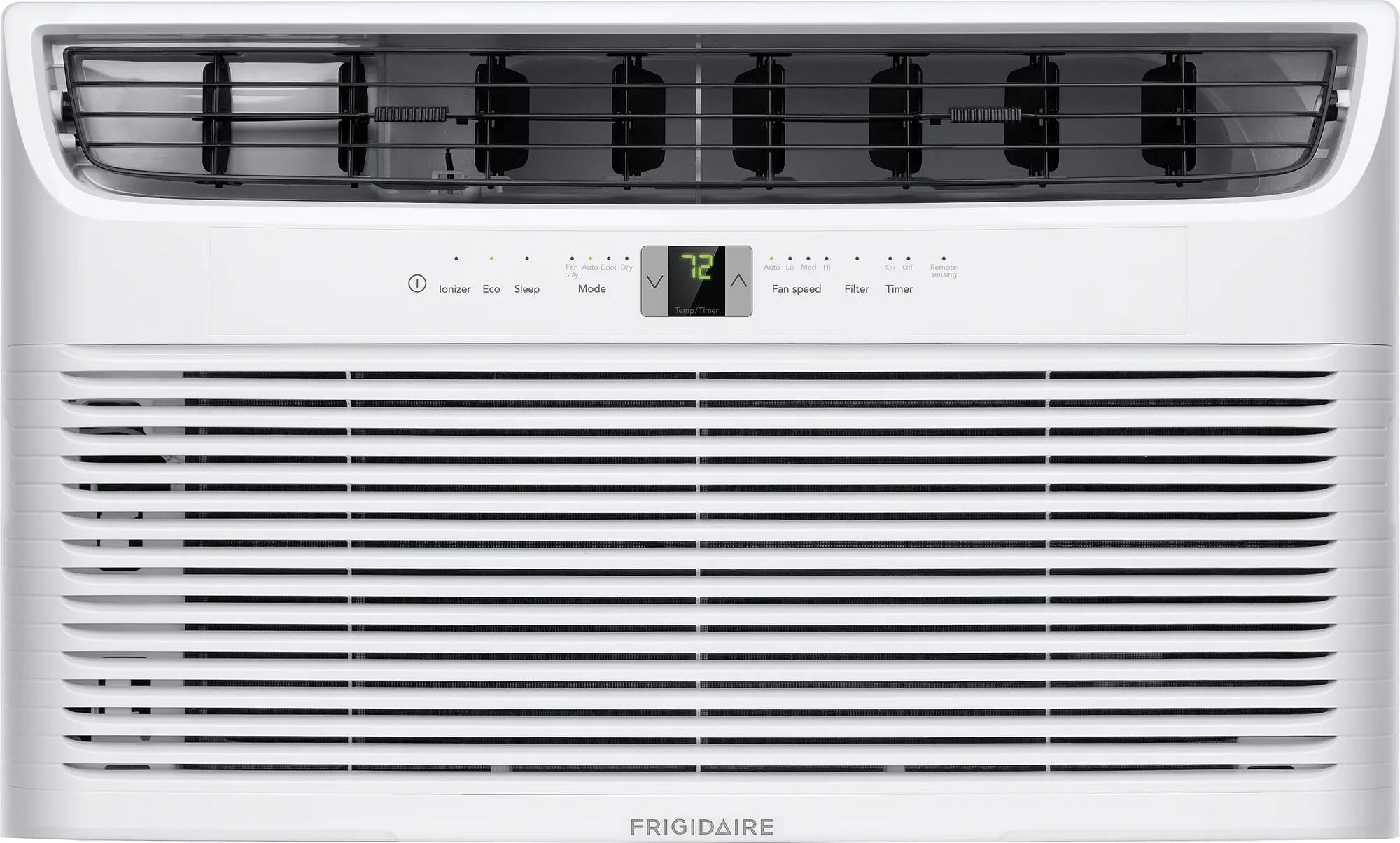

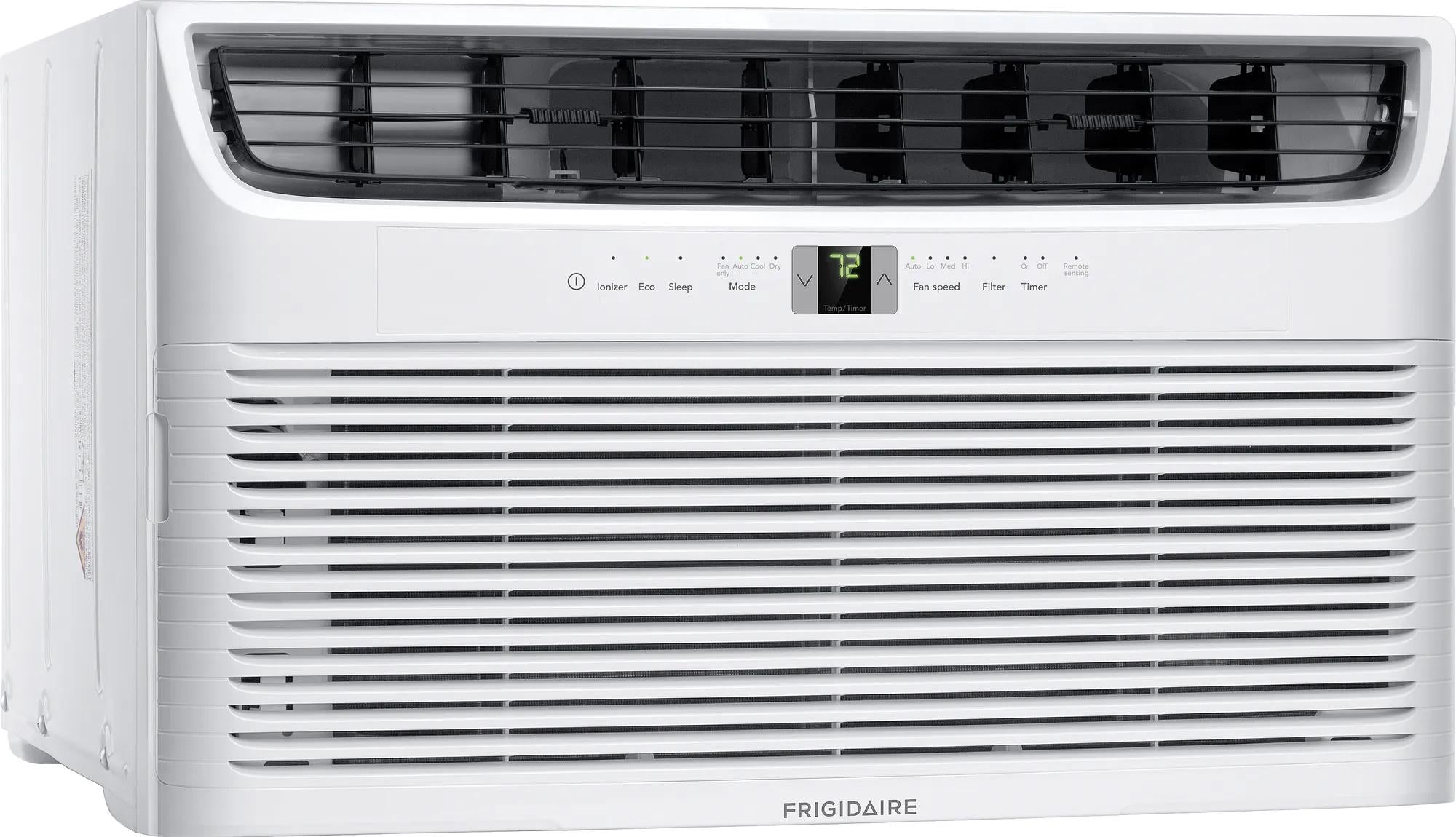

Frigidaire FHTC123WB1 12,000 BTU Through the Wall Room Air Conditioner 115V

Product Description

The Frigidaire FHTC123WB1 12,000 BTU Through the Wall Room Air Conditioner is ideal for use in rooms up to 550 square feet. It features an electronic touch pad, full function remote, and a three speed fan. Sleep mode steps up as the evening temperatures dip, keeping you comfortable all night.

• Enjoy more cooling flexibility with 3-different fan speeds
• Reduce airborne particles to improve your comfort
• Capture dust from the air with easy-to-clean washable dust filter

Product Highlights

This 115V unit includes features like Remote Temperature Control, Clean Filter, and Automatic Restart. It uses R-32 Refrigerant and has a higher pressure ratio.

Product Information

Standard Information

• Brand: FRIGIDAIRE
• Manufacturer Part Number: FHTC123WB1
• Country of Origin: China

Technical Specifications

• Installation Type: Through-the-Wall
• Sleeve Required for Install: Yes
• Fits Sleeve Size (in.): 26
• Trim Kit / Installation Kit: Included
• Refrigerant Type: R32
• Compressor: Standard
• Energy Star: No
• Dehumidification (pts/hr): 3.3
• CFMs: 233 / 259 / 283 (L / M / H)
• Noise Level (dBA): 55.3 / 56.8 / 59 (L / M / H)
• Includes Heat Mode: No
• Cooling BTUs: 12000
• EER: NA
• CEER: 9.5
• Cooling Amps: 11.0
• Cooling Watts: 1220
• Vent Location: Front Top
• Make-Up Air: No
• Energy Saver Mode: Yes
• Fan Speeds: 3
• Control Type: Electronic/Digital
• Filter Access: Slide-Out
• Connectivity: Not WiFi Compatible
• 24 Hour ON/OFF Timer: Yes
• Remote Control: Yes
• Fresh Air Intake: No
• Sleep Mode: Yes
• Max. Wall Thickness (in.): 18
• Wall Cut-Out Width (in.): 25.938
• Wall Cut-Out Height (in.): 15.625
• Certifications: CSA, cUL, UL
• Voltage: 115V AC
• Plug Face (NEMA): 5-15P
• Circuit Breaker Amps: 15
• Cord Length (in.): 72
• Brand: Frigidaire
• Cooling Power: 12000 British Thermal Units
• Special Feature: Air Ionizer, Dehumidifier, Filter Reminder, Remote Controlled
• Seasonal Energy Efficiency Ratio (SEER): 13
• Noise Level: 59 Decibels
• Filter Type: Mesh Filter
• Inverter Type: No Inverter
• Is Outdoor Unit Required: No
• Air Conditioner Application: Residential Indoor
• Power Source: Corded Electric
• Wattage: 1220 watts
• Window Opening Minimum Height: 14.5 Inches
• Window Opening Minimum Width: 24 Inches
• Floor Area: 550 Square Feet
• Room Type: Bedroom, Living Room
• Form Factor: Through The Wall
• AC Air CFM (Low): 233 CFM
• AC Air CFM (Med): 259 CFM
• AC Air CFM (High): 283 CFM
• Air Direction Control: Manual
• Air Discharge: Front of Unit
• Fan Speeds - Cool: 3
• Fan Speeds - Fan: 3
• Motor RPM (Low): 1230 RPM
• Motor RPM (Med): 1360 RPM
• Motor RPM (High): 1480 RPM
• Noise Level dBA (Low): 55.3 dBA
• Noise Level dBA (Med): 56.8 dBA
• Noise Level dBA (High): 59 dBA
• Dust Air Filter: Yes
• Filter Access Location: Front
• Filter Check Indicator: Yes
• Option for Advanced Filtration: Yes
• Rear Grill: Yes
• Supplemental Heat: No
• Accessories Sold Separately: PureAir Filter
• Wi-Fi Enabled: No
• Sleeve Height: 15 3/4"
• Sleeve Width: 26"
• Sleeve Depth: 21 1/2"
• Amps (Cool): 11 Amps
• Plug Type: LCDI 5-15P
• Voltage Rating: 115/120v
• Watts (Cool): 1220 Watts
• Auto Fan: Yes
• Auto Restart: Yes
• Clean Air Ionizer: Yes
• Dry Mode: Yes
• Low Voltage Start-up: Yes
• Prop 65 Label: Yes
• Trim Kit: Yes
• Power Cord Length: 72"
• Cool Area: 550 sq.
• BTU (Cool): 12000 BTU
• Combined Energy Efficiency Ratio: 9.5
• Dehumidification - Pints per Hour: 3.3
• CSA Listed: Yes
• cUL Listed: Yes
• Energy Efficiency Verification (Canada): Yes
• UL Listed: Yes
• Manufacturer Part Number: FHTC123WB1
• Maximum Average Coverage Area: 550 sq ft
• Chassis Type: Fixed
• Compressor Technology: Fixed Output (Standard)
• Maximum Cooling Capacity: 12,000 BtuH
• Duty Rating: Residential Grade
• For Sleeve Depth: 21-1/2 in
• For Sleeve Height: 15-3/4 in
• For Sleeve Width: 26 in
• Mounting Sleeve Included: Sleeve Not Included
• NEMA Plug Configuration: 5-15P
• Operation Mode: Cooling Only
• Remote Control Functions: Temperature
