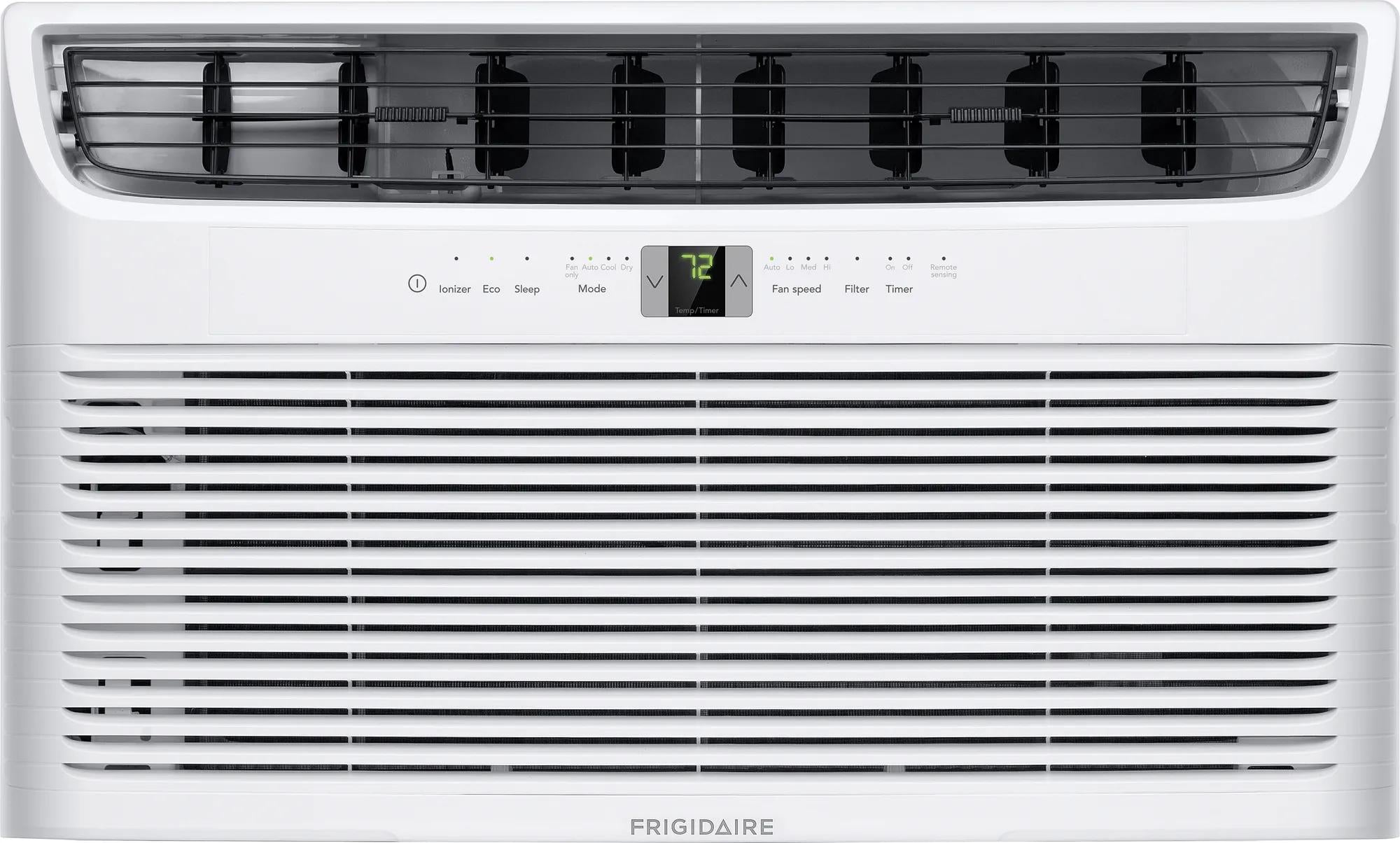

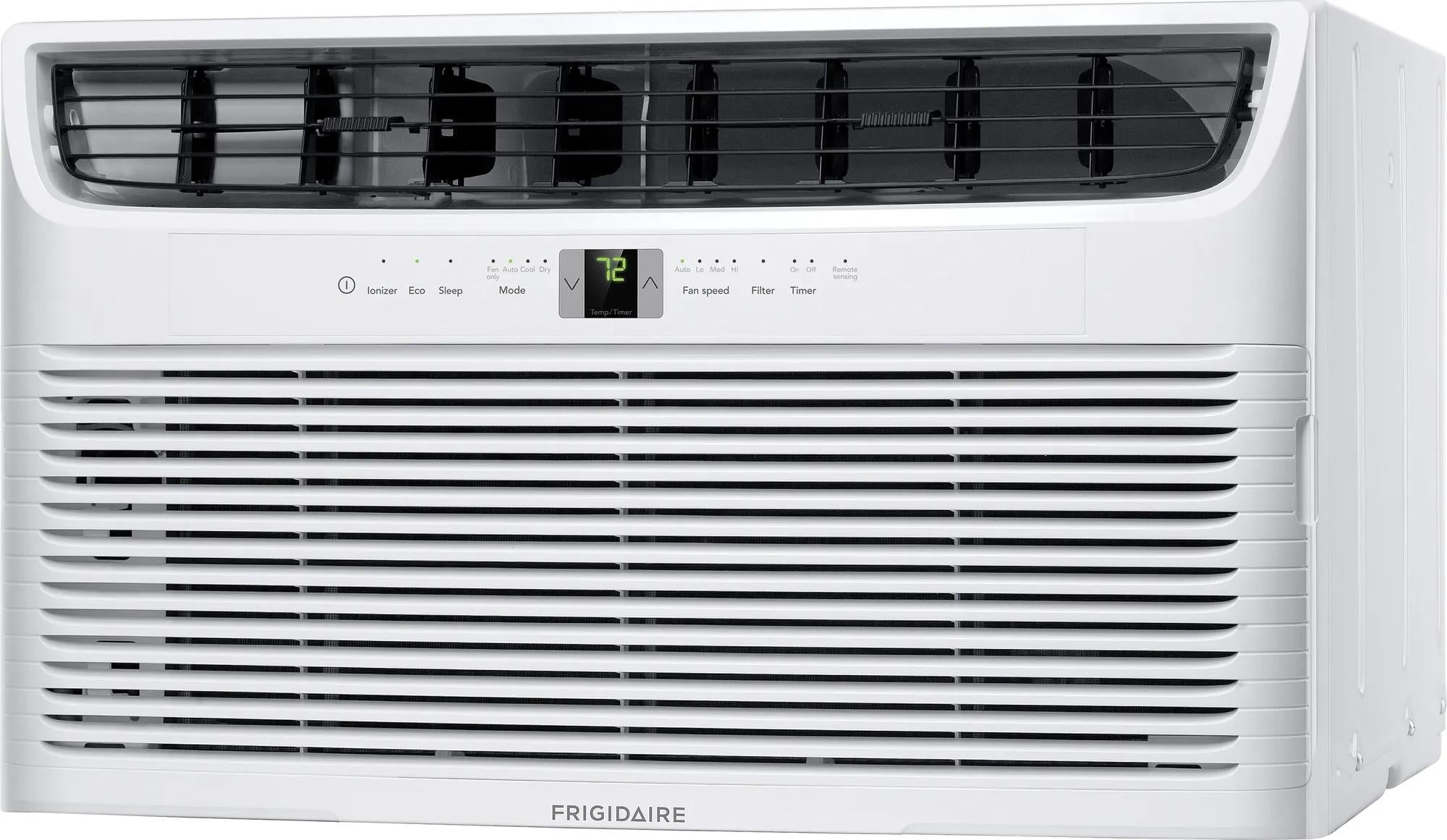

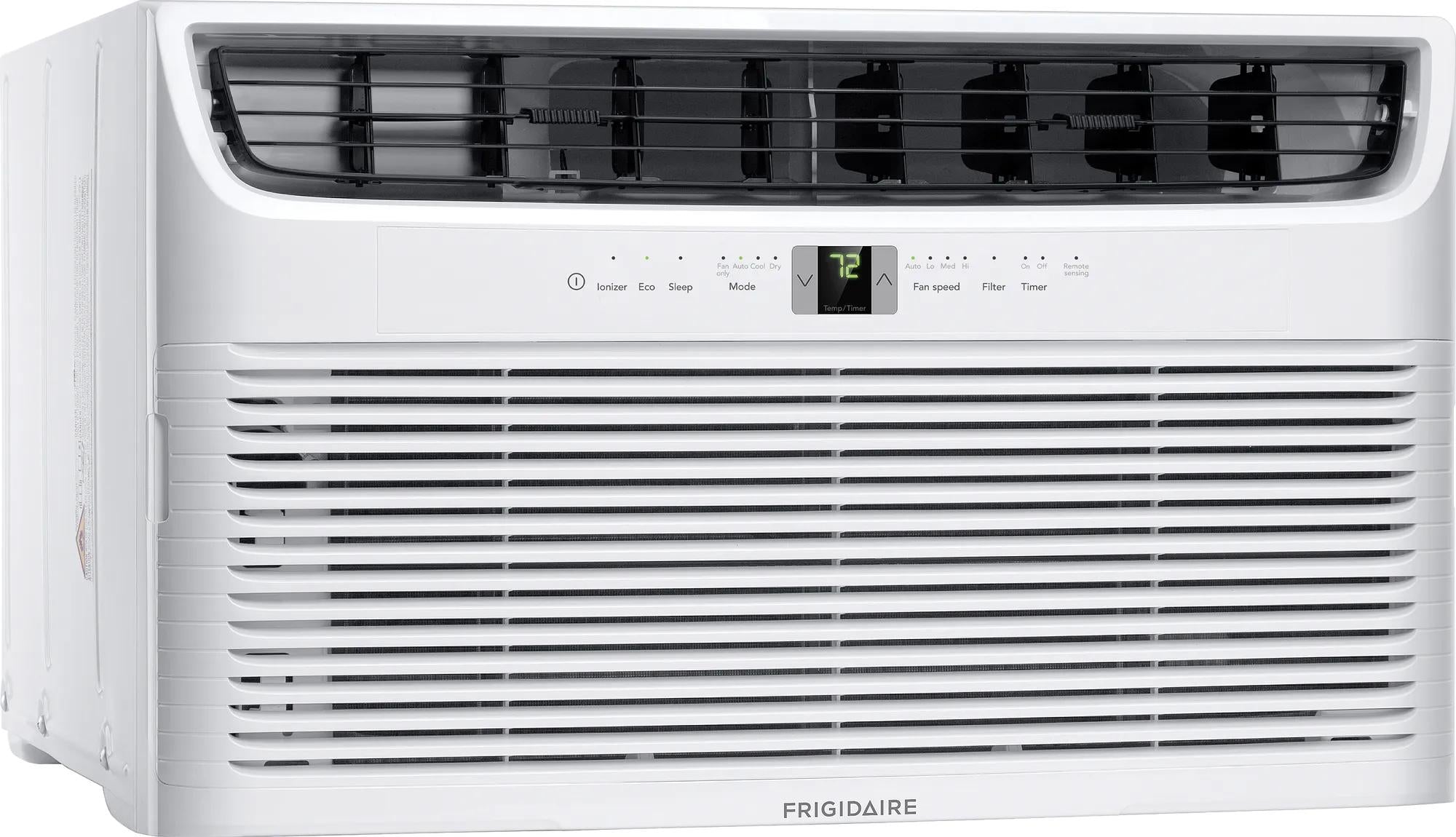

Frigidaire FHTC083WB1 8000 BTU Built-In Air Conditioner 115V

Product Description

The FRIGIDAIRE FHTC083WB1 is an 8000 BTU through the wall air conditioner, ideal for rooms up to 350 square feet. It features an electronic touch pad, full function remote, and a three speed fan. A programmable timer and sleep mode offer customized comfort. The unit includes Remote Temperature Control, Clean Filter, and Automatic Restart and uses R-32 Refrigerant.

• Multi-Speed Fan: Enjoy more cooling flexibility with three different fan speeds
• Clean Air Ionizer: Reduces airborne particles which improves your comfort
• Easy-to-Clean Washable Filter: Captures dust from the air and keeps you air conditioner working efficiently

Product Highlights

This 115V air conditioner offers multiple fan speeds, a clean air ionizer, and an easy-to-clean filter for efficient cooling and improved air quality. Features include a programmable timer, sleep mode, and automatic restart.

Product Information

Standard Information

• Brand: FRIGIDAIRE
• Manufacturer Part Number: FHTC083WB1

Technical Specifications

• Installation Type: Through-the-Wall
• Sleeve Required for Install: Yes
• Fits Sleeve Size (in.): 26
• Trim Kit / Installation Kit: Included
• Refrigerant Type: R32
• Compressor: Standard
• Energy Star: No
• Dehumidification (pts/hr): 1.8
• CFMs: 201 / 231 / 267 (L / M / H)
• Noise Level (dBA): 49.5 / 52.5 / 56 (L / M / H)
• Includes Heat Mode: No
• Cooling BTUs: 8000 BTU
• CEER: 9.6
• Cooling Amps: 7.1 Amps
• Cooling Watts: 810 Watts
• Vent Location: Front Top
• Make-Up Air: No
• Energy Saver Mode: Yes
• Fan Speeds: 3
• Control Type: Electronic/Digital
• Filter Access: Slide-Out
• Connectivity: Not WiFi Compatible
• 24 Hour ON/OFF Timer: Yes
• Remote Control: Yes
• Fresh Air Intake: No
• Sleep Mode: Yes

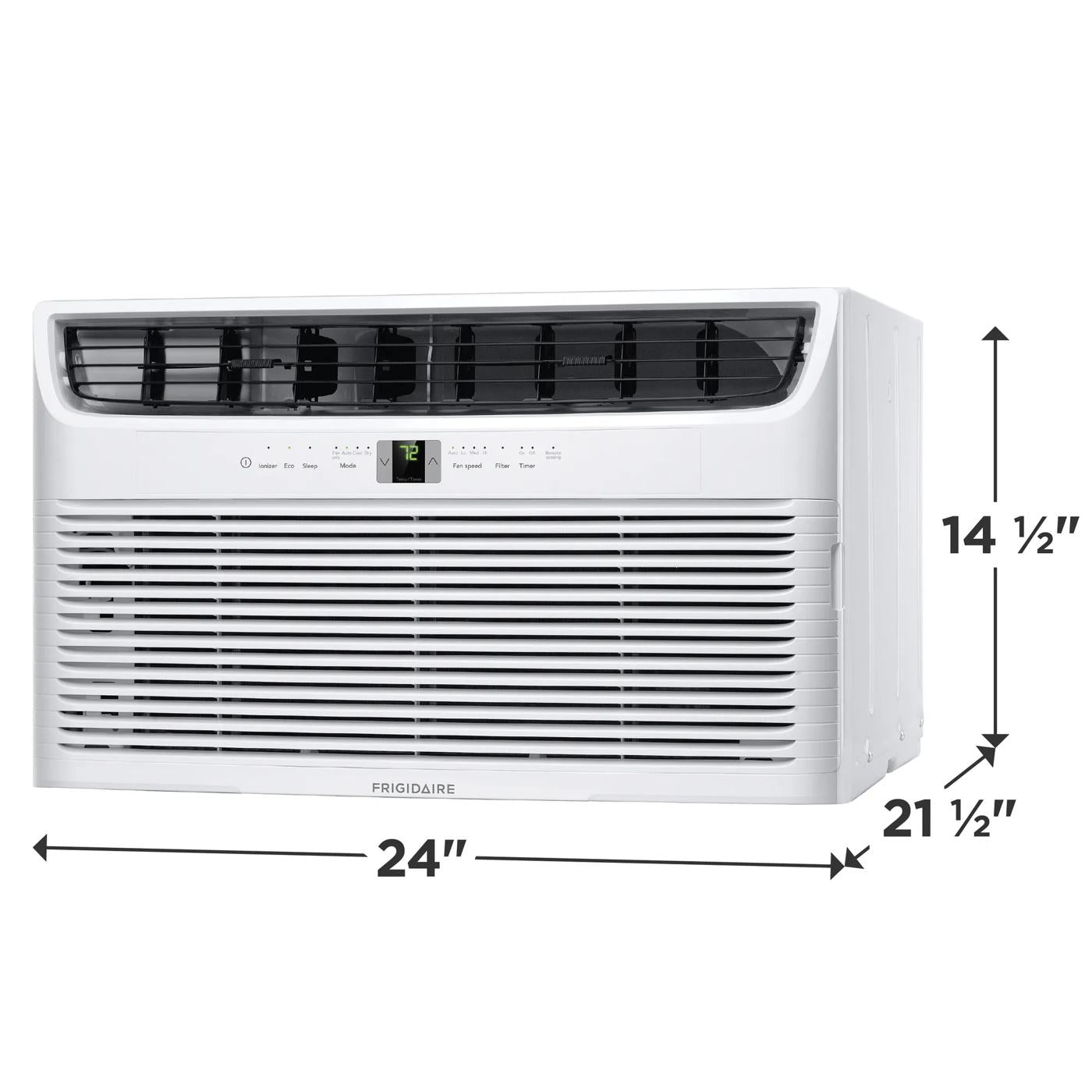

• Width (in.): 24
• Depth (in.): 21.5
• Height (in.): 14.5
• Max. Wall Thickness (in.): 18
• Wall Cut-Out Width (in.): 25.938
• Wall Cut-Out Height (in.): 15.625
• Certifications: CSA, cUL, UL
• Voltage: 110-120V
• Plug Face (NEMA): 5-15P
• Circuit Breaker Amps: 15
• Cord Length (in.): 72
• Air conditioner type: Through-the-Wall Air Conditioners
• Coverage area: 350 sq ft
• Cooling rate: 8000 BTU
• Brand: Frigidaire
• Features: Remote Controlled, Timer, Sleep Mode
• Energy efficiency rating: 9
• Air CFM (Low): 201 CFM
• Air CFM (Med): 231 CFM
• Air CFM (High): 267 CFM
• Air Direction Control: Manual
• Air Discharge: Front of Unit
• Fan Speeds - Cool: 3
• Fan Speeds - Fan: 3
• Motor RPM (Low): 1040 RPM
• Motor RPM (Med): 1180 RPM
• Motor RPM (High): 1330 RPM
• Noise Level dBA (Low): 49.5 dBA
• Noise Level dBA (Med): 52.5 dBA
• Noise Level dBA (High): 56 dBA
• Dust Air Filter: Yes
• Filter Access Location: Front
• Filter Check Indicator: Yes
• Option for Advanced Filtration: Yes
• Rear Grill: Yes
• Supplemental Heat: No
• Accessories Sold Separately: PureAir Filter
• Sleeve Part Number: 912001373
• Wi-Fi Enabled: No
• Sleeve Height: 15.75
• Sleeve Width: 26
• Max Wall Thickness: 18
• Amps (Cool): 7.1 Amps
• Plug Type: LCDI 5-15P
• Voltage Rating: 115 V
• Watts (Cool): 810 Watts
• Auto Fan: Yes
• Auto Restart: Yes
• Clean Air Ionizer: Yes
• Dry Mode: Yes
• Low Voltage Start-up: Yes
• Product Weight: 66 lbs
• Prop 65 Label: Yes
• Combined Energy Efficiency Ratio: 9.6
• Dehumidification - Pints per Hour: 1.8
• CSA Listed: Yes
• cUL Listed: Yes
• Energy Efficiency Verification (Canada): Yes
• UL Listed: Yes
• Cool Area: 350 sq.
