Frigidaire FFEC3025US 4 Burner Smoothtop Cooktop 30 inch

Product Description

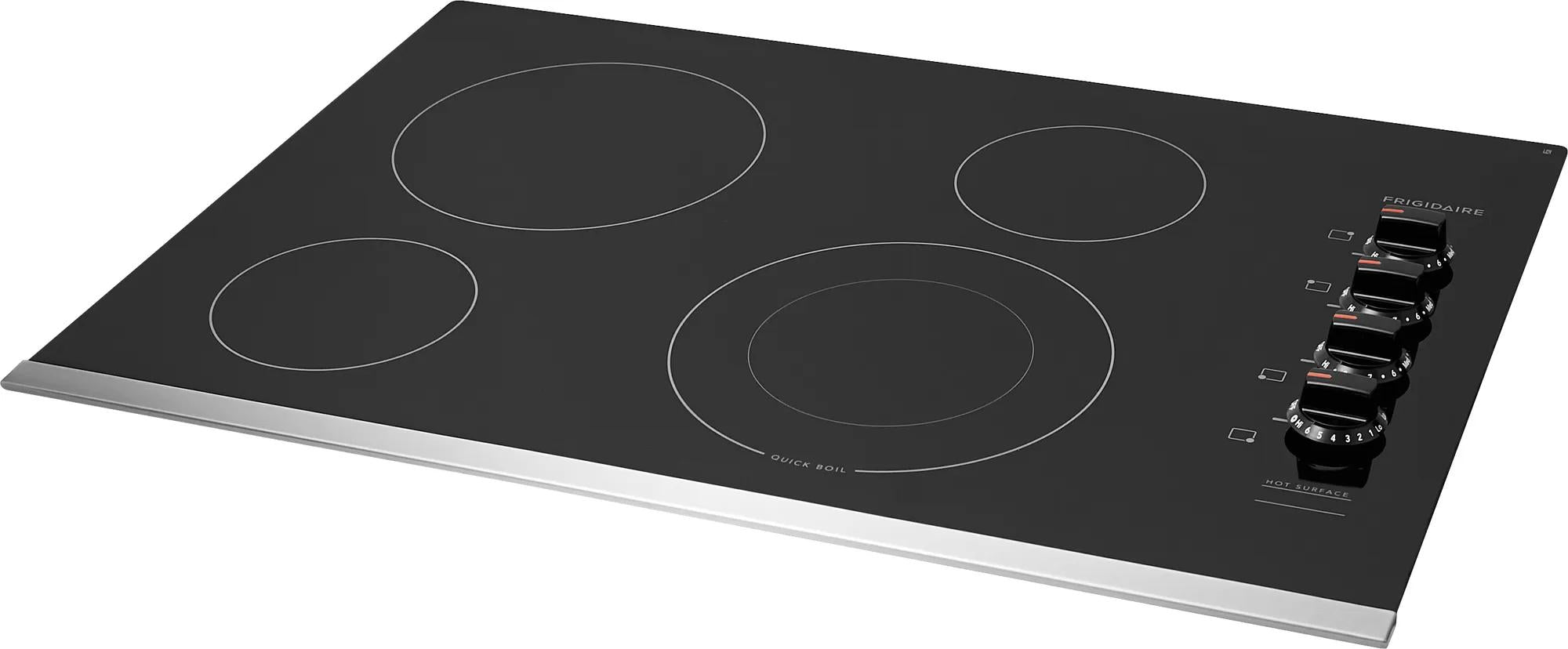

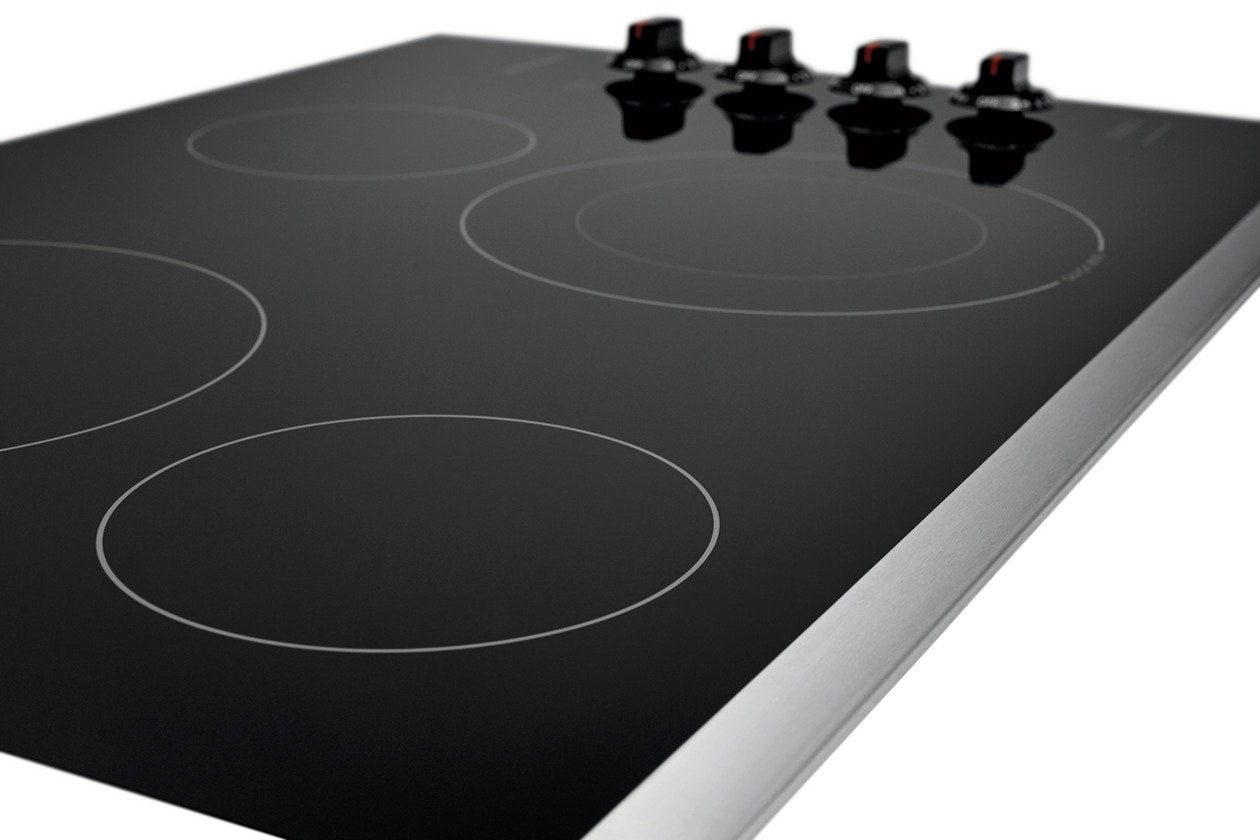

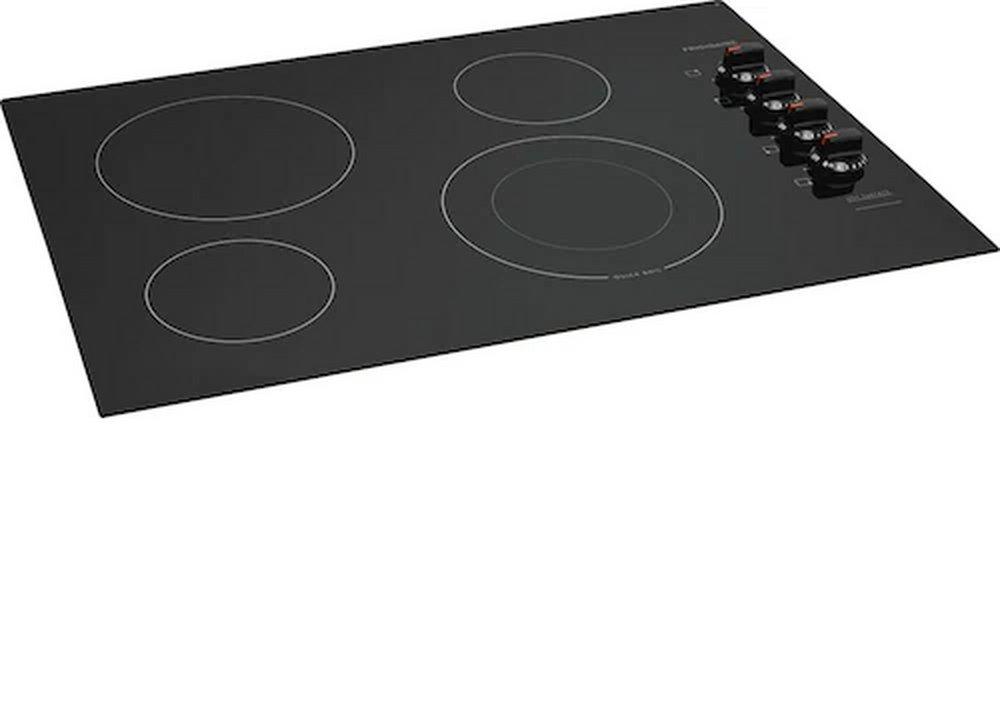

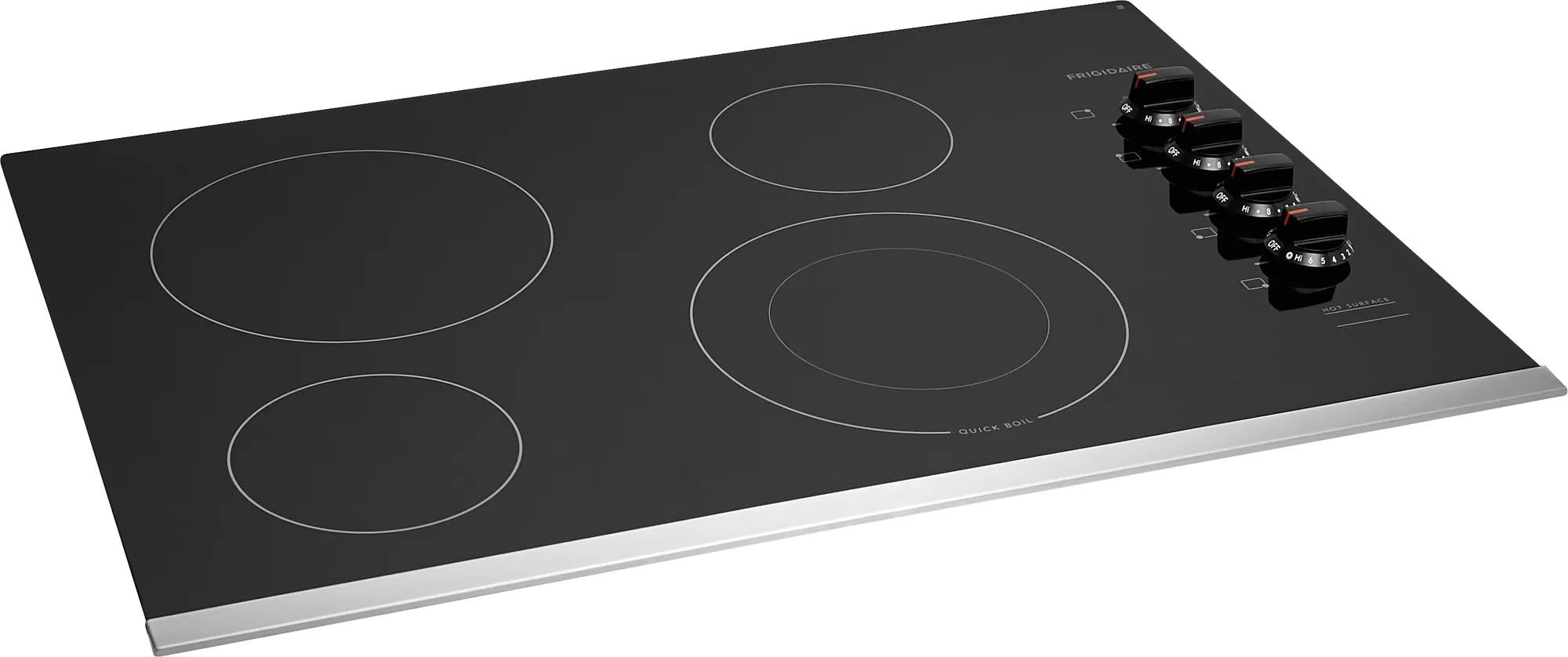

The FRIGIDAIRE FFEC3025US 4 Burner Smoothtop Cooktop features a SpaceWise expandable element and a quick boil element. Approved for installation above Frigidaire electric wall ovens, it includes hot surface indicators and Ready-Select controls. The ceramic glass cooktop ensures even heating and easy cleaning.

• SpaceWise expandable element accommodates various cookware sizes.
• Quick boil element delivers rapid heating.

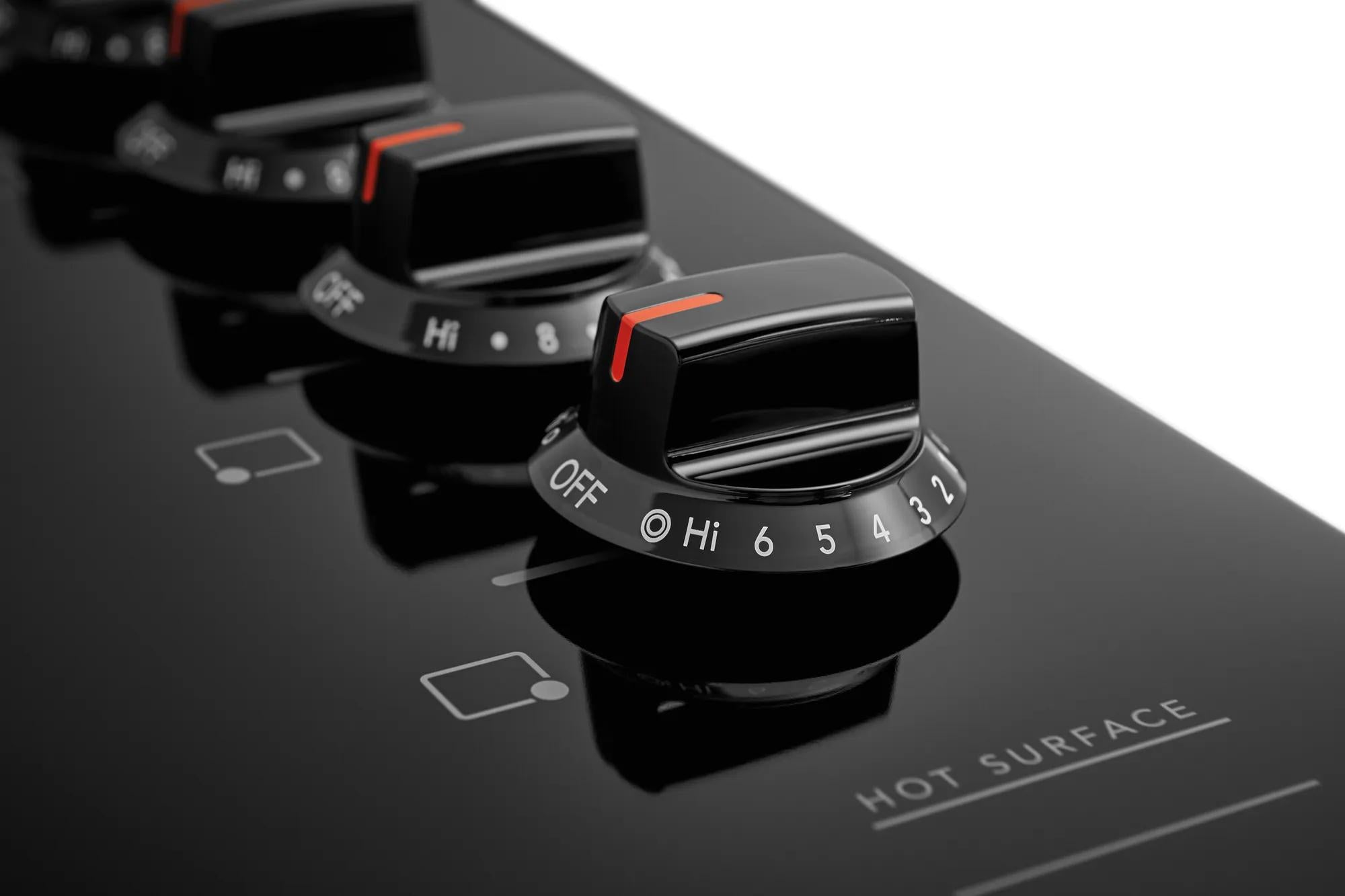

• Hot surface indicators provide safety alerts.

Product Highlights

This electric cooktop offers flexible cooking options and easy-to-use controls for efficient meal preparation.

Product Information

Standard Information

• Brand: FRIGIDAIRE
• Manufacturer Part Number: FFEC3025US

Technical Specifications

• ADA Compliant: No
• CSA Listed: Yes
• ENERGY STAR Certified: Yes
• UL Listed: Yes
• Sabbath Mode: No
• Cooking Surface Type: Smooth
• Hot-Surface Indicator Light: Yes
• Right Front Element Burner Size (Small): 6"
• Right Front Element Burner Size (Large): 9"
• Right Rear Element Burner Size: 6"
• Left Front Element Burner Size: 6"
• Left Rear Element Burner Size: 9"
• Right Front Element Burner (Small): 1600 Watts
• Right Front Element Burner (Large): 3000 Watts
• Right Rear Element Burner: 1200 Watts
• Left Front Element Burner: 1200 Watts
• Left Rear Element Burner: 2500 Watts
• Control Location: Right
• Display Type: Mechanical
• Amps @ 240 Volts: 32.9 Amps
• Connected Load @ 240V: 7.9 kW
• Minimum Circuit Required: 40 Amps
• Voltage Rating: 240 V
• Installed Over a Wall Oven: Yes
• Power Supply Connection Location: Right Center
• Appliance Color/Finish: Stainless steel
• Control Type: Knobs
• Control(s) Color: Black
• Fuel Type: Electric
• Manufacturer Color/Finish: Stainless Steel
• Knob Material: Plastic
• Power Source: Electric

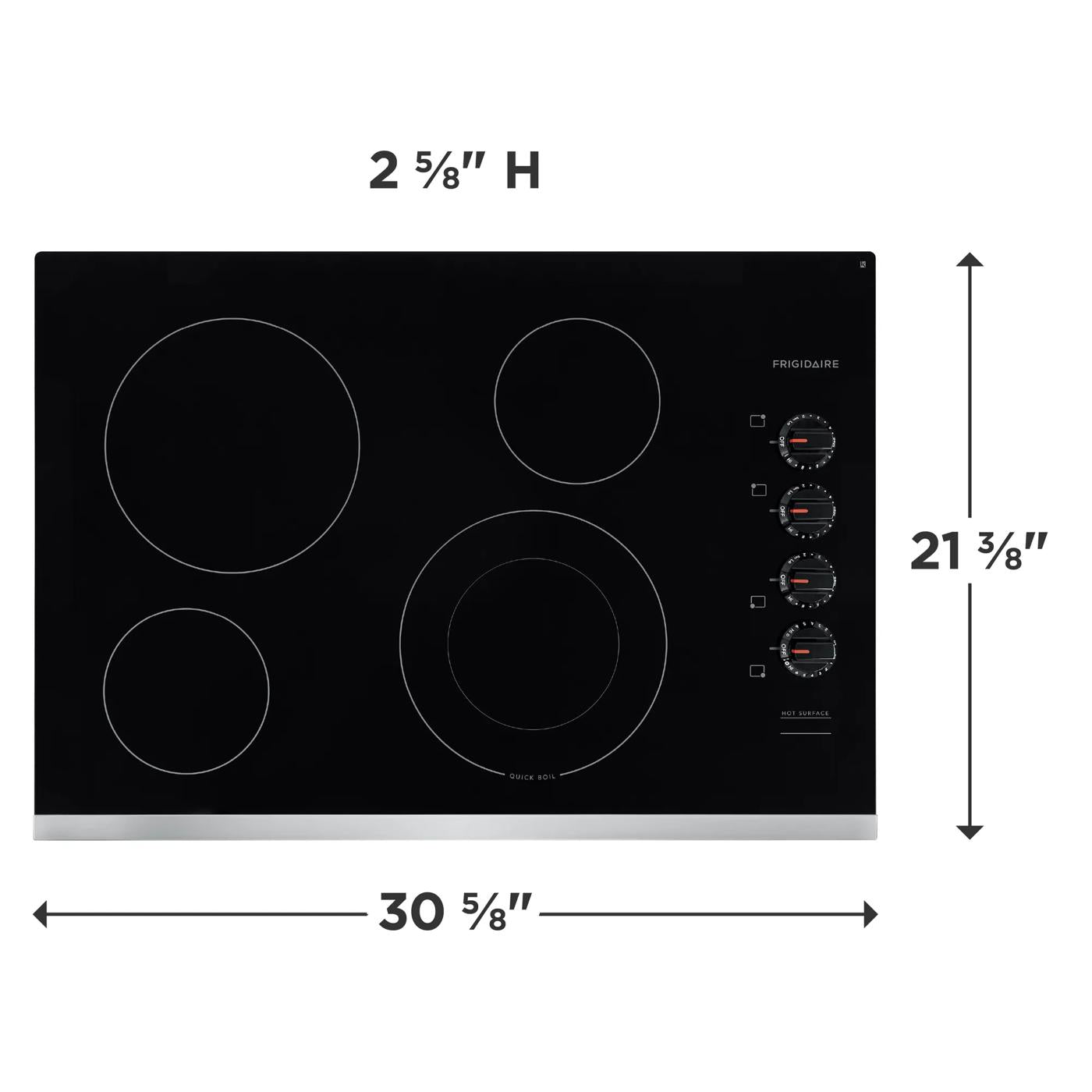

• Actual Depth (Inches): 21.375
• Element #2 Size in Inches: 9
• Actual Width (Inches): 30.375
• Element #3 Size in Inches: 6
• Adjustable Height: No
• Element #4 Size in Inches: 6
• Common Cooktop Size: 30 inch
• Element #5 Size in Inches: 6
• Cooktop Size Group: Medium (24 - 34 inches)
• Maximum Assembled Height (Inches): 2.625
• Cutout Depth (Inches): 20.5
• Minimum Assembled Height (Inches): 2.625
• Cutout Height (Inches): 5
• Pan Size Sensor: No
• Cutout Width (Inches): 29.625
• Amperage: 32.9
• Element #1 Size in Inches: 6-in/9-in
• Bridge Element: No
• Built-In Counter Lip: No
• Light: No
• Lowe's Exclusive: No
• Control Lockout: No
• Modular Design: No
• Customizable: No
• Number of Cooking Zones: 4 burners
• Die-Cast Stainless Steel Knobs: No
• Pan Presence Sensor: No
• Digital Display: No
• Portable: No
• Downdraft Exhaust: No
• Power Element: No
• Dual/Triple Element: No
• Simmer Element: No
• Fingerprint-Resistant: No
• Timer: No
• Voice Controlled: No
• Hub Required: No
• Volts: 208/240
• Induction Cooking: No
• Warming Zone: No
• Induction Heating: No
• App Compatibility: No
• Works with Android: No
• Bluetooth Compatibility: No
• Works with Apple HomeKit: No
• Matching Gas (Model #): FGGC3025US
• Works with iOS: No
• Matching Previous (Model #): FFEC3024PS
• Works with SmartThings: No
• Smart Compatible: No
• Works with Sonos: No
• Wi-Fi Compatibility: No
• Works with the Google Assistant: No
• Works with Amazon Alexa: No
• For Commercial Use: No
• Safety Listing: UL safety listing
• Burner Quantity: 4 Burners
• Cooktop Surface Type: Ceramic Glass
• Cut-Out Front to Back Depth (in.): 19.625
• Cut-Out Left to Right Width (in.): 28.5
• Electrical Connection: Hardwired
• Features: Hot Surface Indicator
• Number of Burners: 4
• Product Depth (in.): 21.375 in
• Product Height (in.): 3.375
• Product Width (in.): 30 in
• Voltage (v): 240 V
