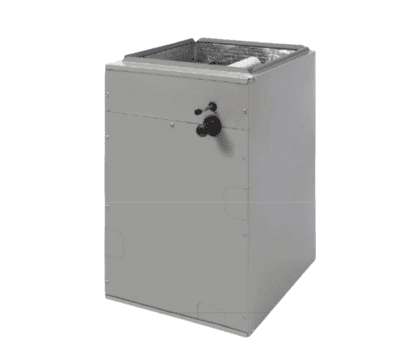

Frigidaire C75BHMX30C-A Multi-Position Cased Evaporator Coil 2.5 Ton R-454B

Product Description

The Frigidaire C75BHMX30C-A is a multi-position cased evaporator coil with a cooling capacity of 30000 BTU. This unit is designed for use with R-454B refrigerant and features a TXV metering device, making it suitable for horizontal configurations. The coil measures fourteen and one-fourth inches in width and is designed to fit various HVAC installations.

• Cooling Capacity: 30000 BTU
• Refrigerant Type: R-454B
• Metering Device: TXV

Product Highlights

This evaporator coil is built for efficiency and flexibility in installation. Ideal for HVAC professionals looking for reliable cooling performance.

Product Information

Standard Information

• Brand: Frigidaire
• Cooling Capacity: 2.5 Ton

Technical Specifications

• Capacity: 30000 BTU
• Refrigerant: R-454B
• Metering Device: TXV
• Liquid Line Size: 3/8 inches
• Suction Line Size: 3/4 inches
• Configuration: Horizontal
• Height: 26 3/4 inches
• Length: 20 3/4 inches
• Width: 14 1/4 inches
