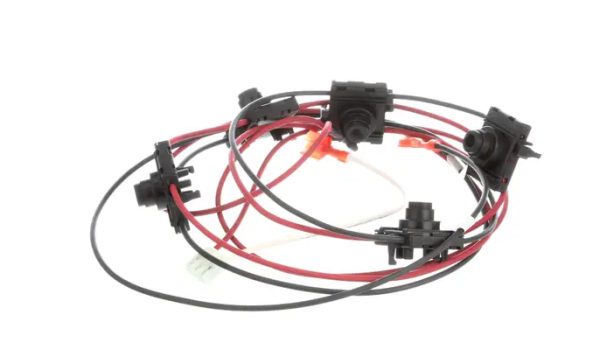

Frigidaire 5304528828 Range Spark Switch Wire Harness

Product Description

The FRIGIDAIRE 5304528828 is a range spark switch wire harness designed to deliver reliable ignition to gas burners. Mounted at the rear of the control panel, the harness connects the burner electrodes to the spark switch, routing the electrical signal that generates a spark at each burner. The assembly is engineered to align with the control knob positions and burner layout, ensuring each knob activates the correct electrode. Licensed appliance technicians and qualified service professionals typically handle this replacement to maintain safe, code-compliant ignition operation.

This wire harness is used in freestanding and slide-in gas ranges where the spark ignition system requires service. It works in conjunction with the spark module, burner electrodes, and gas valve to produce consistent flame ignition. The harness is suited for residential cooking appliance applications where the original wiring has failed, shorted, or suffered heat damage that disrupts ignition at one or more burners.

Key Features

• Routes ignition signal from spark switch to individual burner electrodes
• Mounts at the rear of the control panel for a direct OEM-style fit
• Aligned to match control knob positions and burner layout
• Supports consistent spark delivery for stable flame ignition
• Direct replacement for the original harness assembly

Compatibility

Designed as an OEM-style replacement spark switch wire harness for compatible FRIGIDAIRE gas ranges requiring ignition wiring service.

Installation Notes

Installation should be performed by a qualified appliance technician or licensed service professional. Before servicing, disconnect the range from its electrical power source and shut off the gas supply at the appliance shutoff valve. Handle the harness connectors carefully to avoid damaging the terminals during removal and reinstallation. Verify all connectors are fully seated before restoring power and gas.
