Frigidaire 318293830 Range/Stove/Oven Surface Element Switch 1500 W (Small) ELX318293830

Product Description

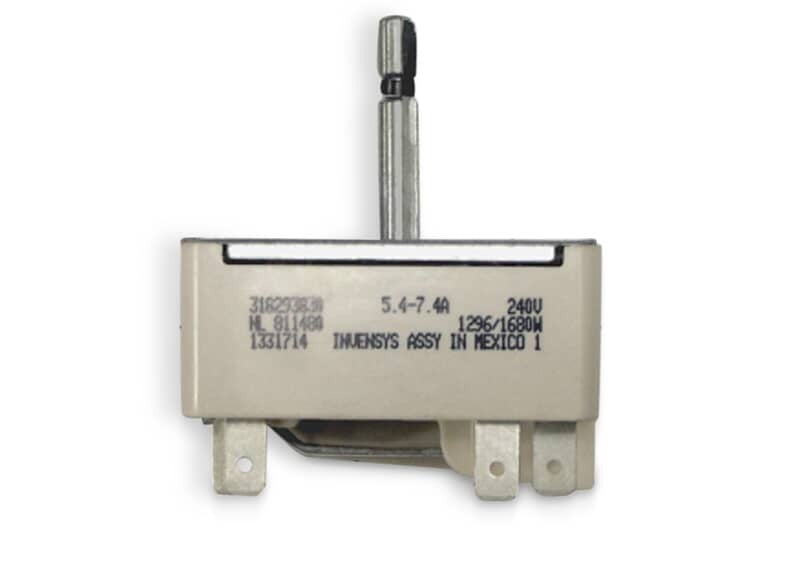

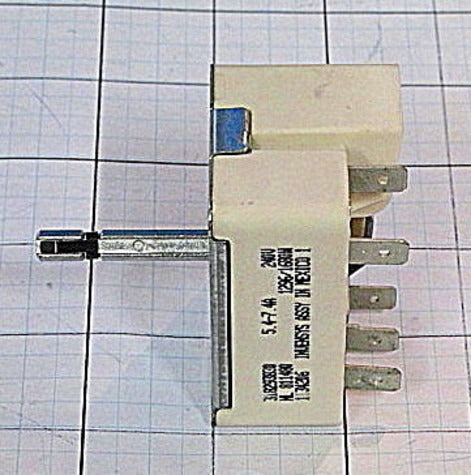

The Frigidaire 318293830 is a panel-mount surface element toggle switch designed to control heating elements on compatible electric ranges and cooktops. Manufactured by CE Sundberg, the part is sized for small surface elements and rated for 240 Volt operation. It provides manual OFF-NONE-ON control with a normally open contact in a series circuit, push-on terminals with quick-connect, and a plastic housing with brass contacts.

• Panel-mount toggle switch for small surface elements; designed for Frigidaire and compatible ranges
• Rated 240 V; power 1500 W; nominal current ≈6.25 A (1500 W / 240 V)
• Push-on terminals with quick-connect, normally open contact, series circuit; plastic housing with brass contacts; OFF-NONE-ON operation

Product Highlights

Panel-mount surface element toggle switch (Frigidaire 318293830) — 240 V, 1500 W (nominal current ≈6.25 A), push-on terminals and quick-connect, plastic housing with brass contacts

Product Information

Standard Information

• Brand: FRIGIDAIRE
• Manufacturer Part Number: 318293830
