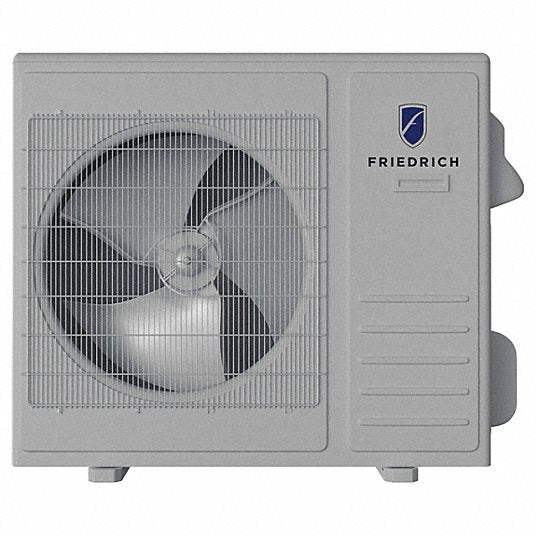

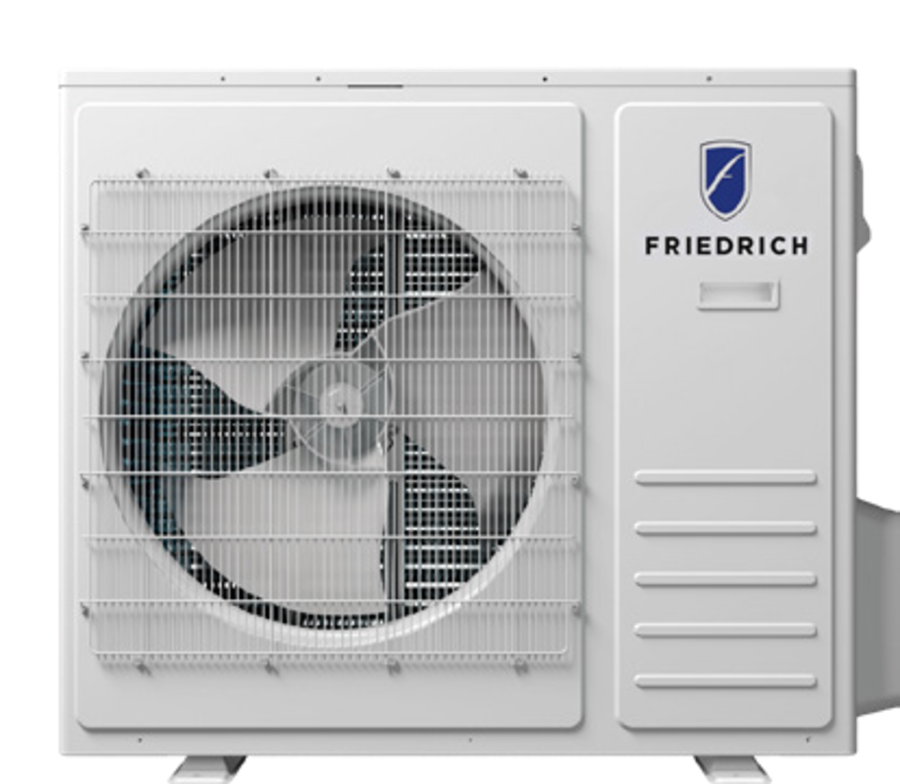

Friedrich WFPU18Z363C heat pump 3.0 ton 18 SEER2 230/1 side discharge

Product Description

The FRIEDRICH WFPU18Z363C is a 3.0 Ton 18 SEER2 230/1 side discharge heat pump, designed for efficient climate control. This ducted mini split system offers universal compatibility, providing both cooling and heating functions. Operating on 208/230V, 1-Phase power, it delivers 36k BTUH cooling and 35k BTUH heating capacity. Its reversible heat pump mechanism efficiently transfers heat indoors or outdoors for year-round comfort.

• 3.0 Ton capacity with 18 SEER2 rating for efficient performance.
• Side discharge design for flexible installation.
• Reversible heat pump provides both cooling and heating for year-round climate control.

Product Highlights

Universal compatibility ducted mini split heat pump with variable output inverter technology.

Product Information

Standard Information

• Brand: FRIEDRICH
• Manufacturer Part Number: WFPU18Z363C
• Country of Origin: China

Technical Specifications

• Series: Breeze
• Type: Ducted Side Discharge Mini Split Heat Pump
• Compatibility: Universal
• Voltage: 208 / 230V
• Phase: 1-Phase
• SEER2 Rating: 18.0
• Capacity (Tons): 3 Ton
• Cooling Capacity: 36k BTUH
• Heating Capacity: 35k BTUH
• EER2 Rating: 10.10
• HSPF2 Rating: 9.5
• COP: 2.05
• System Cooling Temperature Range: 61°F to 86°F (16°C to 30°C)
• System Heating Temperature Range: 61°F to 86°F (16°C to 30°C)
• Refrigerant Type: R410A
• Sound Pressure Level: 57 dB(A)
• Refrigerant Charge: 6 lb 3 oz (R410A)
• Line Set Size (Liquid/Gas): 3/8 inch / 3/4 inch
• Frequency: 60 Hz
• Application: Ducted Heat Pump Outdoor
• Airflow: 2350 cfm
• Compressor Technology: Variable Output (Inverter)
• Compressor Type: Rotary
• Minimum Cooling Capacity: 11800 BtuH
• Maximum Line Length: 246 ft
• Maximum Heat Pump Heating Capacity: 38200 BtuH
• Heating Method: Heat Pump
• Operation Mode: Cooling/Heating
• Power Source: Hardwired
