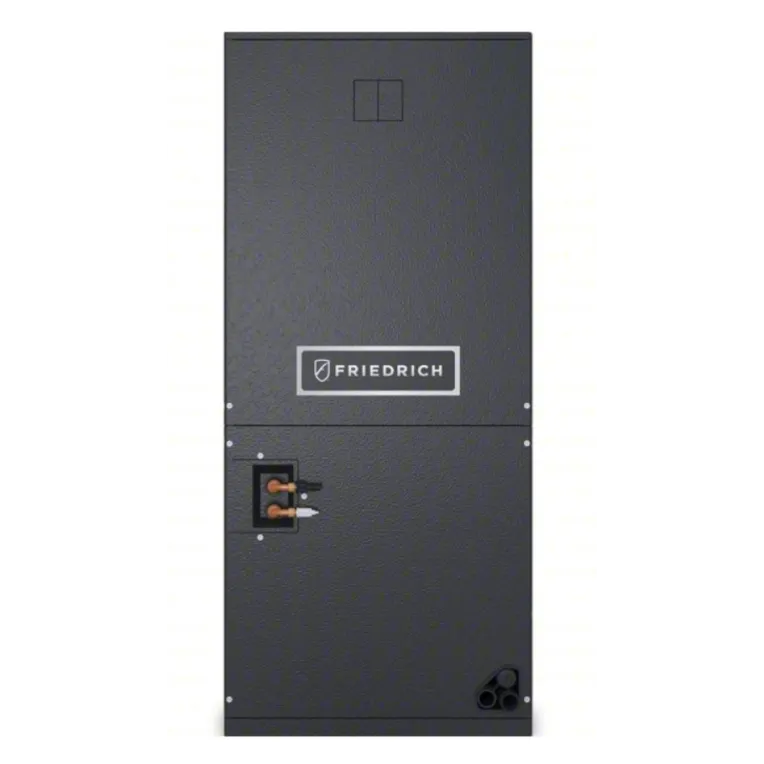

Friedrich WFH48Y223D Breeze Air Handler Communicating 208/230V 4 Ton

Product Description

The FRIEDRICH WFH48Y223D is a 4 Ton Breeze Air Handler designed for HVAC systems. It operates on 208/230V and features a communicating control system. This unit cools the airstream, providing climate control and dehumidification for interior spaces. It includes a blower, blower motor, and evaporator coils within its steel housing. The system uses R454B refrigerant and has a nominal cooling capacity of 48,000 BtuH.

• Communicating control system for integrated HVAC operation.
• 48,000 BTU cooling capacity (4 Ton) for effective climate control.
• Operates on 208/230V with R454B pre-charged refrigerant.

Product Highlights

This FRIEDRICH WFH48Y223D Breeze Air Handler offers 4 Ton cooling, 208/230V operation, and a communicating control system for efficient climate management.

Product Information

Standard Information

• Brand: FRIEDRICH
• Manufacturer Part Number: WFH48Y223D
• Country of Origin: China

Technical Specifications

• Model Number: WFH48Y223D
• Cooling Capacity: 4 Ton (48,000 BTU)
• Input Voltage: 208/230V
• Control System: Communicating
• Refrigerant Type: R454B
• Series: Breeze Air Handler
• Maximum Airflow: 1,706 cfm
• Motor Horsepower: 3/4 hp
• Motor Type: Electronically Commutated
• Phase: 1
• Frequency: 60 Hz
• Current: 5.4 A
• Number of Speeds: Variable
• Electric Heater Compatible: Yes
• Fuse Rating: 10 A
• Expansion Device Type: Expansion Valve
• Refrigerant Pre-Charged: Yes
• Refrigerant Capacity: 137.6 oz
• Housing Material: Steel
• Suction Line Size: 3/4 in
• Liquid Line Size: 3/8 in
• Return Air Opening Width: 22 in
• Return Air Opening Depth: 2 in
• Filter Size: 22 in W x 20 in H
• Supply Opening Width: 24 in
• Supply Opening Depth: 2-1/4 in
• Coil Drain Connection Size: 3/4 in
• Overall Height: 55-1/2 in
• Overall Width: 22 in
• Overall Depth: 24 in
• Standards: Energy Star Cold Climate
