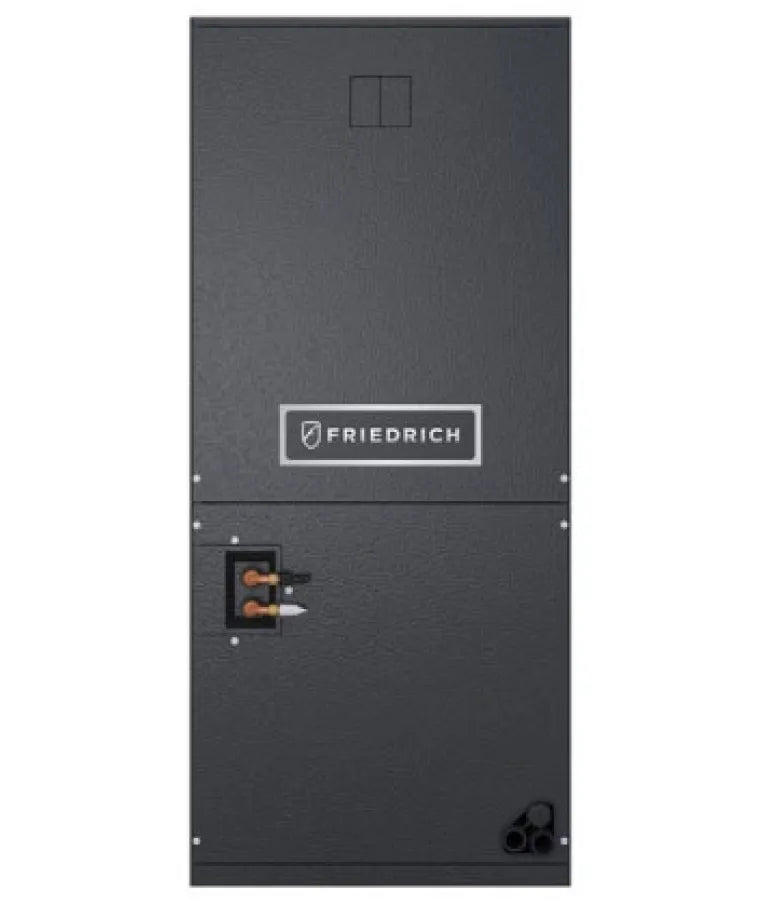

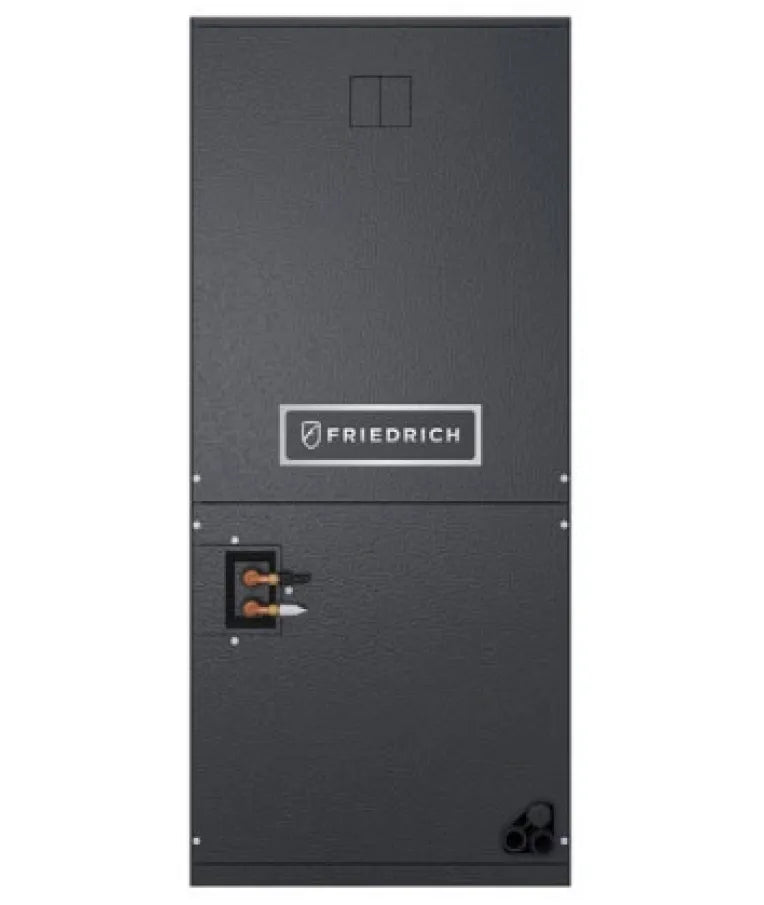

Friedrich WFH36Y193D 3 ton Breeze Series Air Handler 208/230V 36000 Btu

Product Description

The FRIEDRICH WFH36Y193D is a 3 Ton Breeze Series Air Handler designed for HVAC systems. Operating at 208/230V and utilizing R454B refrigerant, this unit provides 36,000 Btu cooling capacity. It can be integrated into existing HVAC setups or paired with a Friedrich Breeze system, offering an upgrade path to an efficient inverter heat pump system for precise, year-round climate control and dehumidification. The unit contains a blower, motor, and evaporator coils within a steel housing.

• Universal design compatible with Friedrich Breeze Air Handler systems or existing HVAC setups.
• Enables upgrade to an efficient inverter heat pump system for precise, year-round comfort.
• Features a 36,000 Btu cooling capacity and operates on 208/230V with R454B refrigerant.

Product Highlights

This communicating air handler provides efficient climate control and dehumidification, featuring a 3-ton capacity and universal system compatibility.

Product Information

Standard Information

• Brand: FRIEDRICH
• Manufacturer Part Number: WFH36Y193D
• Country of Origin: China

Technical Specifications

• Input Voltage: 208/230 V
• Nominal Cooling Capacity (Tons): 3 Ton
• Product Type: Air Handler
• Refrigerant Type: R454B
• Cooling Capacity (BtuH): 36000 Btu
• Heating Capacity (BtuH): 36000 BTU
• Communication: Communicating
• Model Series/Type: 454B
• Old Model Number: WFH36Z193C
• Maximum Airflow: 1,120 cfm
• Motor Horsepower: 1/2 hp
• Motor Type: Electronically Commutated
• Phase: 1
• Frequency: 60 Hz
• Current: 3.8 A
• Number of Speeds: Variable
• Electric Heater Compatible: Yes
• Fuse Rating: 10 A
• Expansion Device Type: Expansion Valve
• Refrigerant Pre-Charged: Yes
• Refrigerant Capacity: 88.2 oz
• Housing Material: Steel
• Suction Line Size: 5/8 in
• Liquid Line Size: 3/8 in
• Return Air Opening Width: 18 in
• Return Air Opening Depth: 2 in
• Filter Size: 20 in W x 18 in H
• Supply Opening Width: 21-5/8 in
• Supply Opening Depth: 2-1/4 in
• Coil Drain Connection Size: 3/4 in
• Standards: Energy Star Cold Climate
