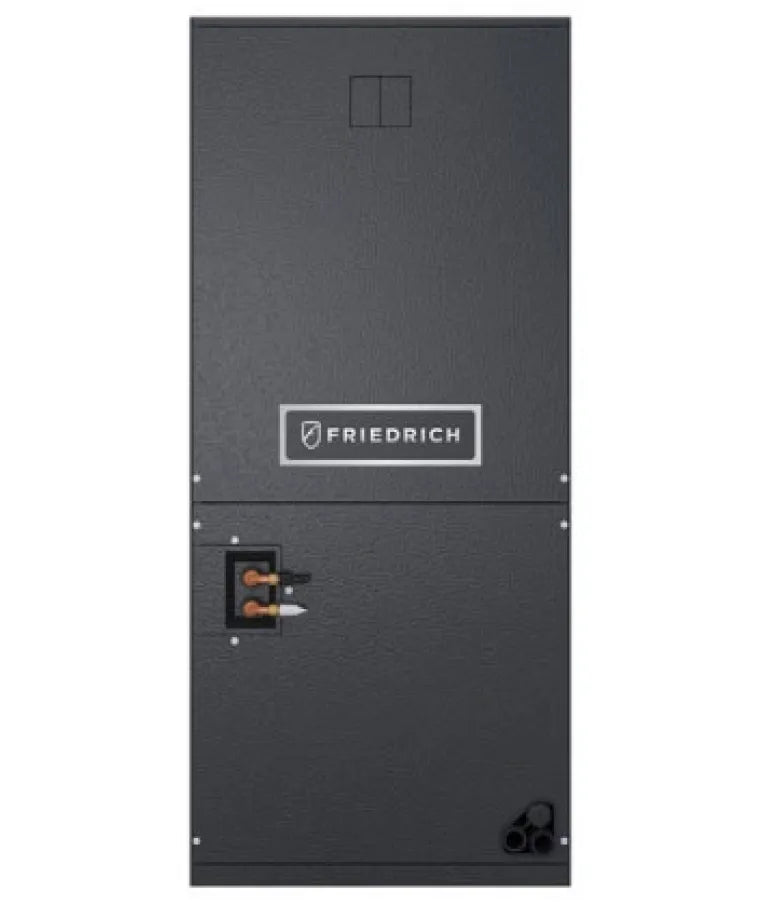

Friedrich WFH24Y193D Breeze Series Communicating Air Handler 2 Ton 208/230V

Product Description

The FRIEDRICH WFH24Y193D is a 2-ton communicating air handler designed for HVAC systems. It cools the airstream, providing climate control and dehumidification. This unit operates on 208/230V and has a 24,000 BtuH cooling capacity. It consists of a housing containing a blower, blower motor, and evaporator coils, making it suitable for integration with Friedrich Breeze heat pumps or existing HVAC setups.

• Universal compatibility with Friedrich Breeze heat pumps and existing HVAC systems.
• Easy upgrade to an efficient inverter heat pump system.
• Provides precise comfort and climate control.

Product Highlights

Efficient 2-ton air handler for precise climate control and dehumidification.

Product Information

Standard Information

• Brand: FRIEDRICH
• Manufacturer Part Number: WFH24Y193D
• Country of Origin: China

Technical Specifications

• Input Voltage: 208/230 V
• Product Type: Air Handler
• Refrigerant Type: R454B
• Cooling Capacity (BtuH): 24000 BtuH
• Cooling Capacity (Tons): 2 ton
• Maximum Airflow: 800 cfm
• Motor Horsepower: 1/3 hp
• Motor Type: Electronically Commutated
• Phase: 1
• Frequency: 60 Hz
• Operating Current: 2.6 A
• Number of Speeds: Variable
• Electric Heater Compatible: Yes
• Fuse Rating: 10 A
• Expansion Device Type: Expansion Valve
• Refrigerant Pre-Charged: Yes
• Refrigerant Capacity: 70.5 oz
• Housing Material: Steel
• Suction Line Size: 5/8 in
• Liquid Line Size: 3/8 in
• Return Air Opening Width: 18 in
• Return Air Opening Depth: 2 in
• Filter Size: 20 in W x 18 in H
• Supply Opening Width: 21-5/8 in
• Supply Opening Depth: 2-1/4 in
• Coil Drain Connection Size: 3/4 in
• Overall Height: 46-1/8 in
• Overall Width: 19-5/8 in
• Overall Depth: 21-5/8 in
• Standards: Energy Star Cold Climate
