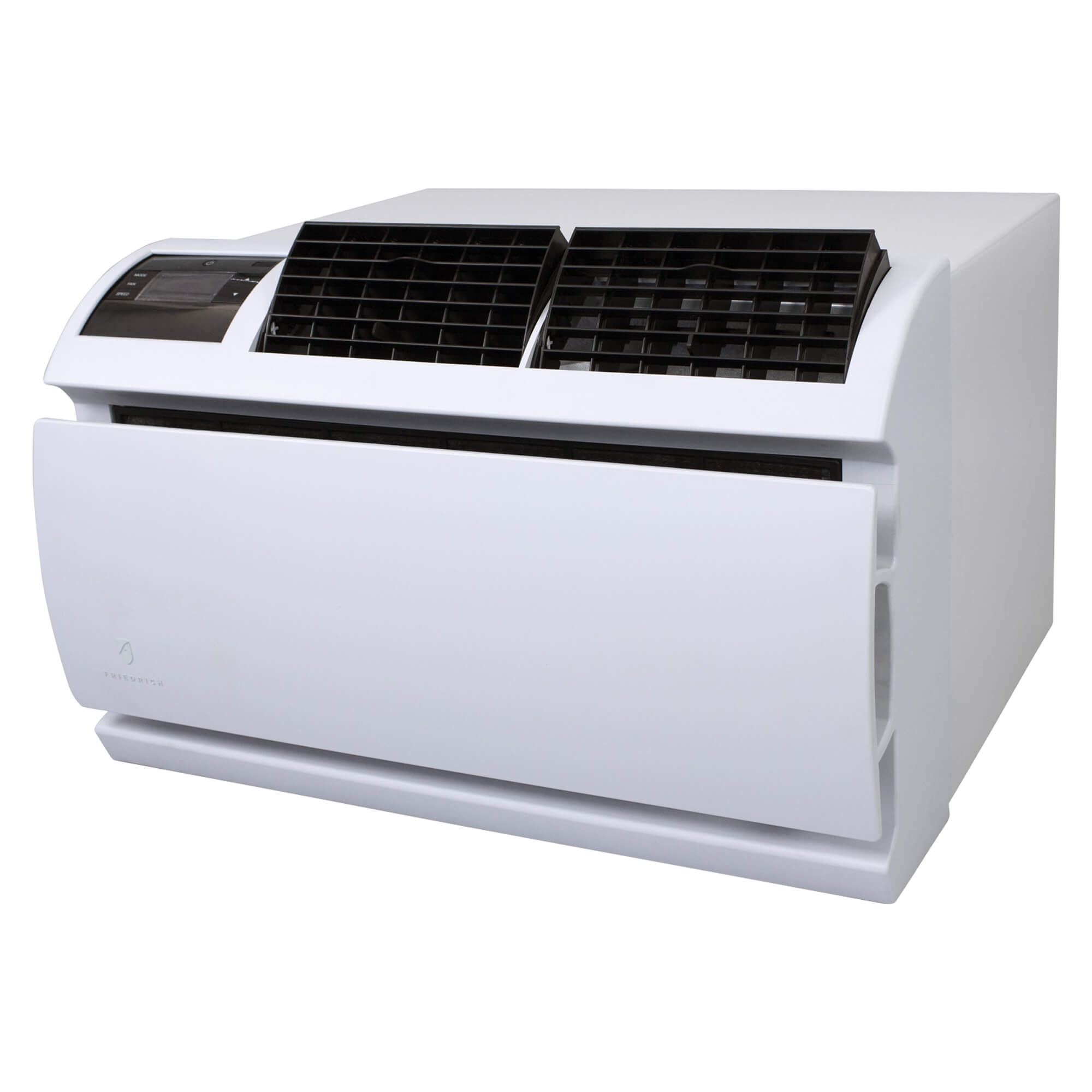

Friedrich WCVT12B30A WallMaster Smart Wi-Fi Through-the-Wall Air Conditioner 13600 BTU REPLACEMENT WCT12A30A

Product Description

The FRIEDRICH WCVT12B30A WallMaster through-the-wall air conditioner offers a perfect fit for existing 27" sleeves and features advanced technology for precise comfort and energy savings. Engineered with QuietMaster technology, Precision Inverter, and integrated Wi-Fi control. It utilizes A2L-compliant R-32 refrigerant and features inverter compressors.

• Precise Comfort with Precision Inverter
• Quietmaster Technology
• Smart Wi-Fi Control with Voice Command
• ENERGY STAR certified

Product Highlights

Commercial-grade construction ensures durability, while smart Wi-Fi control and voice command compatibility offer convenience. The unit replaces old 27" sleeve units and mounts flush with the exterior wall.

Product Information

Standard Information

• Brand: FRIEDRICH
• Manufacturer Part Number: WCVT12B30A

Technical Specifications

• Type: Through the Wall
• Cooling Capacity (Btu/hr): 13600
• Voltage: 208-230V
• Product Class: 8b. Without reverse cycle, without louvered sides, and 11,000 to 13,999 Btu/h
• Installation Mounting Type: Does Not Straddle Window or Windowsill
• Support Bracket: Yes
• Variable Speed Compressor: Yes
• Refrigerant Type: R-32
• Annual Energy Use (kWh/yr): 733.8
• Combined Energy Efficiency Ratio (CEER): 13.9
• Percent Less Energy Use than US Federal Standard: 46
• Height (inches): 15.2
• Width (inches): 26.5
• Depth (inches): 21.0
• Connected Capable: No
• Heating Mode: No
• ENERGY STAR Certified: Yes
• Installation Type: Through-the-Wall
• Sleeve Required for Install: Yes
• Fits Sleeve Size (in.): 27

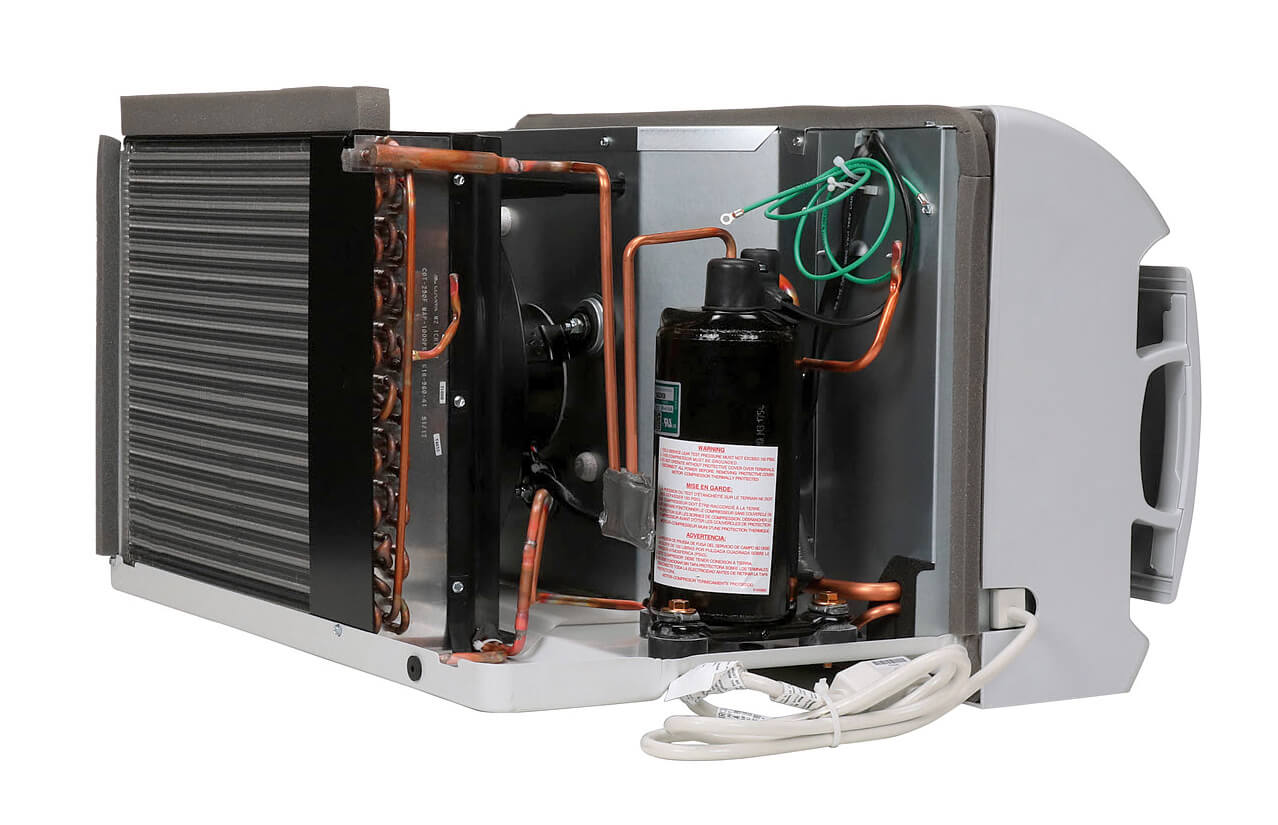

• Compressor: Inverter
• Dehumidification (pts/hr): 4.6
• CFMs: 300
• Includes Heat Mode: No
• EER2 (@230V): 11.7
• Cooling Amps (@230V): 6.5
• Cooling Watts (@230V): 621
• Vent Location: Top
• Make-Up Air: No
• Energy Saver Mode: Yes
• Fan Speeds: 3
• Control Type: Electronic/Digital
• Filter Access: Lift-Out
• Connectivity: Built-In WiFi
• 24 Hour ON/OFF Timer: Yes
• Remote Control: Yes
• Fresh Air Intake: No
• Sleep Mode: No
• Max. Wall Thickness (in.): 15.313
• Wall Cut-Out Width (in.): 27.25
• Wall Cut-Out Height (in.): 17.25
• Extension Into Room (Min)(in.): 7.5
• Extension Outside (Min.)(in.): 0.563
• Certifications: Energy Star, UL,CUL
• Plug Face (NEMA): 6-20P
• Circuit Breaker Size (Amps): 20
• Cord Length: 6'
