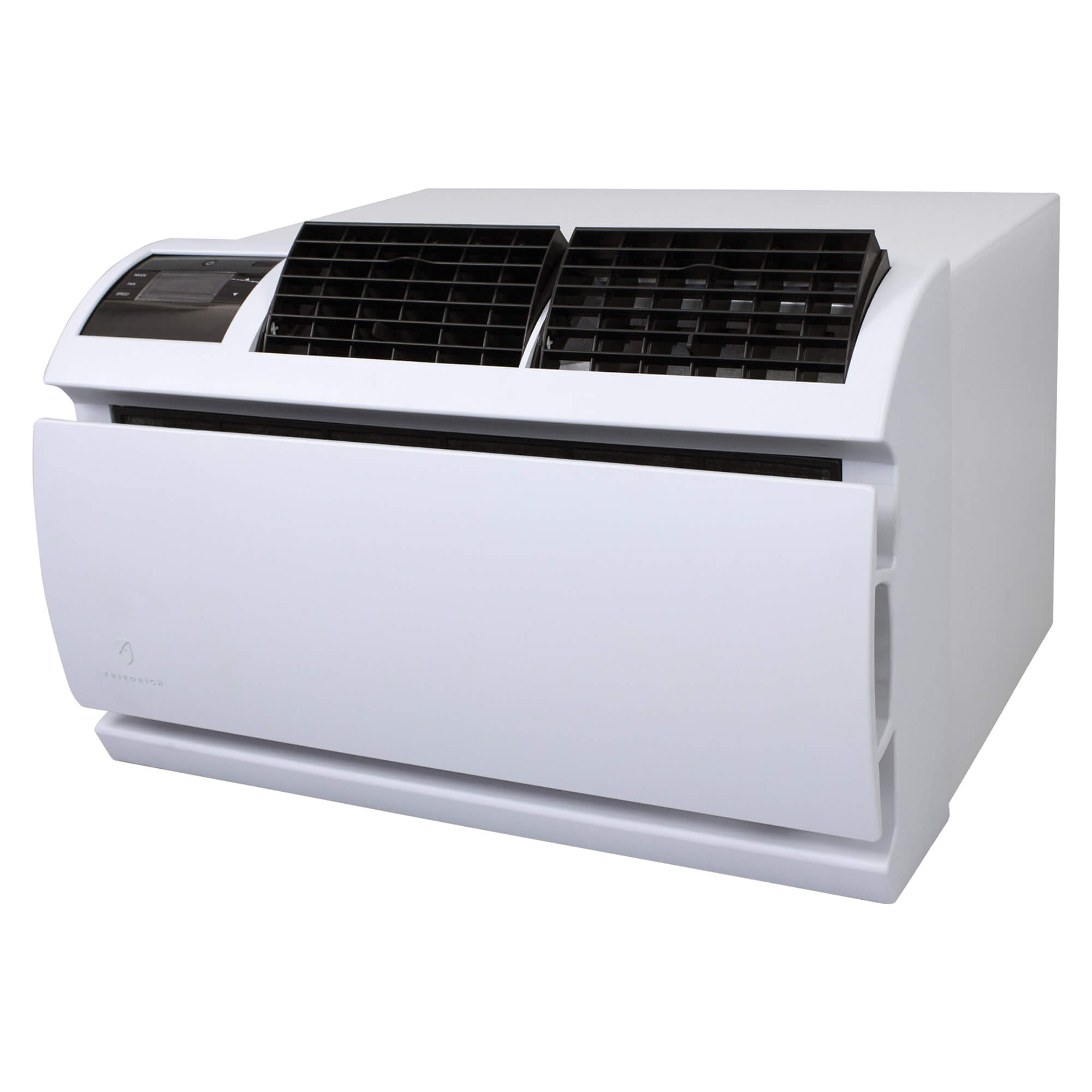

Friedrich WCVT12B10A WallMaster Smart Wi-Fi Through-the-Wall Air Conditioner

Product Description

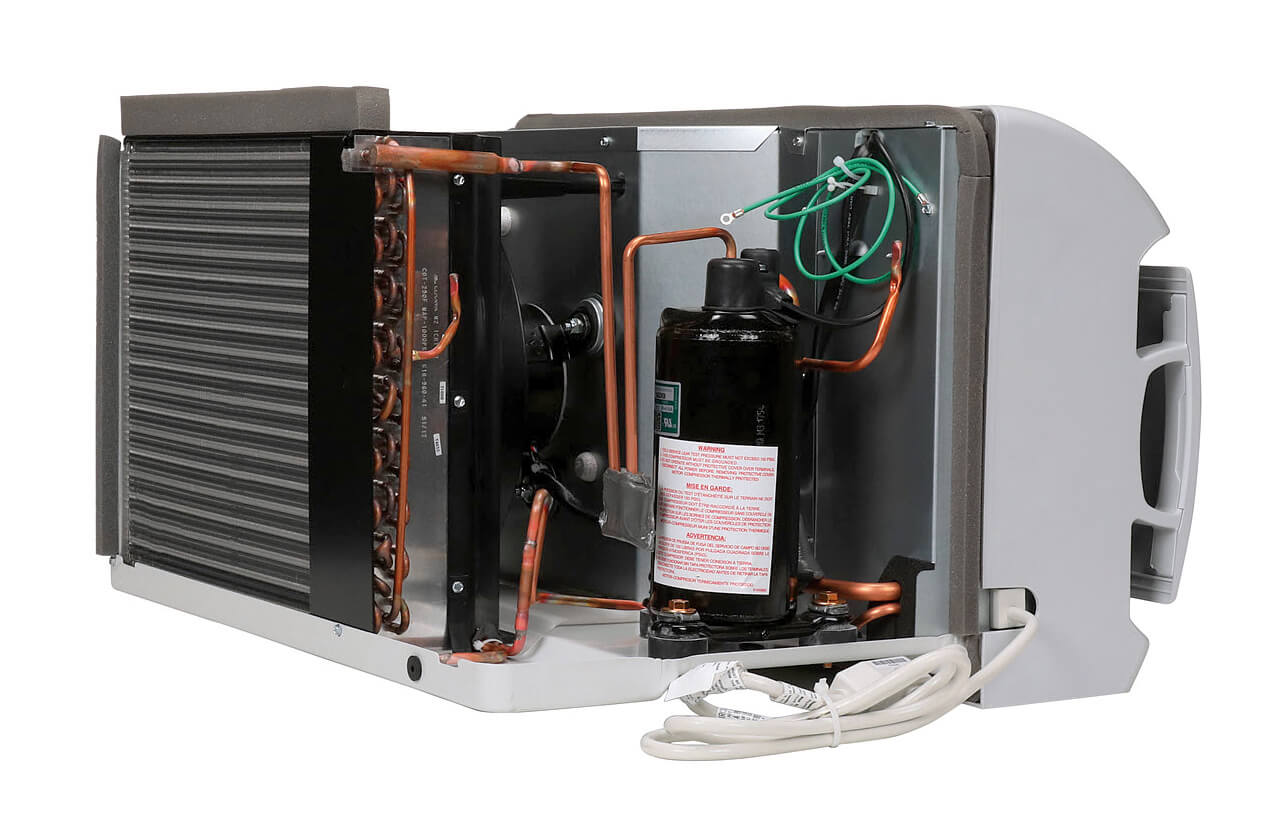

The FRIEDRICH WCVT12B10A WallMaster through-the-wall air conditioner offers a perfect fit for existing 27" sleeves and features advanced technology for precise comfort and energy savings. Built with commercial-grade construction and QuietMaster technology, it includes Precision Inverter and integrated Wi-Fi control. This unit utilizes A2L-compliant R-32 refrigerant and features an inverter compressor.

• Precise Comfort with Precision Inverter
• Quietmaster Technology
• Smart Wi-Fi Control with Voice Command
• Commercial-grade construction for durability
• Utilizes R-32 refrigerant

Product Highlights

Offers precise comfort, energy savings, and smart control. Built for long-lasting performance with commercial-grade components and features quiet operation.

Product Information

Standard Information

• Brand: FRIEDRICH
• Manufacturer Part Number: WCVT12B10A
• Country of Origin: United States, Canada

Technical Specifications

• Installation Type: Through-the-Wall
• Sleeve Required for Install: Yes
• Fits Sleeve Size (in.): 27
• Refrigerant Type: R32
• Compressor: Inverter
• Energy Star: Yes
• Dehumidification (pts/hr): 4.6
• CFMs: 300
• Includes Heat Mode: No
• Cooling BTUs: 13500
• EER2: 11.1
• CEER: 13.2
• Cooling Amps: 11.6
• Cooling Watts: 621
• Vent Location: Top
• Make-Up Air: No
• Energy Saver Mode: Yes
• Fan Speeds: 3
• Control Type: Electronic/Digital
• Filter Access: Lift-Out
• Connectivity: Built-In WiFi
• 24 Hour ON/OFF Timer: Yes
• Remote Control: Yes
• Fresh Air Intake: No
• Sleep Mode: No
• Width (in.): 26.5
• Depth (in.): 21
• Height (in.): 15.75
• Max. Wall Thickness (in.): 15.313
• Wall Cut-Out Width (in.): 27.25
• Wall Cut-Out Height (in.): 17.25
• Extension Into Room (Min)(in.): 7.5
• Extension Outside (Min.)(in.): 0.563
• Certifications: Energy Star, UL,CUL
• Voltage: 110-120V
• Plug Face (NEMA): 5-15P
• Circuit Breaker Size (Amps): 15
• Cord Length: 6'
• Variable Speed Compressor: Yes
• Annual Energy Use (kWh/yr): 767.0
• Percent Less Energy Use than US Federal Standard: 39
• Air Direction: 8-Way
• Model: WCVT12B10A
• Cooling Method: Air
