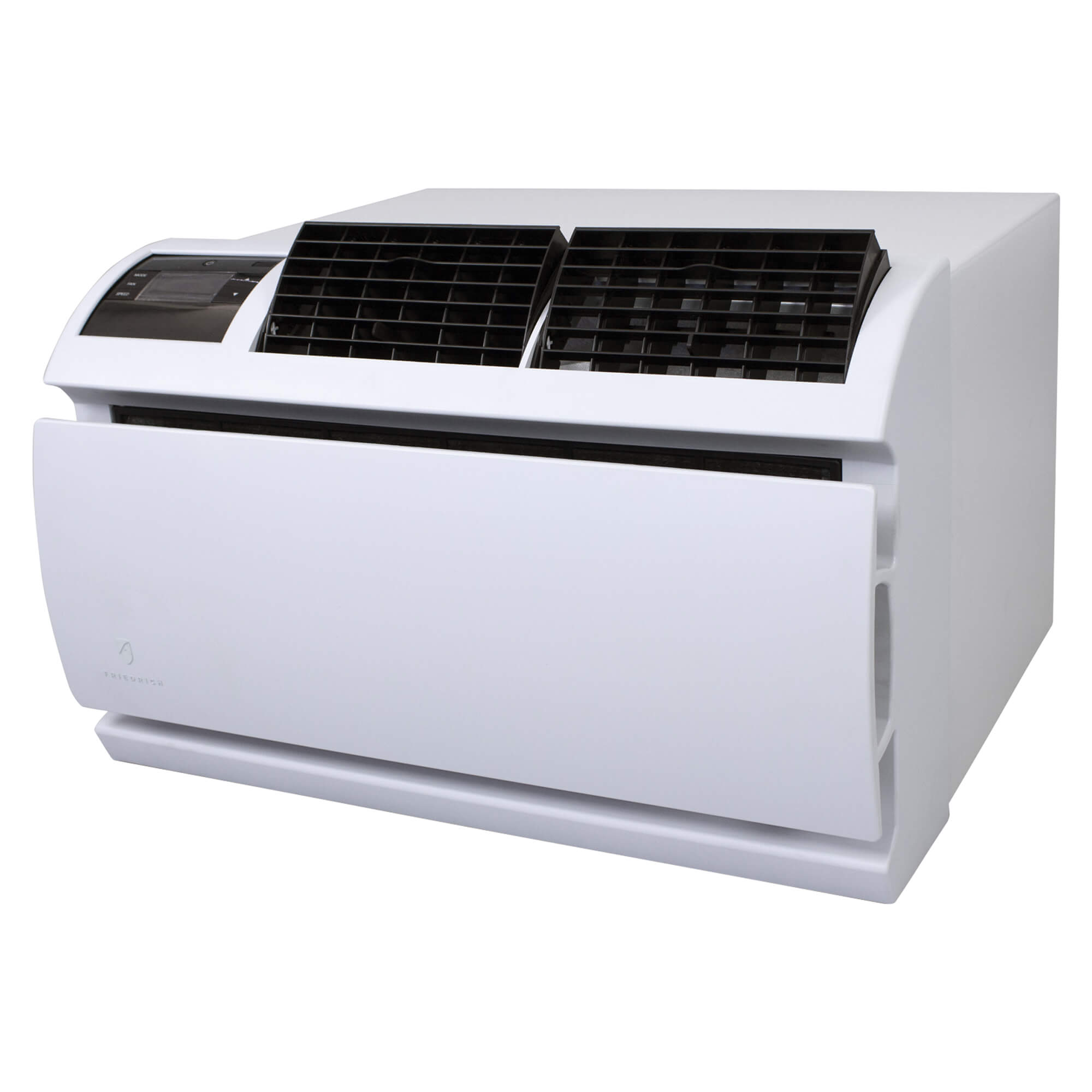

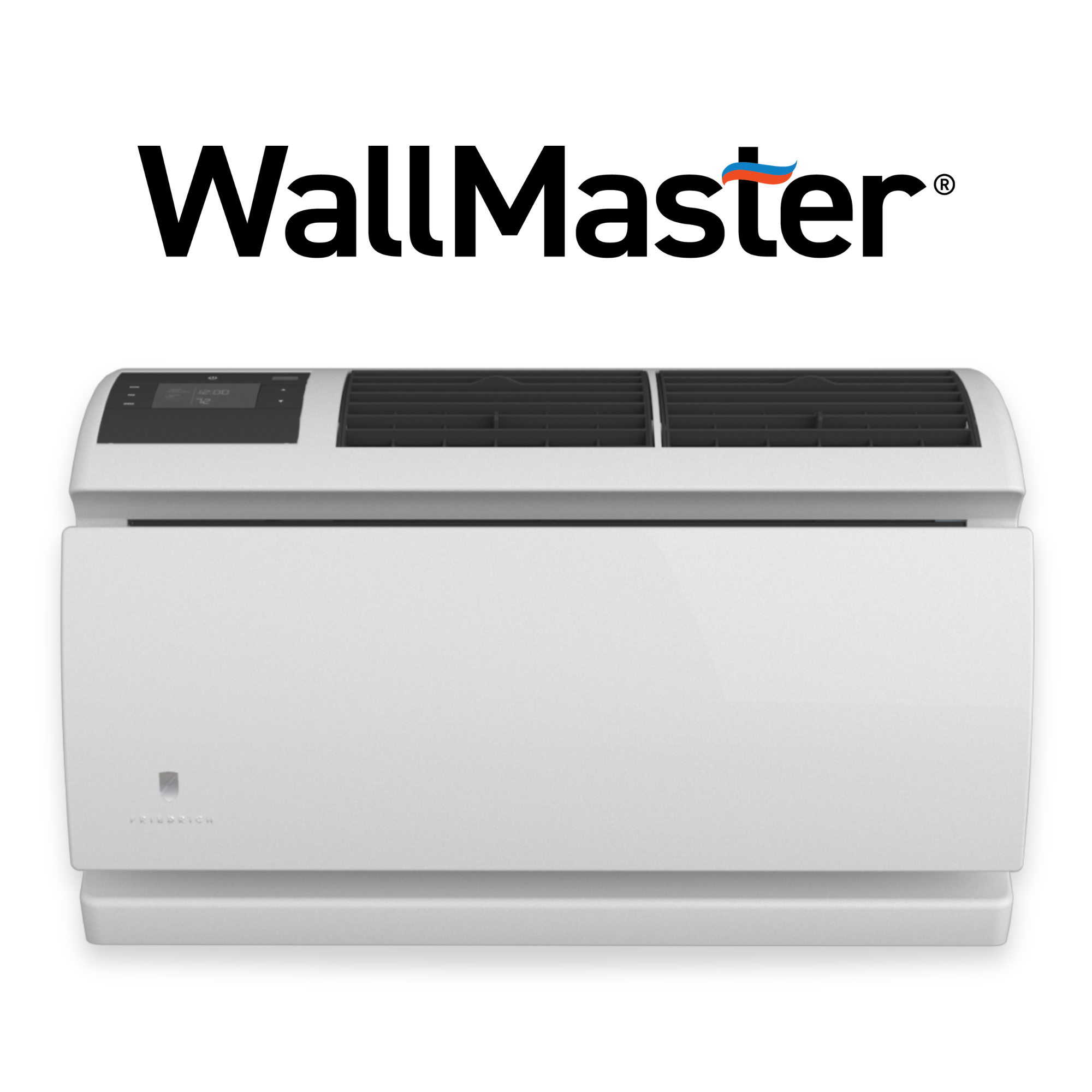

Friedrich WCVT10B30A WallMaster Smart Wi-Fi Through-the-Wall Air Conditioner 10000 BTU

Product Description

The FRIEDRICH WCVT10B30A WallMaster through-the-wall air conditioner offers a perfect fit for existing 27" sleeves and boasts advanced features for precise comfort and energy savings. Engineered with QuietMaster technology, Precision Inverter, and integrated Wi-Fi control. It utilizes A2L-compliant R-32 refrigerant and features an inverter compressor.

• Precise Comfort with Precision Inverter
• Quietmaster Technology
• Smart Wi-Fi Control with Voice Command

Product Highlights

This WallMaster air conditioner is built to perform in extreme conditions, offering convenience and simple control for both commercial and residential use.

Product Information

Standard Information

• Brand: FRIEDRICH
• Manufacturer Part Number: WCVT10B30A

Technical Specifications

• Brand: Friedrich
• Cooling BTU: 10000
• Type: Cooling Only
• AMPS: 15A
• Voltage: 208-230V
• EER: 10.7
• Dehumidification (Pints/Hr): 2.7
• Modes: Cooling Only
• Fan Modes: Constant/Cycle (Hi/Med/Auto)
• Sea Coast Protection: NO
• Digital Controls: YES
• Temprature Limiting: YES
• Freeze Protection: NO
• Installation Type: Through-the-Wall
• Sleeve Required for Install: Yes
• Fits Sleeve Size (in.): 27
• Refrigerant Type: R32

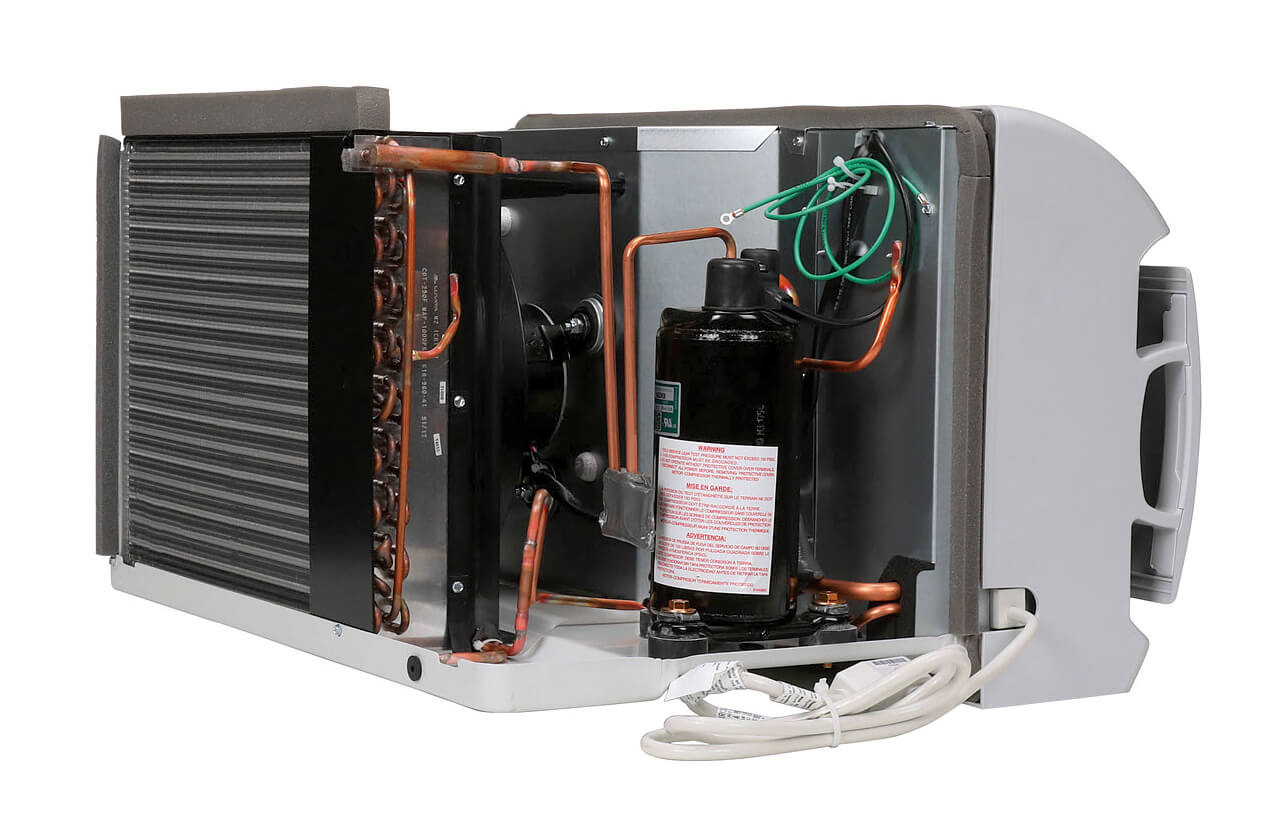

• Compressor: Inverter
• Energy Star: Yes
• CFMs: 275
• Includes Heat Mode: No
• Cooling BTUs (@230 Volts): 11100
• EER2 (@230V): 10.7
• CEER (@230V): 13.0
• Cooling Amps (@230V): 5.4
• Cooling Watts (@230V): 585
• Vent Location: Top
• Make-Up Air: No
• Energy Saver Mode: Yes
• Fan Speeds: 3
• Control Type: Electronic/Digital
• Filter Access: Lift-Out
• Connectivity: Built-In WiFi
• 24 Hour ON/OFF Timer: Yes
• Remote Control: Yes
• Fresh Air Intake: No
• Sleep Mode: No
• Width (in.): 26.5
• Depth (in.): 21
• Height (in.): 15.75
• Max. Wall Thickness (in.): 15.313
• Wall Cut-Out Width (in.): 27.25
• Wall Cut-Out Height (in.): 17.25
• Extension Into Room (Min)(in.): 7.5
• Extension Outside (Min.)(in.): 0.563
• Certifications: Energy Star, UL,CUL
• Plug Face (NEMA): 6-20P
• Circuit Breaker Size (Amps): 20
• Cord Length: 6'
• Wall Mounted: Yes
• Cooling Area/Room Size: 450
• WallMaster Series: Yes
• Volts: 240
• Other Options: 10,000 Btu
